Keysight (Agilent)

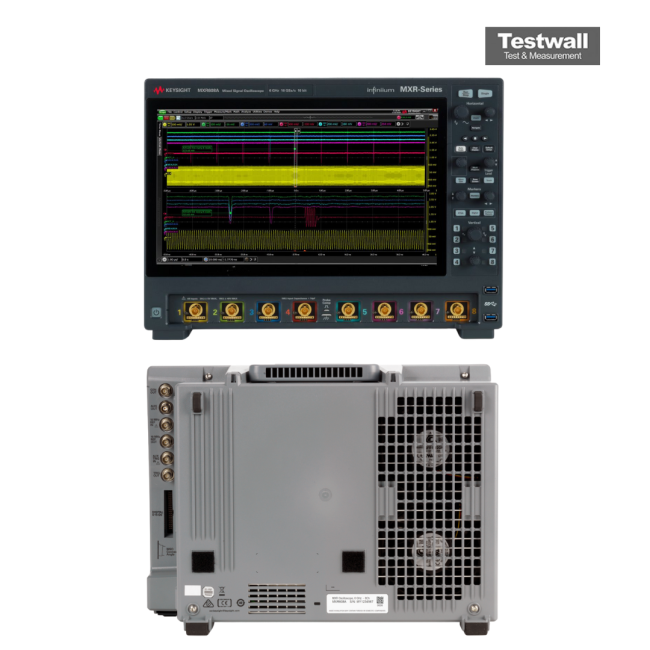

Keysight (Agilent) MXR608A
6GHz 8 Channel 16GS/s Digital Oscilloscope
6 GHz Bandwidth
8 Channels Number of Channels
16 GSa/s (per channel), 32 GSa/s (interleaved) Sample Rate
10-bit ADC (12-bit in high-resolution mode) Vertical Resolution
Up to 800 Mpts (standard), expandable options available Memory Depth
| Attribute | Value |
|---|---|
| Bandwidth | 6 GHz |
| Number of Channels | 8 Channels |
| Sample Rate | 16 GSa/s (per channel), 32 GSa/s (interleaved) |
| Vertical Resolution | 10-bit ADC (12-bit in high-resolution mode) |
| Memory Depth | Up to 800 Mpts (standard), expandable options available |
| Display | 15.6-inch capacitive touchscreen, 1920 x 1080 resolution |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Input Impedance | 50 Ω or 1 MΩ selectable |
| Operating System | Windows 10 IoT Enterprise |
| Connectivity | USB, LAN (LXI), GPIB (optional), PCIe |
| Model | MXR608A |
|---|
Keysight (Agilent) MXR608A 6GHz 8 Channel 16GS/s Digital Oscilloscope Description: 6 GHz Bandwidth 8 Analog Channels 16 Digital Channels Vertical Resolution: 10 bits (up to 16 Bits with high resolution) 16 GSa/s Maximum Sample Rate 200 Mpts/channel of Standard Memory Integrated 4-digit DVM & 10-digit counter The Keysight MXR804A is an 8 Channel 6GHz Analog Bandwidth Infiniium MXR-Series oscilloscope with a maximum sample rate of 16GSa/s. The MXR804A features a 15.6闁艰鲸绮忛崜楣冩 full HD touch screen display with dual screen support. The Infiniium MXR-Series offers up to 6 GHz bandwidth and 16 GSa/s sample rate on each channel (four and eight channel versions are available). An integrated 4 digit DVM and 10 digit counter are installed as standard. Retrofittable options are available to extend the capabilites of the MXR804A even further, including: - Add 1.6Gpts / channel 闁艰鲸绮忛崜鍓ф尒鐎涘窅exible闁艰鲸绮忛崜鐐▕ Memory - Add Real Time Spectrum Analyzer - Extend RF Frequency to 6GHz - Add 50MHz Waveform Generator - Add 16 Digital Channels
