Tektronix

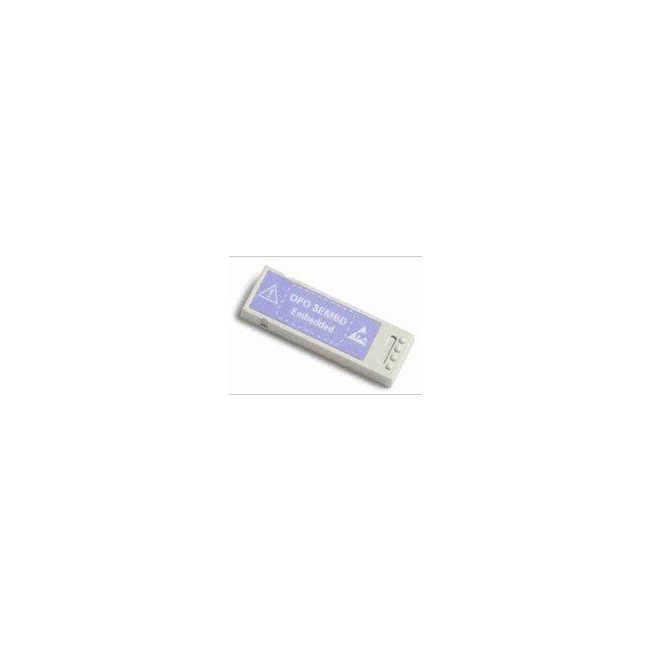

Tektronix DPO3EMBD
Embedded Serial Triggering and Analysis Module
Tektronix DPO3000 Series Compatible Oscilloscope Series
I2C, SPI Supported Serial Bus Standards
Application Module / License Key Module Type
I2C and SPI serial bus triggering Triggering Capability
Automated bus decoding and packet-level decode display for I2C and SPI Decode Capability
| Attribute | Value |
|---|---|
| Compatible Oscilloscope Series | Tektronix DPO3000 Series |
| Supported Serial Bus Standards | I2C, SPI |
| Module Type | Application Module / License Key |
| Triggering Capability | I2C and SPI serial bus triggering |
| Decode Capability | Automated bus decoding and packet-level decode display for I2C and SPI |
| Search and Mark | Automated search across acquired waveform data for I2C and SPI bus events |
| Installation Method | Software application module installed via front-panel module slot or license |
| Display Format | Bus waveform view with symbolic decode and event table |
| Compatibility Requirement | Requires DPO3000 Series oscilloscope with current firmware |
| Standards Compliance | Supports standard I2C (100 kHz, 400 kHz, 1 MHz) and SPI protocol variants |
Tektronix DPO3EMBD Options:
- DPO3EMBD - DPO3AERO - Aerospace Serial Triggering and Analysis Module. Enables triggering on packet-level information on MIL-STD-1553 buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time-stamp information.
- DPO3EMBD - DPO3AUDIO - Audio Serial Triggering and Analysis Module. Enables triggering on packet-level information on I2S, Left Justified, Right Justified, TDM, and custom audio buses, as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- DPO3EMBD - DPO3AUTO - Automotive Serial Triggering and Analysis Module. Enables triggering on packet-level information on CAN bus and LIN bus as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- DPO3EMBD - DPO3COMP - Computer Serial Triggering and Analysis Module. Enables triggering on packet-level information on RS-232/422/485/UART buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- DPO3EMBD - DPO3FLEX - FlexRay Serial Triggering and Analysis Module. Enables triggering on packet-level information on FlexRay buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, packet decode tables with time-stamp information.
- DPO3EMBD - DPO3PWR - Power Analysis Module. Enables quick and accurate analysis of power quality, switching loss, harmonics, safe operating area (SOA), modulation, ripple, and slew rate (dI/dt, dV/dt).
- DPO3EMBD - DPO3VID - HDTV and Custom (nonstandard) Video Triggering Module.
- DPO3EMBD - DPO3BW1T32 - Bandwidth upgrade from 100 MHz to 300 MHz for an MSO/DPO3012
- DPO3EMBD - DPO3BW1T34 - Bandwidth upgrade from 100 MHz to 300 MHz for an MSO/DPO3014
- DPO3EMBD - DPO3BW1T52 - Bandwidth upgrade from 100 MHz to 500 MHz for an MSO/DPO3012
- DPO3EMBD - DPO3BW1T54 - Bandwidth upgrade from 100 MHz to 500 MHz for an MSO/DPO3014
- DPO3EMBD - DPO3BW3T52 - Bandwidth upgrade from 300 MHz to 500 MHz for an MSO/DPO3012 or an MSO/DPO3032
- DPO3EMBD - DPO3BW3T54 - Bandwidth upgrade from 300 MHz to 500 MHz for an MSO/DPO3014 or an MSO/DPO3034
- DPO3EMBD - Opt. A0 - North America power plug (115 V, 60 Hz)
- DPO3EMBD - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- DPO3EMBD - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- DPO3EMBD - Opt. A3 - Australia power plug (240 V, 50 Hz)
- DPO3EMBD - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- DPO3EMBD - Opt. A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- DPO3EMBD - Opt. A10 - China power plug (50 Hz)
- DPO3EMBD - Opt. A11 - India power plug (50 Hz)
- DPO3EMBD - Opt. A12 - Brazil power plug (60 Hz)
- DPO3EMBD - Opt. A99 - No power cord
- DPO3EMBD - Opt. L0 - English manual
- DPO3EMBD - Opt. L1 - French manual
- DPO3EMBD - Opt. L2 - Italian manual
- DPO3EMBD - Opt. L3 - German manual
- DPO3EMBD - Opt. L4 - Spanish manual
- DPO3EMBD - Opt. L5 - Japanese manual
- DPO3EMBD - Opt. L6 - Portuguese manual
- DPO3EMBD - Opt. L7 - Simplified Chinese manual
- DPO3EMBD - Opt. L8 - Traditional Chinese manual
- DPO3EMBD - Opt. L9 - Korean manual
- DPO3EMBD - Opt. L10 - Russian manual
- DPO3EMBD - Opt. L99 - No manual
- DPO3EMBD - Opt. CA1 - Single Calibration or Functional Verification
- DPO3EMBD - Opt. D1 - Calibration Data Report
- DPO3EMBD - Opt. R5 - Repair Service 5 Years (including warranty)
- DPO3EMBD - Opt. SILV400 - Standard warranty extended to 5 years
- DPO3EMBD - TAP1500 - 1.5 GHz TekVPI active voltage probe
- DPO3EMBD - TAP1500X2 - Bundle of two 1.5 GHz active probes, single ended with TekVPI interface
- DPO3EMBD - TCP0030 - 120 MHz TekVPI 30 Ampere AC/DC current probe
- DPO3EMBD - TCP0150 - 20 MHz TekVPI 150 Ampere AC/DC current probe
- DPO3EMBD - TCPA300/400 - Current measurement systems amplifier
- DPO3EMBD - TDP0500 - 500 MHz TekVPI differential voltage probe with ±42 V differential input voltage
- DPO3EMBD - TDP1000 - 1 GHz TekVPI differential voltage probe with ±42 V differential input voltage
- DPO3EMBD - TMDP0200 - ±750 V, 200 MHz high-voltage differential probe
- DPO3EMBD - THDP0200 - ±1.5 kV, 200 MHz high-voltage differential probe
- DPO3EMBD - THDP0100 - ±6 kV, 100 MHz high-voltage differential probe
- DPO3EMBD - P5100A - 2.5 kV, 100X high-voltage passive probe
- DPO3EMBD - P5200 - 1.3 kV, 25 MHz high-voltage differential probe
- DPO3EMBD - P5205 - 1.3 kV, 100 MHz high-voltage differential probe
| Model | DPO3EMBD |
|---|
The Tektronix DPO3EMBD module integrates advanced I²C and SPI protocol triggering and analysis directly into DPO/MSO3000 oscilloscopes. It supports up to 10 Mb/s data rates and includes trigger options like start/stop, address match, data content, and parity errors. No external hardware is needed—just plug it into the oscilloscope’s slot.
This module enhances signal clarity with live decoding, timestamped event tables, and customizable search filters to streamline debugging and data analysis.
Testwall can supply the used Tektronix DPO3EMBD, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO3EMBD.
