Tektronix P6015
| Attribute | Value |
|---|---|
| Bandwidth | 75 MHz |
| Maximum Input Voltage | 20 kV DC + Peak AC (40 kV Peak Pulse, ≤ 100 ms Duration) |
| Attenuation Ratio | 1000X |
| Rise Time | 4.7 ns |
| Input Resistance | 100 MΩ |
| Input Capacitance | 3 pF |
| Compensation Range | 10 pF to 40 pF |
| Cable Length | 3 m (9.8 ft) |
| Connector Type | BNC |
| Operating Temperature Range | 0°C to +50°C |
| Model | P6015 |
|---|

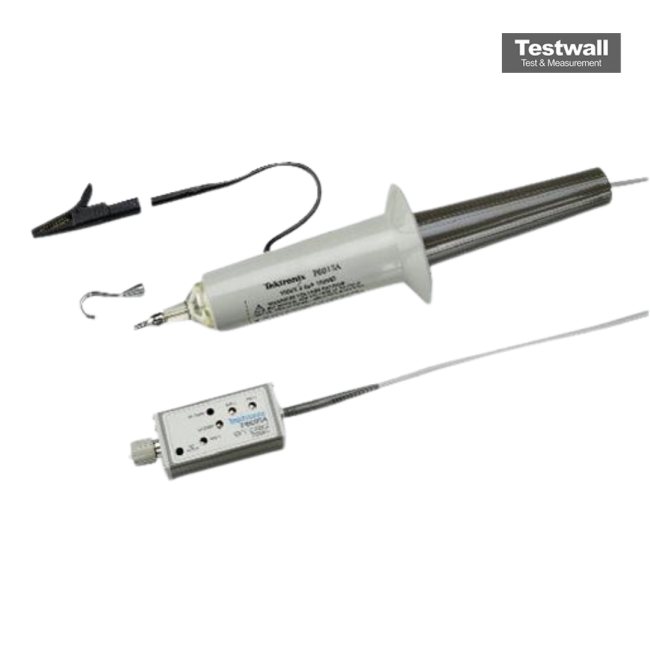

The Tektronix P6015 is a high-voltage oscilloscope probe offering 1000x attenuation with a frequency range of DC to 75 MHz. It is compatible with scopes having 1 MΩ input resistance paralleled by 12–60 pF. It handles up to 13 kV (without dielectric fluid) and improves dielectric performance when filled with fluorocarbon gas.
Designed with high-impact thermoplastic for safety, it includes a 10-foot cable with a resistive center conductor and a compensating box. Calibration should be done between 20–30°C.
Testwall can supply the used Tektronix P6015, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6015.
