Tektronix DPO3FLEX
FlexRay Serial Triggering and Analysis Module
Flexible bandwidth upgrade capable (up to 300 MHz) Bandwidth
4 analog input channels Channels
2.5 GS/s Sample Rate
5 M points standard Record Length
8-bit resolution Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | Flexible bandwidth upgrade capable (up to 300 MHz) |
| Channels | 4 analog input channels |
| Sample Rate | 2.5 GS/s |
| Record Length | 5 M points standard |
| Vertical Resolution | 8-bit resolution |
| Display | 9-inch WVGA color display |
| Waveform Capture Rate | Up to 50,000 waveforms per second |
| Serial Bus Analysis | Supports I2C, SPI, CAN, LIN, RS-232/422/485/UART (optional) |
| Connectivity | USB host and device ports, CompactFlash slot |
| Integrated Instruments | Integrated arbitrary/function generator and digital voltmeter (optional modules) |
| Model | DPO3FLEX |
|---|

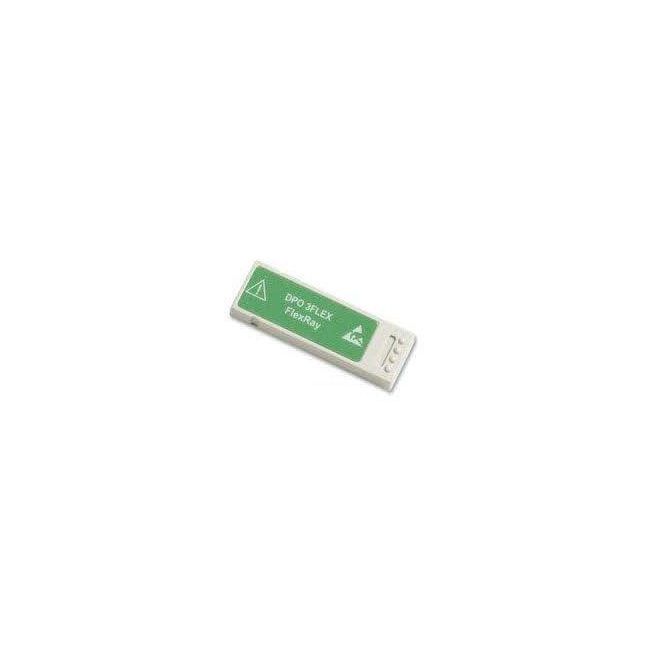

The Tektronix DPO3FLEX is a FlexRay protocol module for DPO/MSO3000-series oscilloscopes, providing detailed analysis with frame-level triggering, error detection, and real-time decoding. It supports SOF, EOF, ID/payload, and CRC-based triggers with data export capability.
This module allows deep diagnostics through timestamped logs, searchable capture buffers, and seamless UI integration—ideal for automotive and embedded applications.
Testwall can supply the used Tektronix DPO3FLEX, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO3FLEX.
