Tektronix

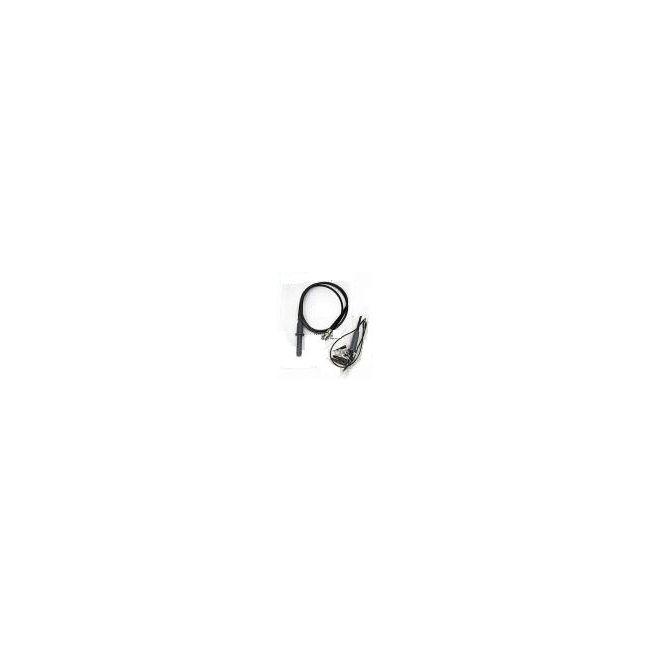

Tektronix P6006
75 MHz Bandwidth
10X Attenuation
10 MΩ Input Resistance
13 pF Input Capacitance
600 V CAT II (DC + Peak AC) Maximum Input Voltage
| Attribute | Value |
|---|---|
| Bandwidth | 75 MHz |
| Attenuation | 10X |
| Input Resistance | 10 MΩ |
| Input Capacitance | 13 pF |
| Maximum Input Voltage | 600 V CAT II (DC + Peak AC) |
| Cable Length | 1.2 m (4 ft) |
| Rise Time | 4.7 ns |
| Connector Type | BNC |
| Compensation Range | 10 pF to 35 pF |
| Compatible Oscilloscopes | Tektronix oscilloscopes with BNC input connector |
| Model | P6006 |
|---|
The Tektronix P6006 is a general-purpose passive probe engineered for oscilloscopes ranging from DC to 33 MHz, with compatibility for input capacitances of 15 pF to 47 pF and resistance of 1 MΩ.
With 10x attenuation and minimized resistive and capacitive loading, the P6006 ensures accurate signal transmission across various Tektronix scopes and plug-ins.
Testwall can supply the used Tektronix P6006, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6006.
