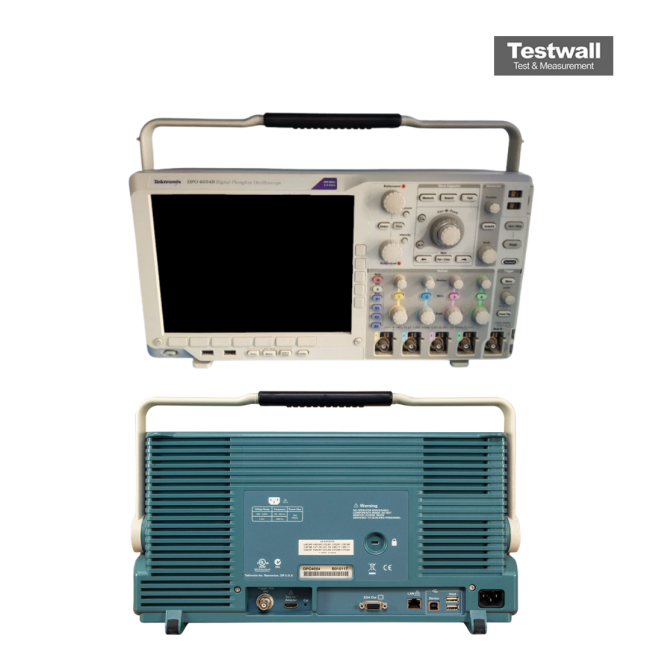

Tektronix DPO4054B
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 |
| Sample Rate | 2.5 GS/s |
| Record Length | 20 M points |
| Vertical Resolution | 8-bit (11-bit with Hi Res mode) |
| Rise Time | 700 ps |
| Display | 10.4 inch (264 mm) WVGA color display |
| Waveform Capture Rate | Up to 340,000 waveforms per second |
| Input Impedance | 1 MΩ or 50 Ω |
| Connectivity | USB, Ethernet (LAN), GPIB (optional) |
Tektronix DPO4054B Options:
Options available for the Tektronix DPO/MSO4000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DPO4054B - DPO4AERO - Aerospace serial triggering and analysis (MIL-STD-1553)
- DPO4054B - DPO4AUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- DPO4054B - DPO4AUTO - Automotive serial triggering and analysis (CAN, LIN)
- DPO4054B - DPO4AUTOMAX - Extended automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DPO4054B - DPO4COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DPO4054B - DPO4EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DPO4054B - DPO4ENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- DPO4054B - DPO4USB - USB 2.0 serial triggering and analysis
- DPO4054B - DPO4LMT - Limit and mask testing
- DPO4054B - DPO4PWR - Power measurement and analysis
- DPO4054B - DPO4VID - Extended video triggering
- DPO4054B - DPO4BND - Application bundle (all DPO4 serial, power, limit/mask and video modules)
The Tektronix DPO4054B is a 4-channel Digital Phosphor Oscilloscope with a 500 MHz bandwidth and 2.5 GS/s sample rate, enabling precise capture of fast signal transitions. It supports analysis of up to 20 analog and digital signals, features 20M record length on all channels, a waveform capture rate exceeding 50,000 wfm/s, advanced triggering, and a 10.4-inch XGA display.
Equipped with Wave Inspector controls, serial/parallel bus analysis, and power analysis, the DPO4054B streamlines debugging and signal visualization. USB ports support storage and connectivity tasks.
Testwall can supply the used Tektronix DPO4054B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO4054B.
