Keysight (Agilent)

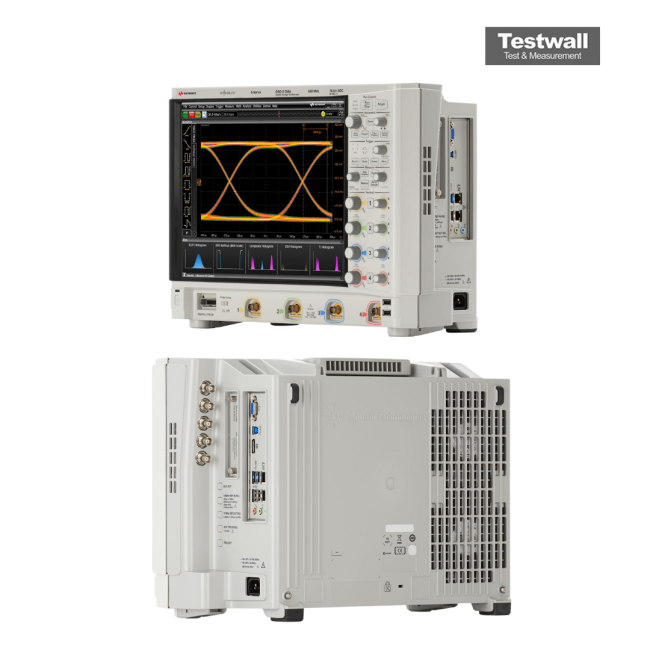

Keysight (Agilent) DSOS054A
4 Ch 500 MHz Digital Sampling Oscilloscope
500 MHz Bandwidth
4 Analog Channels Number of Channels
20 GSa/s Sample Rate
800 Mpts (standard), up to 2 Gpts (optional) Memory Depth
8-bit (up to 10-bit in high resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 Analog Channels |
| Sample Rate | 20 GSa/s |
| Memory Depth | 800 Mpts (standard), up to 2 Gpts (optional) |
| Vertical Resolution | 8-bit (up to 10-bit in high resolution mode) |
| Display | 12.1-inch capacitive touch screen, 1280 x 800 resolution |
| Waveform Update Rate | 1,000,000 waveforms per second |
| Trigger Types | Edge, Glitch, Pattern, TV, Delay, Timeout, Runt, Transition, Window, Serial |
| Connectivity | USB, LAN (LXI), GPIB (optional), DisplayPort |
| Operating System | Windows 10 embedded |
Keysight Technologies DSOS054A Options:
- DSOS054A - DSOS000-100 - Increase acquisition memory to 100 Mpts x 4 channels, 200 Mpts x 2 channels
- DSOS054A - DSOS000-200 - Increase acquisition memory to 200 Mpts x 4 channels, 400 Mpts x 2 channels
- DSOS054A - DSOS000-400 - Increase acquisition memory to 400 Mpts x 4 channels, 800 Mpts x 2 channels
- DSOS054A - DSOS8GBW - Upgrade to 8 GHz bandwidth
- DSOS054A - DSOS6GBW - Upgrade to 6 GHz bandwidth
- DSOS054A - DSOS4GBW - Upgrade to 4 GHz bandwidth
- DSOS054A - DSO2G5BW - Upgrade to 2.5 GHz bandwidth
- DSOS054A - DSOS2GBW - Upgrade to 2 GHz bandwidth
- DSOS054A - DSOS1GBW - Upgrade to 1 GHz bandwidth
- DSOS054A - DSOS000-A6J - ANSI Z540 compliant calibration
| Model | DSOS054A |
|---|
The Keysight DSOS054A is a 500 MHz oscilloscope with 4 channels, 20 GSa/s (2 ch), 800 Mpts memory (2 ch), and 10-bit ADC for high fidelity.
Offers 860 ps rise time, ENOB >8, touch display, advanced probing support, and fast I/O with USB 3.0 and Ethernet up to 200 MB/s.
Testwall can supply the used Keysight Technologies DSOS054A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight Technologies DSOS054A.
