Tektronix

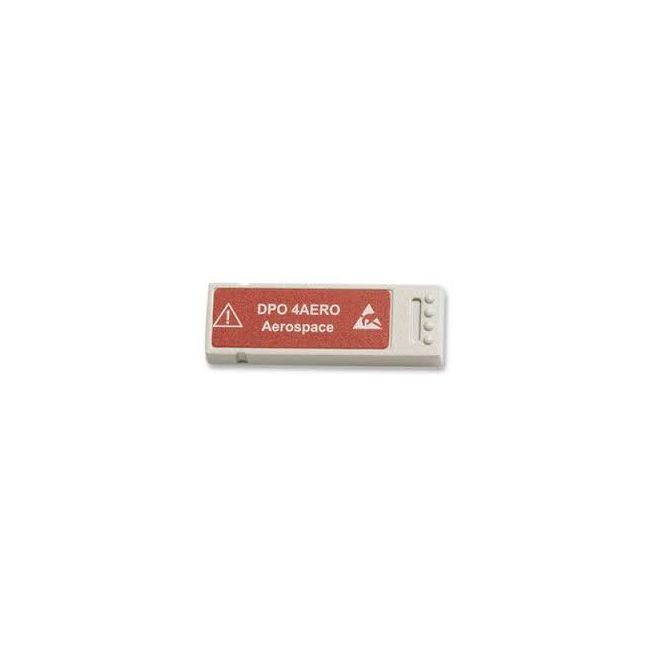

Tektronix DPO4AERO
Aerospace Serial Triggering and analysis Module
DPO4000, MSO4000 Series Compatible Oscilloscope Series
Aerospace Serial Bus Triggering and Analysis Application Type
MIL-STD-1553, ARINC 429 Supported Bus Standards
Trigger on specific bus conditions, words, errors, and labels Triggering Capability
Color-coded bus waveform overlays with decoded packet data Decode Display
| Attribute | Value |
|---|---|
| Compatible Oscilloscope Series | DPO4000, MSO4000 Series |
| Application Type | Aerospace Serial Bus Triggering and Analysis |
| Supported Bus Standards | MIL-STD-1553, ARINC 429 |
| Triggering Capability | Trigger on specific bus conditions, words, errors, and labels |
| Decode Display | Color-coded bus waveform overlays with decoded packet data |
| Search Functionality | Automated search and mark across acquisition for specific bus events |
| Data Logging | Bus activity logging to CSV file for offline analysis |
| License Type | Application Module (hardware key required, installs directly on oscilloscope) |
| Error Detection | Detects and highlights protocol errors and violations on supported buses |
| Packet View | Tabular packet decode view with timestamp, label, data, and status fields |
| Model | DPO4AERO |
|---|
The Tektronix DPO4AERO application module enables advanced MIL‑STD‑1553 analysis on MSO/DPO4000-series oscilloscopes. It supports dual-redundant A/B busses, packet-level triggering, live decode overlays, deep capture search, and CSV export of decoded messages.
Engineers can decode and analyze avionics bus data in real time using analog, reference, or math channels—no additional hardware needed.
Testwall can supply the used Tektronix DPO4AERO, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO4AERO.
