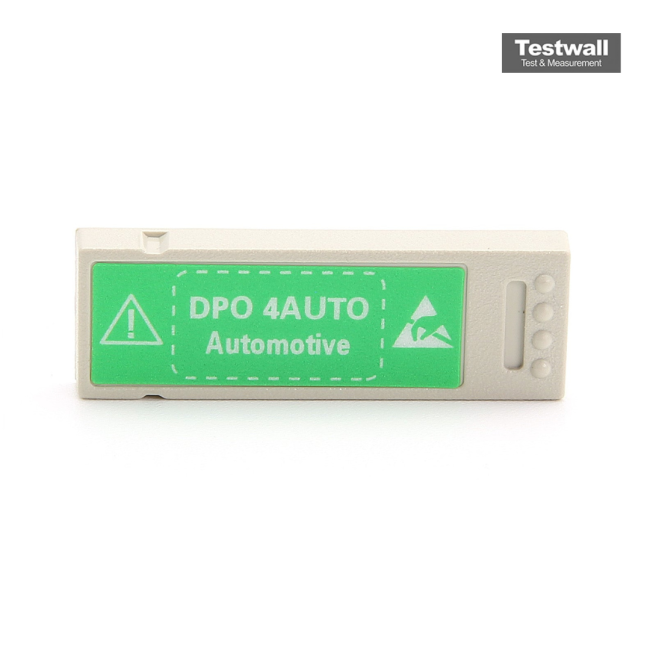

Tektronix DPO4AUTO
Automotive Serial Triggering and Analysis Module, CAN, LIN
Tektronix DPO4000, MSO4000 Series Compatible Oscilloscope Series
CAN, LIN Supported Protocols
Automotive Serial Bus Triggering and Analysis Module Application Type
Up to 1 Mb/s CAN Bus Bit Rate
Up to 20 kb/s LIN Bus Bit Rate
| Attribute | Value |
|---|---|
| Compatible Oscilloscope Series | Tektronix DPO4000, MSO4000 Series |
| Supported Protocols | CAN, LIN |
| Application Type | Automotive Serial Bus Triggering and Analysis Module |
| CAN Bus Bit Rate | Up to 1 Mb/s |
| LIN Bus Bit Rate | Up to 20 kb/s |
| Trigger Capabilities | Trigger on CAN/LIN frames, error conditions, specific IDs, and data fields |
| Decode Display | Color-coded bus waveform overlay with symbolic decode of packet data |
| Search Functionality | Automated search across acquired data for user-defined CAN/LIN events |
| Module Form Factor | Application module (plug-in) for DPO4000/MSO4000 front panel slot |
| Standards Compliance | CAN ISO 11898, LIN Specification 1.3, 2.0, 2.1 |
| Model | DPO4AUTO |
|---|
The Tektronix DPO4AUTO module enables CAN, CAN FD, and LIN protocol analysis with packet-level triggering, real-time decode, and deep capture search in Tektronix DPO/MSO4000 oscilloscopes.
It provides live timestamped event decoding, error flag detection, CSV export, and seamless integration into existing UI using analog or digital inputs.
Testwall can supply the used Tektronix DPO4AUTO, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO4AUTO.
