Tektronix

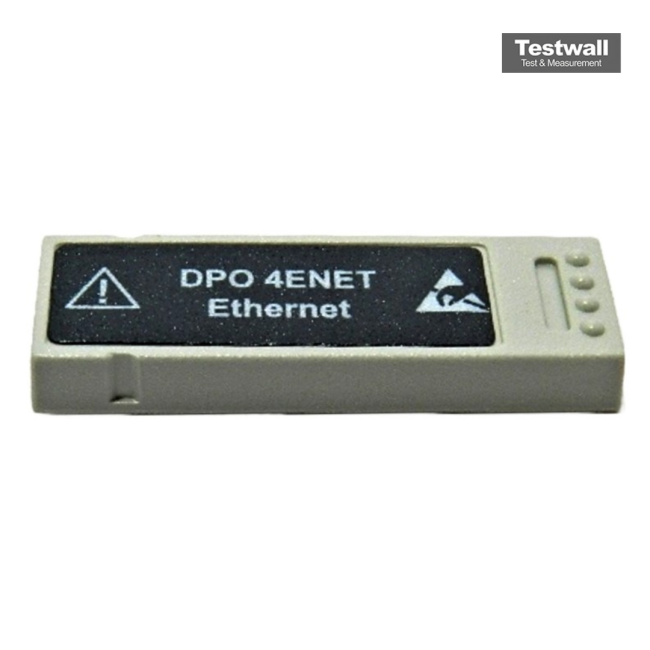

Tektronix DPO4ENET
Ethernet Serial Triggering and Analysis Module, 10BASE-T, 100BASE-TX
DPO4000, MSO4000 Series Compatible Oscilloscope Series
Ethernet Serial Trigger and Analysis Module Module Type
10BASE-T, 100BASE-TX (Fast Ethernet) Supported Standards
Trigger on Ethernet frame fields including Start of Frame, MAC Address, IP Address, Data, and End of Frame Triggering Capability
Physical layer decoding and packet-level decode of Ethernet frames Decoding Capability
| Attribute | Value |
|---|---|
| Compatible Oscilloscope Series | DPO4000, MSO4000 Series |
| Module Type | Ethernet Serial Trigger and Analysis Module |
| Supported Standards | 10BASE-T, 100BASE-TX (Fast Ethernet) |
| Triggering Capability | Trigger on Ethernet frame fields including Start of Frame, MAC Address, IP Address, Data, and End of Frame |
| Decoding Capability | Physical layer decoding and packet-level decode of Ethernet frames |
| Search Functionality | Automated search across acquired waveform for user-defined Ethernet packet fields |
| Interface Connection | Installs directly into application module slot on compatible oscilloscope |
| Packet Decode Display | Color-coded bus overlay showing decoded Ethernet packet data on oscilloscope display |
| Eye Diagram Analysis | Supports physical layer eye diagram measurements for signal integrity analysis |
| Operating Temperature | 0°C to +50°C |
| Model | DPO4ENET |
|---|
The Tektronix DPO4ENET module enhances DPO/MSO4000 series oscilloscopes with advanced Ethernet analysis for 10/100/1000Base-T. It supports real-time decoding, protocol triggering on MAC/VLAN/IP, and timing analysis with precise frame and event capture. Export options include PCAP, CSV, and TXT.
Ideal for diagnosing link-layer issues, timing discrepancies, and verifying Ethernet protocol compliance across embedded and network systems.
Testwall can supply the used Tektronix DPO4ENET, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO4ENET.
