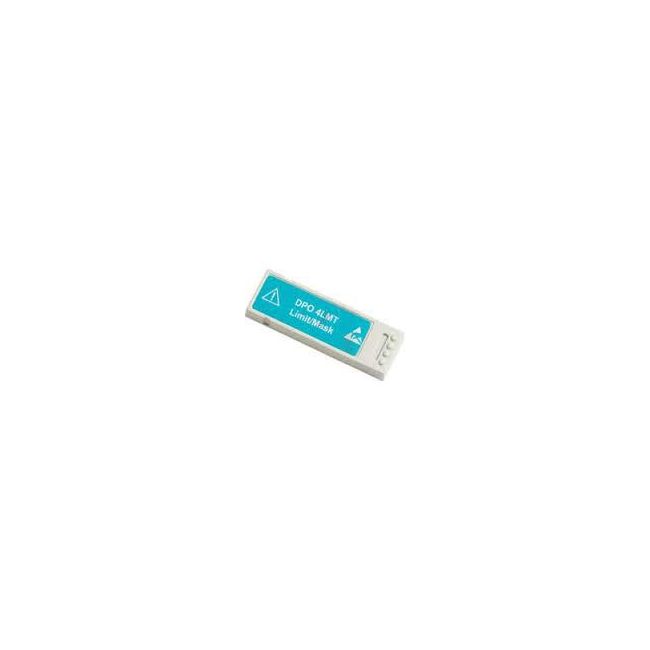

Tektronix DPO4LMT
| Attribute | Value |
|---|---|
| Compatible Series | DPO4000, MSO4000 Series Oscilloscopes |
| Module Type | Limit and Mask Testing Application Module |
| Mask Testing Standards | Supports industry-standard communication masks including RS-232, USB, CAN, LIN, and custom user-defined masks |
| Limit Testing | Allows comparison of live waveforms against reference waveforms with user-defined tolerance envelopes |
| Pass/Fail Testing | Automated pass/fail testing with configurable actions on failure including stop, beep, print, and save |
| Custom Mask Creation | Users can create and edit custom masks directly on the oscilloscope display |
| Hit Count Display | Displays the number of waveform violations (hits) within defined mask regions |
| Installation Method | Application key installed directly into the oscilloscope via front-panel USB port or rear-panel option key |
| License Type | Perpetual license, instrument-based (non-transferable between units) |
| Waveform Database Integration | Utilizes oscilloscope's waveform database (WfmDB) for enhanced mask hit detection and statistical analysis |
Tektronix DPO4LMT Options:
- MDO4000C - SA3 - Spectrum Analyzer, 9 kHz–3 GHz frequency range
- MDO4000C - SA6 - Spectrum Analyzer, 9 kHz–6 GHz frequency range
- MDO4000C - MDO4AFG - Integrated Arbitrary Function Generator (Optional)
- MDO4000C - MDO4MSO - Logic Analyzer, 16 digital channels (Optional)
- MDO4000C - MDO4TRIG - Advanced RF Triggering application module (Optional)
- MDO4000C - DPO4EMBD - Serial Protocol Triggering and Analysis for I2C and SPI
- MDO4000C - DPO4COMP - Serial Protocol Triggering and Analysis for RS-232/422/485, UART
- MDO4000C - DPO4USB - Serial Protocol Triggering and Analysis for USB LS, FS, HS
- MDO4000C - DPO4ENET - Serial Protocol Triggering and Analysis for Ethernet 10Base-T, 100Base-TX
- MDO4000C - DPO4AUTO - Serial Protocol Triggering and Analysis for CAN and LIN
- MDO4000C - DPO4AUTOMAX - Serial Protocol Triggering and Analysis for CAN, LIN, and FlexRay
- MDO4000C - DPO4AERO - Serial Protocol Triggering and Analysis for MIL-STD-1553
- MDO4000C - DPO4AUDIO - Serial Protocol Triggering and Analysis for I2S, LJ, RJ, TDM Audio
- MDO4000C - TPA-N-VPI - Adapter enabling active 50 Ω TekVPI probes to connect to the RF input (Optional)
- MDO4000C - TPA-N-PRE - Preamplifier accessory, 12 dB nominal gain, 9 kHz–6 GHz (Optional)
| Model | DPO4LMT |
|---|
The Tektronix DPO4LMT is a Limit and Mask Test application module for DPO/MSO/MDO4000-series oscilloscopes. It automates pass/fail waveform testing by comparing signals to golden waveforms or user-defined masks. It includes over 40 industry-standard masks like ITU-T, ANSI, USB 2.0 HS, with up to 8 customizable segments, and supports test runs by count or time, detailed violation reporting, and automated test responses.
Ideal for compliance, diagnostics, or manufacturing, it provides rapid, high-volume testing of signal integrity with flexible configuration options and fast execution.
Testwall can supply the used Tektronix DPO4LMT, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO4LMT
