Tektronix P7513
| Attribute | Value |
|---|---|
| Bandwidth | 12.5 GHz |
| Rise Time | 28 ps |
| Probe Type | TriMode Differential Probe |
| Input Voltage Range (Differential) | ±8 V |
| Input Voltage Range (Common Mode) | ±12 V |
| Attenuation Ratio | 10X |
| Input Impedance | 100 kΩ (DC), 0.7 pF |
| Compatible Oscilloscopes | Tektronix TDS/CSA/DSA/DPO Series with TekConnect Interface |
| Cable Length | 1.2 m (approximately 4 ft) |
| Operating Temperature | 0°C to +50°C |
Tektronix P7513 Options:
- P7513 - Opt. L5 - User Manual in Japanese
- P7513 - Opt. L7 - User Manual in Simplified Chinese
- P7513 - CA1 - A single calibration event or coverage for the designated calibration interval, whichever comes first
- P7513 - C3 - Calibration Service 3 years
- P7513 - C5 - Calibration Service 5 years
- P7513 - D3 - Calibration Data Report 3 years (with Option C3)
- P7513 - D5 - Calibration Data Report 5 years (with Option C5)
- P7513 - R3 - Repair Service 3 years
- P7513 - R5 - Repair Service 5 years
- P7513 - R1PW - Repair service coverage 1 year post warranty
- P7513 - R2PW - Repair service coverage 2 year post warranty
- P7513 - R3PW - Repair service coverage 3 years (includes product warranty period). 3-year period starts at time of customer instrument purchase
- P7513 - R5PW - Repair service coverage 5 years (includes product warranty period). 5-year period starts at time of customer instrument purchase
| Model | P7513 |
|---|

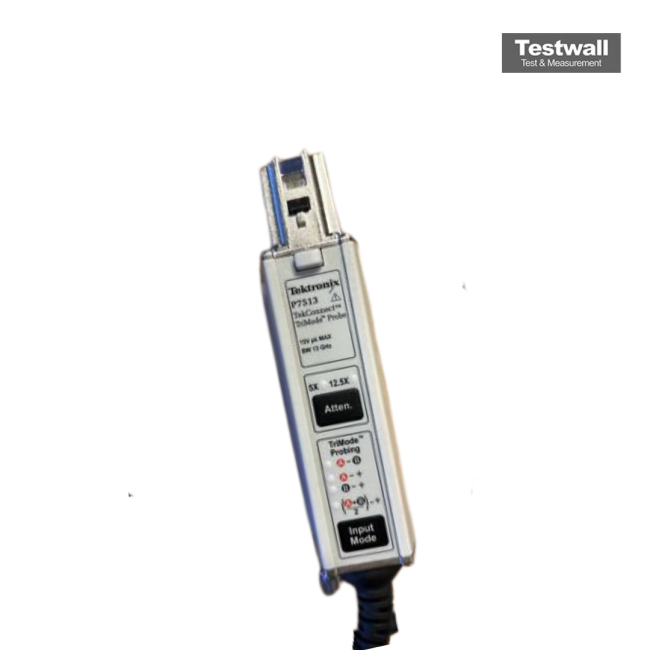

The Tektronix P7513 TriMode Differential Probe delivers superior signal fidelity with high bandwidth and minimal DUT loading, thanks to its innovative differential architecture based on IBM SiGe technology. It enables seamless switching between differential, single-ended, and common-mode measurements without disconnecting the probe. Long Reach Solder Tips (P75TLRST) provide flexible access for board-to-board signal testing and are easily replaceable.
With one-time setup and probe configuration switching, the P7513 enhances measurement efficiency and connectivity for demanding real-time oscilloscope applications.
Testwall can supply the used Tektronix P7513, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P7513.
