Tektronix DPO4PWR
| Attribute | Value |
|---|---|
| Compatible Oscilloscopes | Tektronix DPO4000, MSO4000 Series |
| Number of Automated Power Measurements | Over 30 automated power measurements |
| Input Voltage Range | Up to 1000 V RMS (with appropriate probes) |
| Current Measurement Support | AC/DC current measurements via compatible current probes |
| Power Analysis Types | Switching loss, harmonics, ripple, modulation, safe operating area (SOA), di/dt, dv/dt |
| Harmonic Analysis Standard | IEC 61000-3-2 standard compliance testing support |
| Application Module Type | Software application module (plug-in key) |
| Display Output | Results displayed directly on oscilloscope screen with tabular and waveform views |
| Included Probes | One TMDP0200 differential voltage probe and one TCP0030A current probe included |
| Interface/Installation | Application key module inserted directly into oscilloscope front-panel application module slot |
Tektronix DPO4PWR Options:
- DPO4PWR - 067-1686-xx - Deskew fixture
- DPO4PWR - TEK-DPG - Deskew pulse generator
| Model | DPO4PWR |
|---|

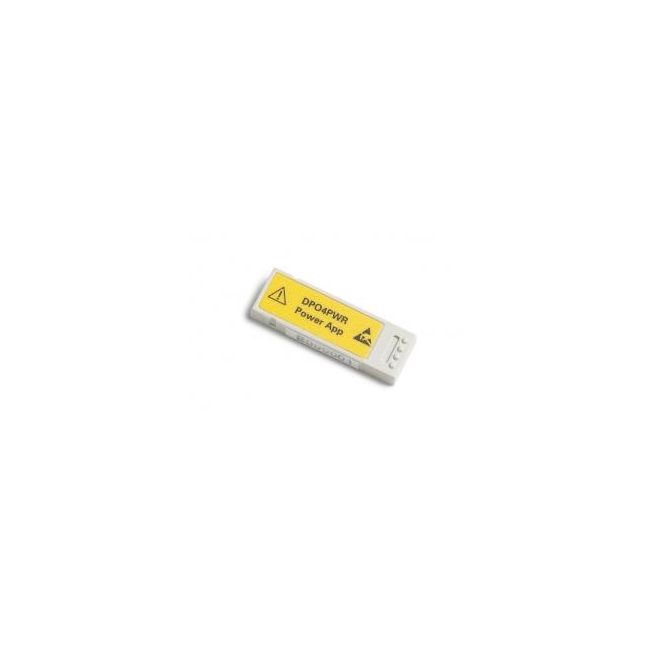

The Tektronix DPO4PWR module enhances DPO/MSO/MDO4000-series oscilloscopes into precise power analysis instruments. It supports switching loss measurement, power quality testing, ripple analysis, and harmonic evaluation. With SOA plots, dV/dt & dI/dt analysis, deskew functionality, and CSV data export, it ensures comprehensive power diagnostics.
Ideal for evaluating power efficiency, modulation patterns, and compliance with IEC/MIL standards, this module requires compatible probes and integrates via a single application bay.
Testwall can supply the used Tektronix DPO4PWR, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO4PWR.
