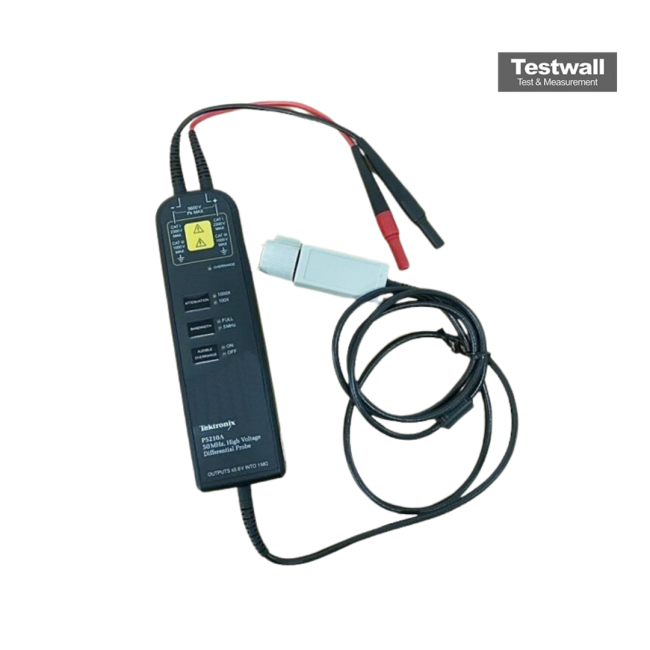

Tektronix P5210A
| Attribute | Value |
|---|---|
| Bandwidth | 50 MHz (–3 dB) |
| Attenuation Ratio | 100X / 1000X (switchable) |
| Input Voltage Range | ±1300 V DC + Peak AC (100X); ±13,000 V DC + Peak AC (1000X) |
| Maximum Input Voltage | 1300 V RMS (CAT II), 5600 V Peak |
| Rise Time | ≤7 ns |
| Input Impedance | 40 MΩ in parallel with 7 pF |
| Output Impedance | 50 Ω coaxial cable |
| Common Mode Rejection Ratio (CMRR) | >80 dB at 60 Hz; >60 dB at 1 MHz |
| Cable Length | 1.2 m (4 ft) |
| Safety Rating | IEC 61010-1, CAT II 1300 V; CAT III 600 V |
Tektronix P5210A Options:
- P5210A - C3 - Calibration Service 3 Years
- P5210A - C5 - Calibration Service 5 Years
- P5210A - D1 - Calibration Data Report
- P5210A - D3 - Calibration Data Report 3 Years (with Opt. C3)
- P5210A - D5 - Calibration Data Report 5 Years (with Opt. C5)
- P5210A - R3 - Repair Service 3 Years (including warranty)
- P5210A - R5 - Repair Service 5 Years (including warranty)
- P5210A - SILV200 - Standard warranty extended to 5 years
| Model | P5210A |
|---|
The Tektronix P5210A is a high-voltage active differential probe with bandwidth up to 200 MHz, ±6000 V differential voltage range, and ±2300 V common mode voltage. It includes features such as switchable attenuation, bandwidth limit, and overrange indicators for safe and precise measurements.
Designed for floating and high-voltage applications like motor drives, CRTs, and power converters. Equipped with a TekProbe® interface for smart oscilloscope communication and enhanced safety.
Testwall can supply the used Tektronix P5210A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P5210A.
