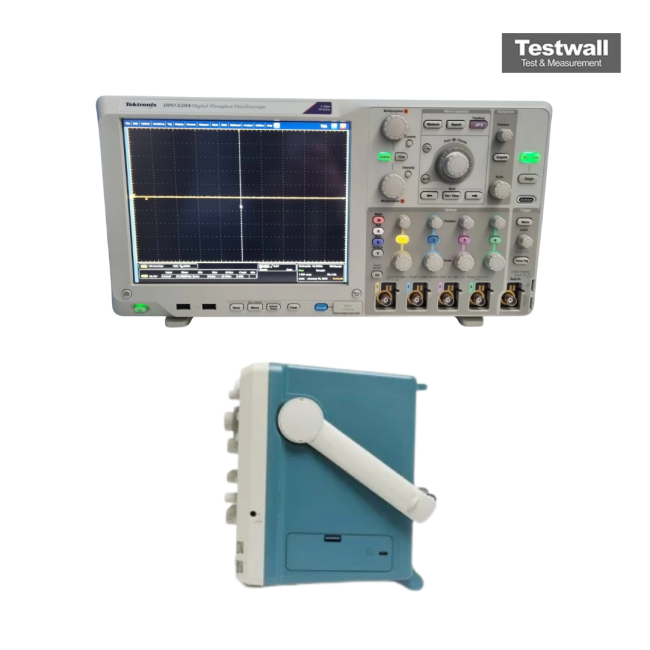

Tektronix DPO5204B
| Attribute | Value |
|---|---|
| Bandwidth | 2 GHz |
| Number of Channels | 4 Analog Channels |
| Sample Rate | 10 GS/s (all channels simultaneous) |
| Record Length | 25 M points standard (125 M points optional) |
| Vertical Resolution | 8-bit (11-bit with Hi Res mode) |
| Rise Time | 175 ps |
| Display | 10.4-inch (264 mm) color TFT LCD touchscreen |
| Waveform Capture Rate | Up to 340,000 waveforms per second |
| Input Impedance | 1 MΩ or 50 Ω selectable |
| Connectivity & Interface | USB, LAN (LXI), VGA, GPIB (optional) |
Tektronix DPO5204B 2GHz 10GS/s 4 Channel Digital Phosphor Scope Options:
- DPO5204B - 10RL - Record Length 250 M Max, 125 M/Ch
- DPO5204B - 5RL - Record Length 125 M Max, 50 M/Ch
- DPO5204B - BRR - Broadr-Reach/100Base-T1 Compliance Testing
- DPO5204B - DDRA - Ddr Memory Bus Analysis
- DPO5204B - DJA - Jitter And Eye Analysis Tools 鈥 Advanced
- DPO5204B - DJAN - Dpojet Noise, Jitter, And Eye Analysis Tools
- DPO5204B - ET3 - Ethernet Compliance Test
- DPO5204B - MOST - Most Essentials 鈥 Electrical Compliance And Debug Test Solution For Most50 And Most150
- DPO5204B - MTM - Mask Testing
- DPO5204B - PWR - Power Measurement And Analysis
- DPO5204B - SR-AERO - Aerospace Serial Triggering And Analysis
- DPO5204B - SR-AUTO - Automotive Serial Triggering And Analysis
- DPO5204B - SR-COMP - Computer Serial Triggering And Analysis
- DPO5204B - SR-DPHY - Mipi D-Phy Serial Analysis
- DPO5204B - SR-EMBD - Embedded Serial Triggering And Analysis
- DPO5204B - SR-ENET - Ethernet Serial Triggering And Analysis
- DPO5204B - SR-USB - Usb 2.0 Serial Triggering And Analysis
- DPO5204B - SSD - Additional Customer-Installable Removable Solid State Drive
- DPO5204B - SV26 - Apco P25 Measurements
- DPO5204B - SVA - Am/Fm/Pm Audio Signal Analysis
- DPO5204B - SVE - Vector Signal Analysis Software
- DPO5204B - SVM - General Purpose Modulation Analysis
- DPO5204B - SVP - Advanced Signal Analysis
- DPO5204B - SVT - Frequency And Phase Settling Time Measurements
- DPO5204B - USB2 - Usb 2.0 Automated Compliance Test Application
- DPO5204B - USBPWR - Automated Compliance Test Solution For Usb Power Adapters
| Model | DPO5204B |
|---|
The Tektronix DPO5204B 2GHz 10GS/s 4 Channel Digital Phosphor Scope offers a 2GHz analog bandwidth, four analog input channels, and a sampling rate of up to 10GS/s. It comes with a 25M record length memory across all four channels and features a bright 10.4-inch XGA touchscreen display for clear waveform analysis.
Ideal for high-speed signal analysis, the DPO5204B provides precise waveform capture, deep memory depth, and a responsive interface for demanding electronic testing environments.
Testwall can supply the used Tektronix DPO5204B 2GHz 10GS/s 4 Channel Digital Phosphor Scope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO5204B 2GHz 10GS/s 4 Channel Digital Phosphor Scope.
