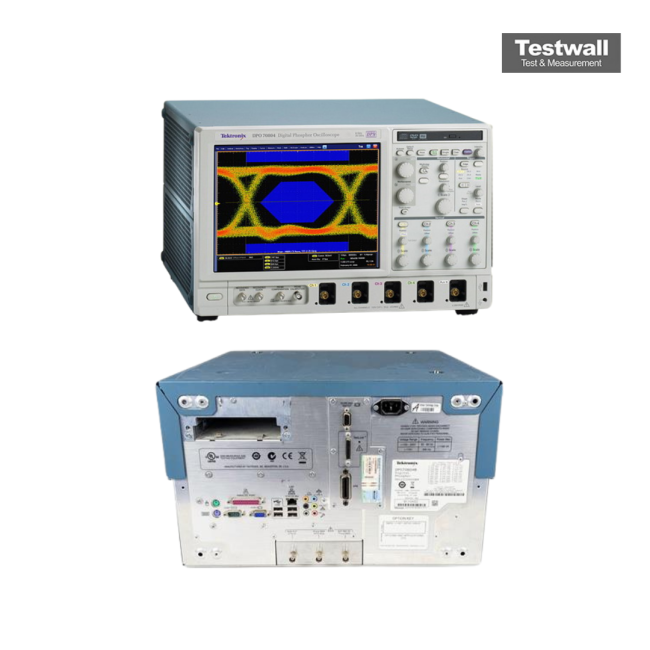

Tektronix DPO70604B
| Attribute | Value |
|---|---|
| Bandwidth | 6 GHz |
| Number of Channels | 4 |
| Sample Rate | 25 GS/s on all channels simultaneously |
| Record Length | Up to 250 Mpoints |
| Rise Time | 58.3 ps |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Waveform Capture Rate | Up to 300,000 waveforms per second |
| Input Impedance | 50 Ω and 1 MΩ |
| Time Base Accuracy | ±1 ppm |
| Display | 15.3-inch XGA color display (1024 x 768 resolution) |
Tektronix DPO70604B 4 Channel 6GHz DPO Scope Options:
- DPO70604B - 10XL - 100 Msamples/Ch
- DPO70604B - 20XL - 250 Msamples/Ch
- DPO70604B - 2XL - 20 Msamples/Ch
- DPO70604B - 5XL - 50 Msamples/Ch
- DPO70604B - ASM - Advanced Event Search And Mark
- DPO70604B - DDRA - Ddr Memory Bus Analysis
- DPO70604B - DJA - Dpojet Jitter And Eye Diagram Analysis
- DPO70604B - DSPT - Displayport Compliance Test Solution
- DPO70604B - DVI - Dvi Compliance Test Solution
- DPO70604B - ET3 - Ethernet Compliance Test Software
- DPO70604B - FBD - Fb-Dimm Compliance Module For Rt-Eye Serial Data Compliance And Analysis Software
- DPO70604B - HT3 - Hdmi Compliance Test Software
- DPO70604B - IBA - Infiniband Compliance Module For Rt-Eye Serial Data Compliance And Analysis Software
- DPO70604B - LT - Waveform Limit Testing
- DPO70604B - MTH - Mask Testing For Serial Standards Up To 4.25 Gbps. Includes
- HARDWARE CLOCK RECOVERY.
- DPO70604B - PCE - Pci Express Analysis Software
- DPO70604B - PTH - Protocol Triggering And Decoding For 8B/10B-Encoded Serial
- SIGNALS UP TO 3.125 GBPS.
- DPO70604B - PTU - Protocol Triggering And Decoding For 8B/10B-Encoded Serial
- SIGNALS UP TO 5 GBPS.
- DPO70604B - PWR - Power Measurement And Analysis Software
- DPO70604B - RTE - Serial Data Compliance And Analysis Software
- DPO70604B - SLA - Serial Data Link Analysis Advanced (With Equalization)
- DPO70604B - SLE - Serial Data Link Analysis Essentials (No Equalization)
- DPO70604B - SST - Sata And Sas Analysis Software Module For Rt-Eye Serial Data Compliance And Analysis Software
- DPO70604B - STU - Protocol Triggering And Decoding For 8B/10B-Encoded Serial Signals Up To 5 Gbps.
- DPO70604B - SVE - Signalvu Essentials 鈥 Vector Signal Analysis Software
- DPO70604B - SVM - General Purpose Modulation Analysis. (Requires Option Sve)
- DPO70604B - SVP - Advanced Signal Analysis (Including Pulse Measurements). (Requires Option Sve)
- DPO70604B - USB2 - Usb 2.0 Compliance Test Software Only
- DPO70604B - USB3 - Usb 3.0 Compliance And Analysis Software
| Model | DPO70604B |
|---|
The Tektronix DPO70604B 4-Channel 6GHz DPO Oscilloscope delivers exceptional performance in real-time signal acquisition and analysis, featuring advanced digital phosphor technology. Its high bandwidth supports challenging signal integrity verification, characterization, debugging, and testing of sophisticated electronic designs. With a large display and intuitive user interface, engineers can easily access detailed measurements and analysis for maximum efficiency.
Ideal for high-speed serial design work, the DPO70604B offers unmatched debugging tools, operational simplicity, and precision specifications. It is optimized for capturing complex signals with clarity and speed to meet demanding engineering needs.
Testwall can supply the used Tektronix DPO70604B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO70604B.
