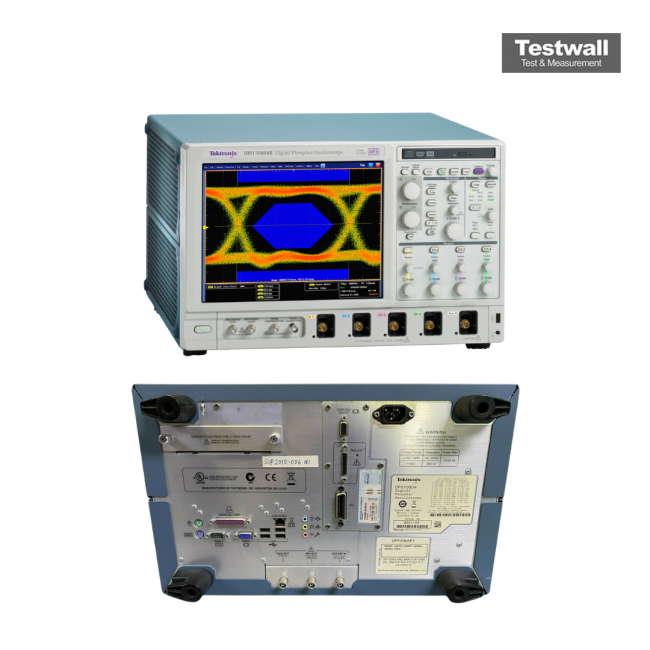

Tektronix DPO70804B
| Attribute | Value |
|---|---|
| Bandwidth | 8 GHz |
| Sample Rate | 25 GS/s on all channels simultaneously |
| Number of Channels | 4 |
| Record Length | Up to 250 Mpoints |
| Vertical Resolution | 8-bit (up to 11-bit with Hi Res mode) |
| Rise Time | 52.5 ps |
| Input Impedance | 50 Ω or 1 MΩ |
| Waveform Capture Rate | Up to 300,000 waveforms per second |
| Display | 15.3-inch XGA color display |
| Operating System | Windows 7 Professional (64-bit) |
Tektronix DPO70804B 4 Channel 6GHz DPO Scope Options:
- DPO70804B - 10XL - 100 Msamples/Ch
- DPO70804B - 20XL - 250 Msamples/Ch
- DPO70804B - 2XL - 20 Msamples/Ch
- DPO70804B - 5XL - 50 Msamples/Ch
- DPO70804B - ASM - Advanced Event Search And Mark
- DPO70804B - DDRA - Ddr Memory Bus Analysis
- DPO70804B - DJA - Dpojet Jitter And Eye Diagram Analysis
- DPO70804B - DSPT - Displayport Compliance Test Solution
- DPO70804B - DVI - Dvi Compliance Test Solution
- DPO70804B - ET3 - Ethernet Compliance Test Software
- DPO70804B - FBD - Fb-Dimm Compliance Module For Rt-Eye Serial Data Compliance And Analysis Software
- DPO70804B - HT3 - Hdmi Compliance Test Software
- DPO70804B - IBA - Infiniband Compliance Module For Rt-Eye Serial Data Compliance And Analysis Software
- DPO70804B - LT - Waveform Limit Testing
- DPO70804B - MTH - Mask Testing For Serial Standards Up To 4.25 Gbps. Includes
- HARDWARE CLOCK RECOVERY.
- DPO70804B - PCE - Pci Express Analysis Software
- DPO70804B - PTH - Protocol Triggering And Decoding For 8B/10B-Encoded Serial
- SIGNALS UP TO 3.125 GBPS.
- DPO70804B - PTU - Protocol Triggering And Decoding For 8B/10B-Encoded Serial
- SIGNALS UP TO 5 GBPS.
- DPO70804B - PWR - Power Measurement And Analysis Software
- DPO70804B - RTE - Serial Data Compliance And Analysis Software
- DPO70804B - SLA - Serial Data Link Analysis Advanced (With Equalization)
- DPO70804B - SLE - Serial Data Link Analysis Essentials (No Equalization)
- DPO70804B - SST - Sata And Sas Analysis Software Module For Rt-Eye Serial Data Compliance And Analysis Software
- DPO70804B - STU - Protocol Triggering And Decoding For 8B/10B-Encoded Serial Signals Up To 5 Gbps.
- DPO70804B - SVE - Signalvu Essentials 鈥 Vector Signal Analysis Software
- DPO70804B - SVM - General Purpose Modulation Analysis. (Requires Option Sve)
- DPO70804B - SVP - Advanced Signal Analysis (Including Pulse Measurements). (Requires Option Sve)
- DPO70804B - USB2 - Usb 2.0 Compliance Test Software Only
- DPO70804B - USB3 - Usb 3.0 Compliance And Analysis Software
The Tektronix DPO70804B 4 Channel 8GHz Digital Phosphor Scope delivers advanced waveform acquisition and analysis with four channels and 8 GHz bandwidth. Its Digital Phosphor technology offers exceptional signal visibility, real-time waveform capture rates, and deep memory for comprehensive high-speed signal analysis.
Ideal for high-speed serial data analysis, jitter characterization, and compliance testing, it features advanced triggering, automated measurement functions, and precise signal integrity verification.
Testwall can supply the used Tektronix DPO70804B 4 Channel 8GHz Digital Phosphor Scope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO70804B 4 Channel 8GHz Digital Phosphor Scope.
