Tektronix

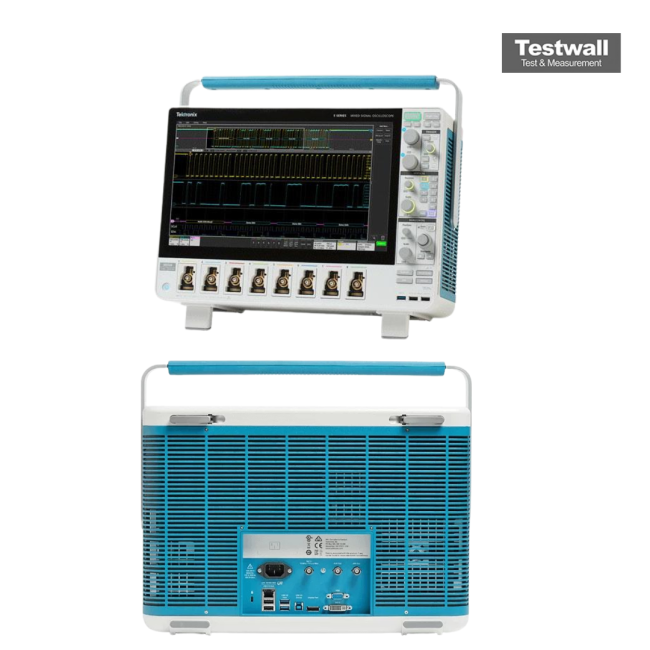

Tektronix MSO54 5-BW-1000 5 Series MDO 4 Channel Mixed Domain Oscilloscope, 1 GHz
000 5 Series MDO 4 Channel Mixed Domain Oscilloscope, 1 GHz
1 GHz Bandwidth
4 Analog Channels Number of Channels
6.25 GS/s Sample Rate
31.25 M points standard (up to 62.5 M points with option) Record Length
12-bit ADC (up to 16-bit with High Res mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Channels | 4 Analog Channels |
| Sample Rate | 6.25 GS/s |
| Record Length | 31.25 M points standard (up to 62.5 M points with option) |
| Vertical Resolution | 12-bit ADC (up to 16-bit with High Res mode) |
| Rise Time | 350 ps |
| Display | 15.6-inch HD (1920 x 1080) capacitive touchscreen |
| Input Impedance | 1 MΩ and 50 Ω |
| Time Base Range | 1 ns/div to 1000 s/div |
| Connectivity | USB 3.0, USB 2.0, DisplayPort, LAN (LXI), e*Scope (Web-based remote control) |
Tektronix MSO54 5-BW-1000 5 Series MDO 4 Channel Mixed Domain Oscilloscope, 1 GHz Options:
- MSO54 - 5-BW-350 - 350 MHz bandwidth
- MSO54 - 5-BW-500 - 500 MHz bandwidth
- MSO54 - 5-BW-1000 - 1 GHz bandwidth
- MSO54 - 5-BW-2000 - 2 GHz bandwidth
- MSO54 - 5-RL-125M - Extend record length to 125 Mpoints/channel
- MSO54 - 5-WIN - Add removable SSD with Microsoft Windows 10 operating system license
- MSO54 - 5-AFG - Add Arbitrary / Function Generator
- MSO54 - 5-SEC - Add enhanced security for instrument declassification and password protected enabling and disabling of all USB and Ethernet ports and firmware upgrade
- MSO54 - 5-SRAERO - Aerospace serial triggering and analysis (MIL-STD-1553, ARINC 429)
- MSO54 - 5-SRAUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- MSO54 - 5-SRAUTO - Automotive serial triggering and analysis (CAN, CAN FD, LIN, FlexRay, and CAN symbolic decoding)
- MSO54 - 5-SRAUTOSEN - Automotive sensor serial triggering and analysis (SENT)
- MSO54 - 5-SRCOMP - Computer serial triggering and analysis (RS-232/422/485/UART)
- MSO54 - 5-SREMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO54 - 5-SRENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- MSO54 - 5-SRI3C - MIPI I3C (I3C decode and search only)
- MSO54 - 5-SRPM - Power Management serial triggering and analysis (SPMI)
- MSO54 - 5-SRUSB2 - USB (USB2.0 LS, FS, HS) serial triggering and analysis
- MSO54 - 5-CMAUTOEN - Automotive Ethernet automated compliance test solution (100BASE-T1 and 1000BASE-T1)
- MSO54 - 5-CMENET - Ethernet automated compliance test solution (10BASE-T/100BASE-T/1000BASE-T)
- MSO54 - 5-CMUSB2 - USB2.0 automated compliance test solution
- MSO54 - 5-DJA - Advanced Jitter and Eye Analysis
- MSO54 - 5-PWR - Power Measurement and Analysis
- MSO54 - 5-DPM - Digital Power Management
- MSO54 - 5-PS2 - Power Solution Bundle (5-PWR, THDP0200, TCP0030A, 067-1686-xx deskew fixture)
- MSO54 - 5-PS2FRA - Power Solution Bundle (5-PWR, THDP0200, TCP0030A, two TPP0502, 067-1686-xx deskew fixture)
- MSO54 - A0 - North America power plug (115 V, 60 Hz)
- MSO54 - A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO54 - A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO54 - A3 - Australia power plug (240 V, 50 Hz)
- MSO54 - A5 - Switzerland power plug (220 V, 50 Hz)
- MSO54 - A6 - Japan power plug (100 V, 50/60 Hz)
- MSO54 - A10 - China power plug (50 Hz)
- MSO54 - A11 - India power plug (50 Hz)
- MSO54 - A12 - Brazil power plug (60 Hz)
- MSO54 - A99 - No power cord
- MSO54 - T3 - Three Year Total Protection Plan
- MSO54 - T5 - Five Year Total Protection Plan
- MSO54 - R5 - Standard Warranty Extended to 5 Years
- MSO54 - C3 - Calibration service 3 Years
- MSO54 - C5 - Calibration service 5 Years
- MSO54 - D1 - Calibration Data Report
- MSO54 - D3 - Calibration Data Report 3 Years (with Option C3)
- MSO54 - D5 - Calibration Data Report 5 Years (with Option C5)
| Model | MSO54 |
|---|
The Tektronix MSO54B:5-BW-1000 is a 4-channel 5 Series B MSO oscilloscope with 1 GHz bandwidth, 6.25 GS/s sample rate, and a 62.5 Mpoint record length. Its 15.6-inch HD display, 12-bit ADC resolution, and >500,000 waveforms/s capture rate offer excellent signal visibility. It includes USB, LAN, DisplayPort, VGA, and remote control via browser.
Ideal for embedded systems, power electronics, automotive and converter testing. Includes 1GHz TPP1000 probes and is equipped for deep diagnostics and system debugging.
Testwall can supply the used Tektronix MSO54B:5-BW-1000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO54B:5-BW-1000.
