Tektronix DPO71254DX
| Attribute | Value |
|---|---|
| Bandwidth | 12.5 GHz |
| Sample Rate | 100 GS/s |
| Number of Channels | 4 Analog Channels |
| Record Length | Up to 250 Mpoints |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Rise Time | 28 ps |
| Waveform Capture Rate | 300,000 waveforms/second |
| Input Impedance | 50 Ω and 1 MΩ |
| Display | 15.3-inch XGA Color LCD Display |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
Tektronix DPO71254DX Options:
Options available for the Tektronix DPO/DSA/MSO70000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DPO71254DX - 2XL - Extended record length
- DPO71254DX - 5XL - Extended record length
- DPO71254DX - 10XL - Extended record length
- DPO71254DX - 20XL - Extended record length
- DPO71254DX - 50XL - Extended record length
- DPO71254DX - DJA - DPOJET advanced jitter and eye diagram analysis (standard on DSA models)
- DPO71254DX - DJAN - DPOJET jitter and noise analysis
- DPO71254DX - SDLA64 - Serial data link analysis (equalization, de-embedding)
- DPO71254DX - DDRA - DDR memory bus analysis
- DPO71254DX - ST6G - 6.25 Gb/s serial pattern trigger
- DPO71254DX - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DPO71254DX - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DPO71254DX - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DPO71254DX - SR-USB - USB 2.0 serial triggering and analysis
- DPO71254DX - SR-PCIE - PCI Express serial analysis
- DPO71254DX - SR-810B - 8b/10b serial analysis
- DPO71254DX - MTH - Mask testing
- DPO71254DX - LT - Limit testing
- DPO71254DX - VET - Visual trigger
- DPO71254DX - ASM - Advanced search and mark

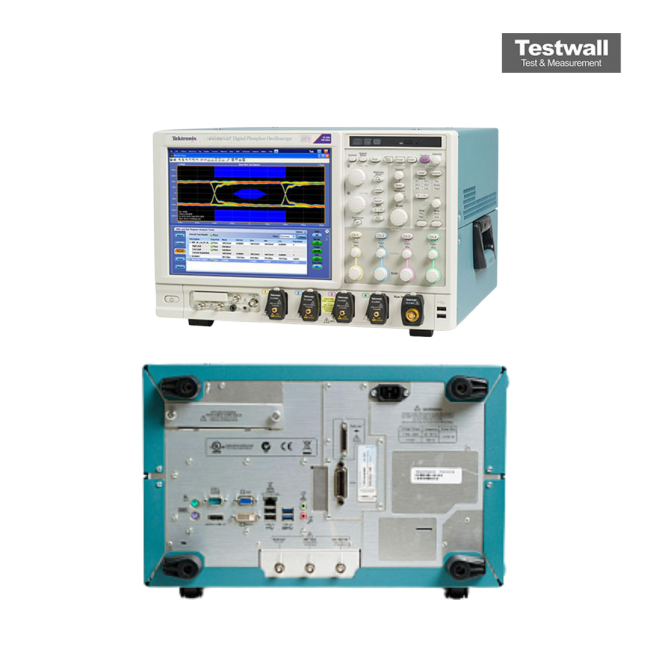

The Tektronix DPO71254DX 4 Channel 12.5GHz 100GS/s Oscilloscope delivers exceptional performance with a 12.5GHz bandwidth and a remarkable 100GS/s real-time sampling rate across its 4 analog channels. Designed for high-speed signal analysis, it features advanced triggering, deep memory capabilities, and superior signal fidelity, enabling engineers to accurately capture, measure, and analyze complex waveforms with precision.
Ideal for high-performance applications, it excels in debugging, validation, and compliance testing for high-speed digital designs, RF systems, and cutting-edge research environments requiring ultra-precise waveform analysis.
Testwall can supply the used Tektronix DPO71254DX 4 Channel 12.5GHz 100GS/s Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO71254DX 4 Channel 12.5GHz 100GS/s Oscilloscope.
