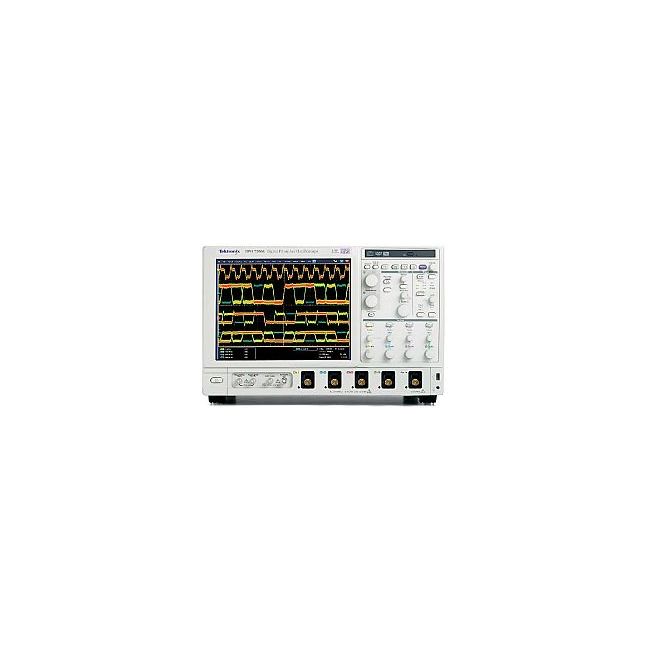

Tektronix DPO71604
| Attribute | Value |
|---|---|
| Bandwidth | 16 GHz |
| Number of Channels | 4 |
| Sample Rate | 50 GS/s on 1 or 2 channels; 25 GS/s on 3 or 4 channels |
| Record Length | Up to 250 Mpoints per channel |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Rise Time | 21.9 ps (typical) |
| Input Impedance | 50 Ω or 1 MΩ |
| Waveform Capture Rate | Up to 300,000 waveforms per second |
| Display | 15.3-inch XGA color display |
| Operating System | Windows XP Professional |
Tektronix DPO71604 Options:
Options available for the Tektronix DPO/DSA/MSO70000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DPO71604 - 2XL - Extended record length
- DPO71604 - 5XL - Extended record length
- DPO71604 - 10XL - Extended record length
- DPO71604 - 20XL - Extended record length
- DPO71604 - 50XL - Extended record length
- DPO71604 - DJA - DPOJET advanced jitter and eye diagram analysis (standard on DSA models)
- DPO71604 - DJAN - DPOJET jitter and noise analysis
- DPO71604 - SDLA64 - Serial data link analysis (equalization, de-embedding)
- DPO71604 - DDRA - DDR memory bus analysis
- DPO71604 - ST6G - 6.25 Gb/s serial pattern trigger
- DPO71604 - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DPO71604 - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DPO71604 - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DPO71604 - SR-USB - USB 2.0 serial triggering and analysis
- DPO71604 - SR-PCIE - PCI Express serial analysis
- DPO71604 - SR-810B - 8b/10b serial analysis
- DPO71604 - MTH - Mask testing
- DPO71604 - LT - Limit testing
- DPO71604 - VET - Visual trigger
- DPO71604 - ASM - Advanced search and mark
The Tektronix DPO71604 is engineered for high-speed signal characterization, delivering 16 GHz analog bandwidth and 40 GS/s real-time sampling. With 250 Mpts memory per channel and precise jitter/timing measurement, it supports advanced digital standards and compliance for DisplayPort and HDMI.
Perfect for silicon validation and protocol conformance, the DPO71604 offers a powerful suite of debug tools to meet demanding design and analysis requirements.
Testwall can supply the used Tektronix DPO71604, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO71604.
