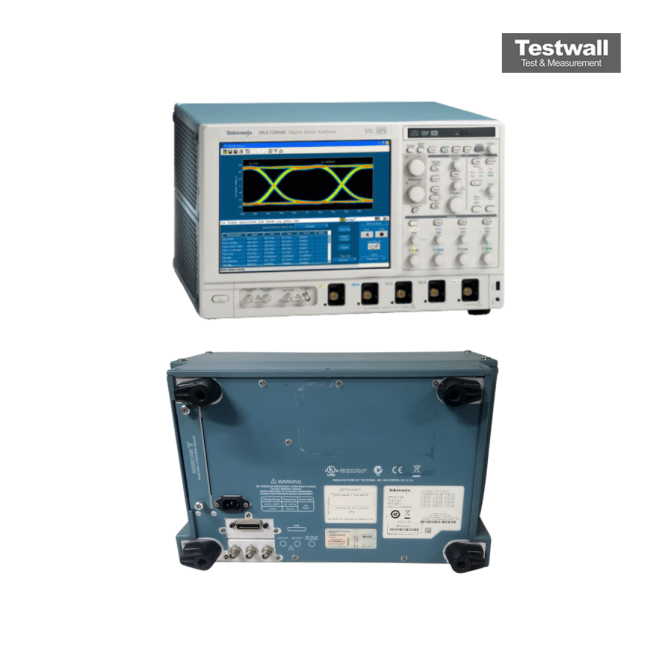

Tektronix DPO71604B
| Attribute | Value |
|---|---|
| Bandwidth | 16 GHz |
| Sample Rate | 50 GS/s on all channels simultaneously |
| Number of Channels | 4 |
| Record Length | Up to 250 Mpoints |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Rise Time | 21.8 ps (typical) |
| Input Impedance | 50 Ω or 1 MΩ |
| Time Base Accuracy | ±1 ppm over any ≥1 ms interval |
| Display | 15.3-inch (389 mm) XGA color display |
| Operating System | Windows 7 Professional (64-bit) |
Tektronix DPO71604B 4 Channel 6GHz DPO Scope Options:
- DPO71604B - 10XL - 100 Msamples/Ch
- DPO71604B - 20XL - 250 Msamples/Ch
- DPO71604B - 2XL - 20 Msamples/Ch
- DPO71604B - 5XL - 50 Msamples/Ch
- DPO71604B - ASM - Advanced Event Search And Mark
- DPO71604B - DDRA - Ddr Memory Bus Analysis
- DPO71604B - DJA - Dpojet Jitter And Eye Diagram Analysis
- DPO71604B - DSPT - Displayport Compliance Test Solution
- DPO71604B - DVI - Dvi Compliance Test Solution
- DPO71604B - ET3 - Ethernet Compliance Test Software
- DPO71604B - FBD - Fb-Dimm Compliance Module For Rt-Eye Serial Data Compliance And Analysis Software
- DPO71604B - HT3 - Hdmi Compliance Test Software
- DPO71604B - IBA - Infiniband Compliance Module For Rt-Eye Serial Data Compliance And Analysis Software
- DPO71604B - LT - Waveform Limit Testing
- DPO71604B - MTH - Mask Testing For Serial Standards Up To 4.25 Gbps. Includes
- HARDWARE CLOCK RECOVERY.
- DPO71604B - PCE - Pci Express Analysis Software
- DPO71604B - PTH - Protocol Triggering And Decoding For 8B/10B-Encoded Serial
- SIGNALS UP TO 3.125 GBPS.
- DPO71604B - PTU - Protocol Triggering And Decoding For 8B/10B-Encoded Serial
- SIGNALS UP TO 5 GBPS.
- DPO71604B - PWR - Power Measurement And Analysis Software
- DPO71604B - RTE - Serial Data Compliance And Analysis Software
- DPO71604B - SLA - Serial Data Link Analysis Advanced (With Equalization)
- DPO71604B - SLE - Serial Data Link Analysis Essentials (No Equalization)
- DPO71604B - SST - Sata And Sas Analysis Software Module For Rt-Eye Serial Data Compliance And Analysis Software
- DPO71604B - STU - Protocol Triggering And Decoding For 8B/10B-Encoded Serial Signals Up To 5 Gbps.
- DPO71604B - SVE - Signalvu Essentials 鈥 Vector Signal Analysis Software
- DPO71604B - SVM - General Purpose Modulation Analysis. (Requires Option Sve)
- DPO71604B - SVP - Advanced Signal Analysis (Including Pulse Measurements). (Requires Option Sve)
- DPO71604B - USB2 - Usb 2.0 Compliance Test Software Only
- DPO71604B - USB3 - Usb 3.0 Compliance And Analysis Software
The Tektronix DPO71604B offers 4 channels with a 16 GHz bandwidth and up to 50 GS/s sampling rate, delivering precise high-speed signal analysis. With advanced triggering, deep memory, and real-time analysis, it ensures unmatched accuracy for complex designs.
Ideal for high-speed serial data, RF, and optical testing, it supports protocol decoding and comprehensive jitter analysis for reliable design validation.
Testwall can supply the used Tektronix DPO71604B 4 Channel 16GHz 50GS/s DPO Scope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO71604B 4 Channel 16GHz 50GS/s DPO Scope.
