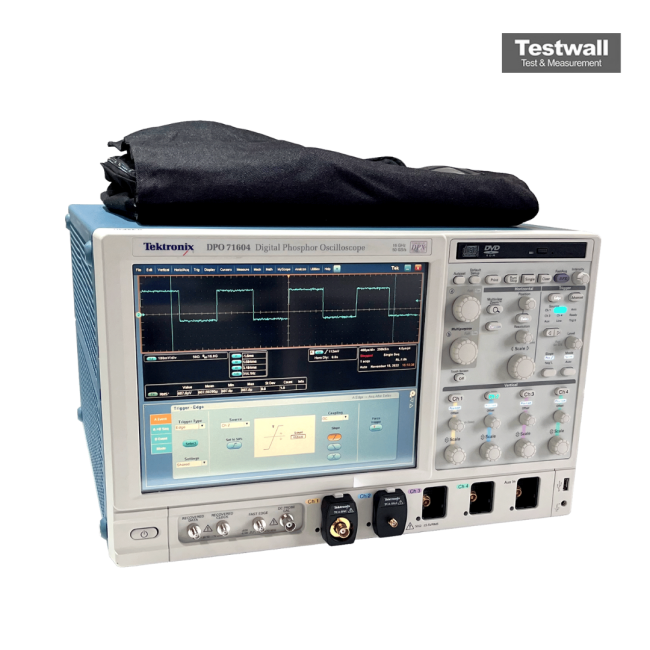

Tektronix DPO71604DX
| Attribute | Value |
|---|---|
| Bandwidth | 16 GHz |
| Sample Rate | 50 GS/s on all channels simultaneously |
| Number of Channels | 4 analog channels |
| Vertical Resolution | 8-bit (11-bit with Hi-Res mode) |
| Record Length | Up to 250 Mpoints per channel |
| Rise Time | 21.9 ps (typical) |
| Waveform Capture Rate | Up to 300,000 waveforms per second |
| Input Impedance | 50 Ω and 1 MΩ selectable |
| Time Base Accuracy | ±1 ppm over any ≥1 ms interval |
| Display | 15.4-inch (391 mm) TFT color display with 1680 x 1050 resolution |
Tektronix DPO71604DX Options:
Options available for the Tektronix DPO/DSA/MSO70000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DPO71604DX - 2XL - Extended record length
- DPO71604DX - 5XL - Extended record length
- DPO71604DX - 10XL - Extended record length
- DPO71604DX - 20XL - Extended record length
- DPO71604DX - 50XL - Extended record length
- DPO71604DX - DJA - DPOJET advanced jitter and eye diagram analysis (standard on DSA models)
- DPO71604DX - DJAN - DPOJET jitter and noise analysis
- DPO71604DX - SDLA64 - Serial data link analysis (equalization, de-embedding)
- DPO71604DX - DDRA - DDR memory bus analysis
- DPO71604DX - ST6G - 6.25 Gb/s serial pattern trigger
- DPO71604DX - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DPO71604DX - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DPO71604DX - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DPO71604DX - SR-USB - USB 2.0 serial triggering and analysis
- DPO71604DX - SR-PCIE - PCI Express serial analysis
- DPO71604DX - SR-810B - 8b/10b serial analysis
- DPO71604DX - MTH - Mask testing
- DPO71604DX - LT - Limit testing
- DPO71604DX - VET - Visual trigger
- DPO71604DX - ASM - Advanced search and mark
The Tektronix DPO71604DX is a 4-channel oscilloscope with an impressive 16GHz bandwidth and 100GS/s sample rate, delivering exceptional signal fidelity for advanced debugging and validation. It offers deep memory, advanced triggering, and real-time analysis capabilities, ensuring precise measurements for high-speed digital and RF applications.
Ideal for high-performance electronics testing, the DPO71604DX supports complex analysis of serial data, jitter, and RF signals, enabling engineers to capture, analyze, and validate signals with unmatched clarity.
Testwall can supply the used Tektronix DPO71604DX 4 Channel 16GHz 100GS/s Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO71604DX 4 Channel 16GHz 100GS/s Oscilloscope.
