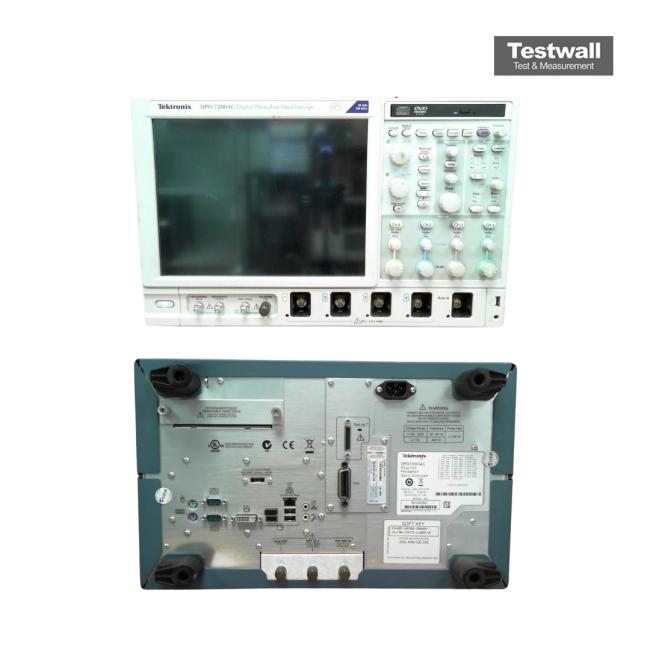

Tektronix DPO72004C
| Attribute | Value |
|---|---|
| Bandwidth | 20 GHz |
| Number of Channels | 4 |
| Sample Rate | 50 GS/s |
| Record Length | 250 Mpoints (standard), up to 2 Gpoints (optional) |
| Vertical Resolution | 8 bits (11 bits with Hi-Res mode) |
| Rise Time | 17.5 ps |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 15.3-inch color TFT LCD, 1024 x 768 resolution |
| Operating System | Windows 7 Professional (64-bit) |
| Connectivity | USB, LAN (LXI Core 2011), GPIB (optional), DisplayPort |
Tektronix DPO72004C Options:
Options available for the Tektronix DPO/DSA/MSO70000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DPO72004C - 2XL - Extended record length
- DPO72004C - 5XL - Extended record length
- DPO72004C - 10XL - Extended record length
- DPO72004C - 20XL - Extended record length
- DPO72004C - 50XL - Extended record length
- DPO72004C - DJA - DPOJET advanced jitter and eye diagram analysis (standard on DSA models)
- DPO72004C - DJAN - DPOJET jitter and noise analysis
- DPO72004C - SDLA64 - Serial data link analysis (equalization, de-embedding)
- DPO72004C - DDRA - DDR memory bus analysis
- DPO72004C - ST6G - 6.25 Gb/s serial pattern trigger
- DPO72004C - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DPO72004C - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DPO72004C - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DPO72004C - SR-USB - USB 2.0 serial triggering and analysis
- DPO72004C - SR-PCIE - PCI Express serial analysis
- DPO72004C - SR-810B - 8b/10b serial analysis
- DPO72004C - MTH - Mask testing
- DPO72004C - LT - Limit testing
- DPO72004C - VET - Visual trigger
- DPO72004C - ASM - Advanced search and mark
The Tektronix DPO72004C Oscilloscope features 20 GHz bandwidth across 4 channels, real-time sampling at 100 GS/s on 2 channels, and up to 500 MS record length. It offers outstanding signal integrity and advanced serial protocol analysis for various standards including PCIe, USB, and MIPI. Its Pinpoint® triggering, Visual Trigger, and iCapture® capabilities make signal identification fast and reliable.
Perfect for high-speed serial testing, RF applications, and mixed-signal debugging, the DPO72004C accelerates design validation with 6.25 Gb/s real-time serial triggering and over 300,000 wfms/s capture rate. It supports automated analysis and is compatible with TriMode™ probing systems.
Testwall can supply the used Tektronix DPO72004C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO72004C.
