Tektronix

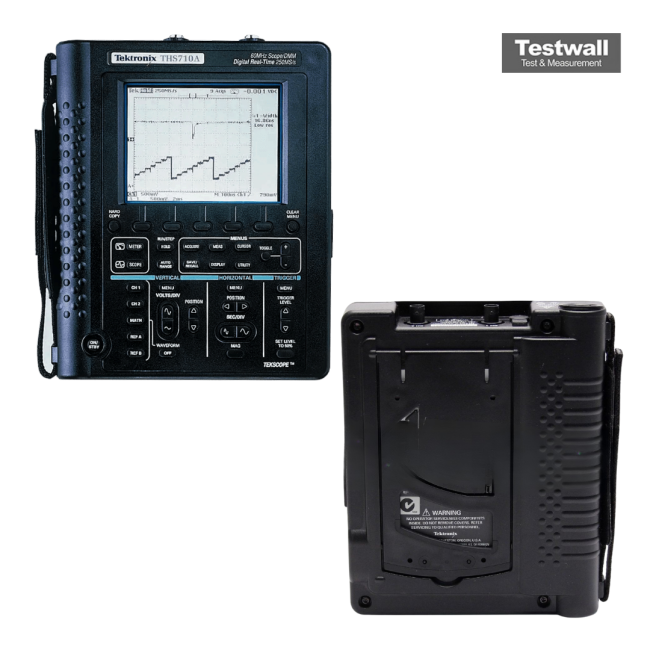

Tektronix THS710A
60 MHz Bandwidth
2 Channels Number of Channels
250 MS/s Sample Rate
2500 Points Record Length
5 mV/div to 100 V/div Vertical Sensitivity
| Attribute | Value |
|---|---|
| Bandwidth | 60 MHz |
| Number of Channels | 2 Channels |
| Sample Rate | 250 MS/s |
| Record Length | 2500 Points |
| Vertical Sensitivity | 5 mV/div to 100 V/div |
| Input Impedance | 1 MΩ in parallel with 15 pF |
| Display Type | Backlit LCD |
| Battery Life | Up to 2 hours with standard battery pack |
| Maximum Input Voltage | 300 V RMS CAT II |
| Multimeter Functions | AC/DC Voltage, AC/DC Current, Resistance, Diode, Continuity |
Tektronix THS710A Options:
- THS710A - L1 - French User Manual
- THS710A - L2 - Italian User Manual
- THS710A - L3 - German User Manual
- THS710A - L4 - Spanish User Manual
- THS710A - L5 - Japanese User Manual
- THS710A - L6 - Portuguese User Manual
- THS710A - L7 - Simplified Chinese User Manual
- THS710A - L8 - Traditional Chinese User Manual
- THS710A - L9 - Korean User Manual
- THS710A - A1 - European Power Plug
- THS710A - A2 - UK Power Plug
- THS710A - A6 - Japanese Power Plug
| Model | THS710A |
|---|
The Tektronix THS710A is a 100 MHz handheld digital phosphor oscilloscope with 2 GS/s real-time sampling, color display, and a rugged battery-powered design tailored for demanding field use.
Features include multiple trigger modes like edge, pulse, video, and FFT math capabilities, plus USB interface for seamless data export.
Testwall can supply the used Tektronix THS710A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix THS710A.
