Tektronix

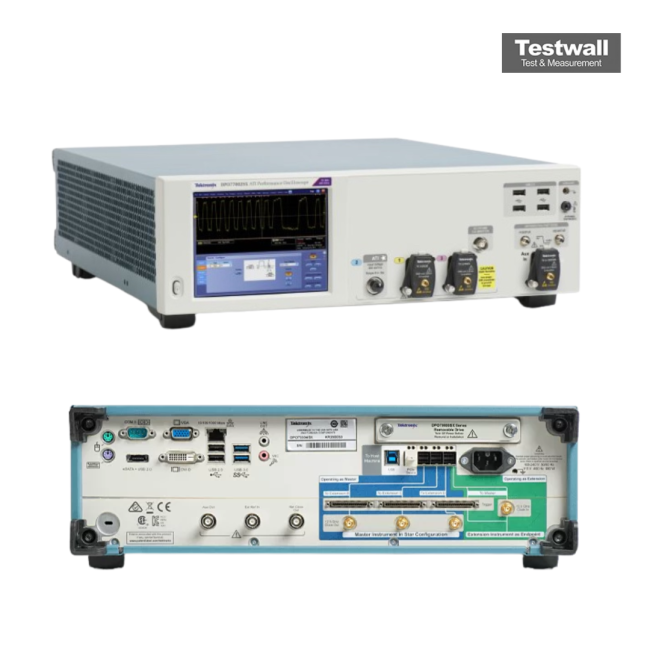

Tektronix DPO72304SX
Single-unit, 23 GHz, 4 Analog Channel Oscilloscope
23 GHz Bandwidth
Up to 100 GS/s Sample Rate
4 channels Number of Channels
8-bit (up to 11-bit with Hi-Res mode) Vertical Resolution
Up to 250 Mpoints per channel Record Length
| Attribute | Value |
|---|---|
| Bandwidth | 23 GHz |
| Sample Rate | Up to 100 GS/s |
| Number of Channels | 4 channels |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Record Length | Up to 250 Mpoints per channel |
| Rise Time | 17.5 ps (typical) |
| Waveform Capture Rate | Up to 300,000 waveforms per second |
| Input Impedance | 50 Ω |
| Display | 15.3-inch (388 mm) XGA color display |
| Operating System | Windows 10 |
Tektronix DPO72304SX Options:
- DPO72304SX - 10XL - Record Length 125 MS/Ch
- DPO72304SX - 20XL - Record Length 250 MS/Ch
- DPO72304SX - 50XL - Record Length 500 MS/Ch on 4 channels, 1 GS/Ch on 2 channels
- DPO72304SX - DDRA - DDR Memory Bus Analysis (requires DJA)
- DPO72304SX - DDR-LP4 - LPDDR4 Memory Bus Electrical Validation and Analysis Oscilloscope Software (requires DJA)
- DPO72304SX - DJA - Jitter and Eye Analysis Tools - Advanced (DPOJET)
- DPO72304SX - DJAN - DPOJET Noise, Jitter and Eye Analysis Tools
- DPO72304SX - DP12 - DisplayPort 1.2 Source Test Automation Software (requires DJA and 5XL)
- DPO72304SX - D-PHY - MIPI D-PHY Transmitter Debug, Characterization and Compliance Test Solution (requires DJA)
- DPO72304SX - EDP - Embedded Display Port (EDP) v1.4 TX Compliance Test Package
- DPO72304SX - ET3 - Ethernet Compliance Testing
- DPO72304SX - FC-16G - Fiber Channel - 16G Essentials (requires DJA)
- DPO72304SX - FRQCNT - Frequency Counter-Timer
- DPO72304SX - HDM - HDMI 2.0 Advanced Analysis and Compliance Software for Tx tests
- DPO72304SX - HDM-DS - HDMI 2.0 Direct Synthesis for RX testing
- DPO72304SX - HT3 - HDMI Compliance Testing
- DPO72304SX - HT3DS - HDMI Direct Synthesis for HDMI 1.4 (requires HT3)
- DPO72304SX - LT - Waveform Limit Testing
- DPO72304SX - MHD - MHL Advanced Analysis and Compliance Software (requires DJA and 2XL)
- DPO72304SX - M-PHY - MIPI M-PHY Transmitter Debug, Characterization and Compliance Test Solution (requires DJA)
- DPO72304SX - M-PHYTX - M-PHY Automated Transmitter Solution
- DPO72304SX - NBASET - NBASE-T TekExpress Conformance and Debug Solution
- DPO72304SX - PAM4 - PAM4 Transmitter Analysis Software
- DPO72304SX - PCE3 - PCI Express Gen1/2/3 TekExpress Compliance/Debug Automation with DPOJet Measurements Software (requires Opt DJA)
- DPO72304SX - PCE4 - PCI Express Gen1/2/3/4 TekExpress Compliance/Debug Automation with DPOJet & SigTest Measurements Software (requires Opt DJA and Opt SDLA64)
- DPO72304SX - SAS3-TSG - SAS-3 Automated Tx Compliance Test Application (requires DJA)
- DPO72304SX - SAS3-TSGW - SAS-3 WDP Transmitter Measurements (requires SAS3-TSG)
- DPO72304SX - SC - SignalCorrect Cable, Channel, and Probe Compensation Software
- DPO72304SX - SDLA64 - New version of SDLA (64-bit)
- DPO72304SX - SFP-TX - SFP+ Compliance and Debug Solution (requires DJA)
- DPO72304SX - SFP-WDP - SFP+ Compliance and Debug Solution - WDP Measurement (requires DJA & SFP-TX)
- DPO72304SX - SR-EMBD - Embedded Serial Triggering and Analysis (I2C, SPI)
- DPO72304SX - VET - Visual Trigger and Search
- DPO72304SX - XGBT2 - 10GBASE-TekExpress Conformance and Debug Solution
- DPO72304SX - 100G-TXE - IEEE-802.3bm: CAUI4 and IEEE-802.3bj: KR4/CR4 100Gbps Transmitter Compliance (requires DJA or DSA and DJAN)
- DPO72304SX - 10G-KR - 10GBASE-KR/KR4 Compliance and Debug Solution (requires DJA, SR-CUST)
- DPO72304SX - 40G-CR4 - 40GBASE-CR4 Debug and Automated Compliance Solution
- DPO72304SX - SVE - SignalVu Essentials - Vector Signal Analysis Software
- DPO72304SX - SVA - AM/FM/PM Audio Signal Analysis (Requires Opt. SVE)
- DPO72304SX - SVM - General Purpose Modulation Analysis (Requires Opt. SVE)
- DPO72304SX - SVO - Flexible OFDM Analysis (Requires Opt. SVE)
- DPO72304SX - SVP - Advanced Signal Analysis including pulse measurements (Requires Opt. SVE)
- DPO72304SX - SVT - Frequency and Phase Settling Time Measurements (Requires Opt. SVE)
- DPO72304SX - SV23 - WLAN 802.11a/b/g/j/p measurement application (requires Opt. SVE)
- DPO72304SX - SV24 - WLAN 802.11n measurement application (requires Opt SV23)
- DPO72304SX - SV25 - WLAN 802.11ac measurement application (requires Opt SV24)
- DPO72304SX - SV26 - APCO P25 compliance testing and analysis application (requires Opt. SVE)
- DPO72304SX - SV27 - SignalVu Bluetooth Basic LE TX SIG measurements (requires Opt. SVE)
- DPO72304SX - SV28 - SignalVu LTE Downlink RF measurements (requires Opt. SVE)
- DPO72304SX - SV30 - WiGig IEEE802.11ad transmitter testing (requires Opt. SVE)
- DPO72304SX - SSD - Additional Removable Disk - Solid State Drive
- DPO72304SX - A0 - North America power plug (115 V, 60 Hz)
- DPO72304SX - A1 - Universal Euro power plug (220 V, 50 Hz)
- DPO72304SX - A2 - United Kingdom power plug (240 V, 50 Hz)
- DPO72304SX - A3 - Australia power plug (240 V, 50 Hz)
- DPO72304SX - A5 - Switzerland power plug (220 V, 50 Hz)
- DPO72304SX - A6 - Japan power plug (100 V, 50/60 Hz)
- DPO72304SX - A10 - China power plug (50 Hz)
- DPO72304SX - A11 - India power plug (50 Hz)
- DPO72304SX - A12 - Brazil power plug (60 Hz)
- DPO72304SX - A99 - No power cord
- DPO72304SX - C3 - Calibration Service 3 Years
- DPO72304SX - C5 - Calibration Service 5 Years
- DPO72304SX - D1 - Calibration Data Report
- DPO72304SX - D3 - Calibration Data Report 3 Years (with Opt. C3)
- DPO72304SX - D5 - Calibration Data Report 5 Years (with Opt. C5)
- DPO72304SX - G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- DPO72304SX - G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- DPO72304SX - IF - Upgrade Installation Service
- DPO72304SX - R3 - Repair Service 3 Years (including warranty)
- DPO72304SX - R5 - Repair Service 5 Years (including warranty)
| Model | DPO72304SX |
|---|
The Tektronix DPO72304SX offers real-time signal acquisition up to 70 GHz bandwidth using ATI architecture, enabling low noise and high fidelity performance for demanding applications.
This oscilloscope is ideal for complex optical modulation, jitter analysis, high-speed serial data, and wideband RF signal testing.
Testwall can supply the used Tektronix DPO72304SX, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO72304SX.
