Tektronix
Tektronix K1297
Tektronix 1297 Series Compatible Oscilloscope Series
Probe Kit / Test Accessory Kit Accessory Type
4 Number of Channels
200 MHz Bandwidth
1 MΩ Input Impedance
| Attribute | Value |
|---|---|
| Compatible Oscilloscope Series | Tektronix 1297 Series |
| Accessory Type | Probe Kit / Test Accessory Kit |
| Number of Channels | 4 |
| Bandwidth | 200 MHz |
| Input Impedance | 1 MΩ |
| Probe Attenuation Ratio | 10X / 1X Switchable |
| Maximum Input Voltage | 300 V CAT II |
| Cable Length | 1.2 m (approx.) |
| Connector Type | BNC |
| Operating Temperature Range | 0°C to +50°C |
Tektronix K1297 Options:
- K1297 - 7KK1200-1PM11 - K1297-G20 Protocol Tester portable unit (4 slots), with basic software for monitoring applications (7KK1220-0SD)
- K1297 - 7KK1200-1BM11 - K1297-G20 Monitor Protocol Tester bench top unit (7 slots), with basic software for monitoring applications (7KK1220-0SD)
- K1297 - 7KK1200-1BT11 - K1297-G20 Protocol Tester; benchtop unit (7 slots), with basic software for monitoring, simulation and emulation applications (7KK1220-0SC), AP4 board
- K1297 - 7KK1200-1PT11 - K1297-G20 Protocol Tester; portable unit (4 slots), with basic software for monitoring, simulation and emulation applications (7KK1220-0SC), AP4 board
- K1297 - 7KK1200-1BU11 - K12xx HW Unit and System Software; Protocol Tester K1297-G20 with basic software for monitoring applications (7KK1220-0SC); benchtop unit (7 slots), without AP, license for 1 log sim link, Pentium III CPU, TFT, 115/230 V, 1.44 MB FD, SCSI-HD, WIN-XP embedded
- K1297 - 7KK1200-1PU11 - K12xx HW Unit and System Software; Protocol Tester K1297-G20 with basic software for simulation and monitoring applications (7KK1220-0SC); portable unit (4 slots), without AP, license for 1 log sim link, Pentium III CPU, TFT, 115/230 V, 1.44 MB FD, SCSI-HD, WIN-XP embedded, transport box
- K1297 - 7KK1200-4AF11 - VME Board AP-4 with 256 MB RAM
- K1297 - 7KK1200-2MM11 - PCM Board PRIMO for E1/DS1 (2.048 Mb/s/1.544 Mb/s) Interface, 4x Monitoring
- K1297 - 7KK1200-2EE11 - Ethernet board with two 10/100 Mb modules (each module contains two Ethernet interfaces), CD and cable
- K1297 - 7KK1200-2PE11 - PCM board PRIME for E1 interface (2.048 Mb/s), 4x Simulation or 2x Monitoring, with CD and cable
- K1297 - 7KK1200-2PT11 - PCM board PRIME for DS1 (1.544 Mb/s) interface, 4x Simulation or 2x Monitoring, with CD and cable
- K1297 - 7KK1200-3CA11 - PCE I AAL2/5 Board; Packet and ATM Cell Processor supplied AAL2 and AAL5, OAM (FM), TM4.x (VBR, CBR, UBR)
- K1297 - 7KK1200-3CB11 - ATM Line Interface for PCE I; STM1/OC3 optical, 2x Rx/Tx; fiber cables LC-SC; for later installation in K1297-G20
- K1297 - 7KK1200-3CC11 - ATM Line Interface for PCE I; E1/T1, 4x Rx/Tx; for later installation in K1297-G20
- K1297 - 7KK1200-3CD11 - K12xx HW ATM Mon Line Interface; PCE E1/DS1, 4x Rx/Tx; separate delivery for later installation; without cable; Prerequisite: 7KK1200-3CAxx, system version (7KK1220-0SCxx) ≥2.40
- K1297 - 7KK1200-3CE11 - K12xx HW ATM Line Interface; PCE STM1/OC3 optical, 2x Rx/Rx; includes fiber cables and connectors; separate delivery for later installation; Prerequisite: 7KK1200-3CAxx, system version (7KK1220-0SCxx) ≥2.40
- K1297 - 7KK1229-8PE11 - Tool for Monitoring/Simulation/Emulation offline; K1297-G20 development environment
- K1297 - 7KK1229-4PP11 - Record play back SW, analysis and play back of K1297-G20 record files
| Model | K1297 |
|---|

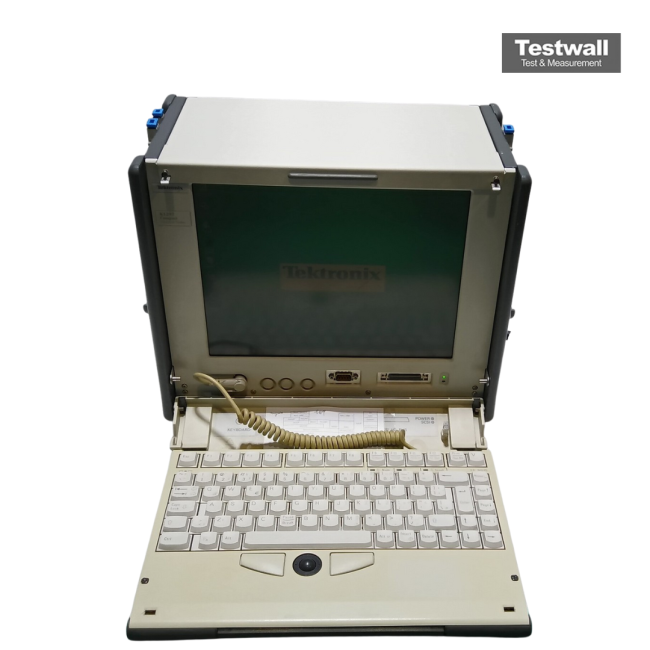

The Tektronix K1297 is a high-performance protocol analyzer supporting SS7, ISDN, IP, ATM, and more, with modular hardware and scalable interfaces. It features real-time decoding, event monitoring, and protocol emulation.
Ideal for telecom and data networks, it allows comprehensive protocol analysis, user-definable stacks, and conformance testing with flexible configurations.
Testwall can supply the used Tektronix K1297, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix K1297.
