Tektronix DPS77004SX
2 Ch, 70 GHz Real-Time Oscilloscope
70 GHz Bandwidth
4 Number of Channels
200 GS/s Sample Rate
62.5 Mpoints per channel Record Length
8-bit (11-bit with Hi-Res mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 70 GHz |
| Number of Channels | 4 |
| Sample Rate | 200 GS/s |
| Record Length | 62.5 Mpoints per channel |
| Vertical Resolution | 8-bit (11-bit with Hi-Res mode) |
| Rise Time | 5 ps |
| Input Impedance | 50 Ω |
| Display | 15.6-inch HD touchscreen display |
| Operating System | Windows 10 |
| Connectivity | USB, DisplayPort, LAN (LXI), PCIe |
Tektronix DPS77004SX Options:
- DPS77004SX - 10XL - Record Length 125 MS/Ch
- DPS77004SX - 20XL - Record Length 250 MS/Ch
- DPS77004SX - 50XL - Record Length 500 MS/Ch on 4 channels, 1 G/Ch on 2 channels (DPO77002SX only)
- DPS77004SX - VET - Visual Trigger
- DPS77004SX - ASM - Advanced Event Search and Mark
- DPS77004SX - LT - Waveform Limit Testing
- DPS77004SX - DJA - Jitter and Eye Analysis Tools - Advanced (DPOJET)
- DPS77004SX - DJAN - DPOJET Noise, Jitter and Eye Analysis Tools
- DPS77004SX - SDLA64 - Serial Data Link Analysis Visualizer
- DPS77004SX - SVE - SignalVu® Essentials - Vector Signal Analysis Software
- DPS77004SX - SVA - AM/FM/PM Audio Signal Analysis (Requires Opt. SVE)
- DPS77004SX - SVM - General Purpose Modulation Analysis (Requires Opt. SVE)
- DPS77004SX - SVO - Flexible OFDM Analysis (Requires Opt. SVE)
- DPS77004SX - SVP - Advanced Signal Analysis (including pulse measurements) (Requires Opt. SVE)
- DPS77004SX - SVT - Frequency and Phase Settling Time Measurements (Requires Opt. SVE)
- DPS77004SX - SV23 - WLAN 802.11a/b/g/j/p measurement application (requires Opt. SVE)
- DPS77004SX - SV24 - WLAN 802.11n measurement application (requires Opt. SV23)
- DPS77004SX - SV25 - WLAN 802.11ac measurement application (requires Opt. SV24)
- DPS77004SX - SV27 - SignalVu Bluetooth Basic LE TX SIG measurements
- DPS77004SX - SSD - Additional Removable Disk - Solid State Drive
- DPS77004SX - L0 - English manual
- DPS77004SX - L1 - French manual
- DPS77004SX - L3 - German manual
- DPS77004SX - L5 - Japanese manual
- DPS77004SX - L7 - Simplified Chinese manual
- DPS77004SX - L8 - Traditional Chinese manual
- DPS77004SX - L9 - Korean manual
- DPS77004SX - L10 - Russian manual
- DPS77004SX - L99 - No manual
- DPS77004SX - A0 - North America power plug (115 V, 60 Hz)
- DPS77004SX - A1 - Universal Euro power plug (220 V, 50 Hz)
- DPS77004SX - A2 - United Kingdom power plug (240 V, 50 Hz)
- DPS77004SX - A3 - Australia power plug (240 V, 50 Hz)
- DPS77004SX - A5 - Switzerland power plug (220 V, 50 Hz)
- DPS77004SX - A6 - Japan power plug (100 V, 50/60 Hz)
- DPS77004SX - A10 - China power plug (50 Hz)
- DPS77004SX - A11 - India power plug (50 Hz)
- DPS77004SX - A12 - Brazil power plug (60 Hz)
- DPS77004SX - A99 - No power cord
- DPS77004SX - C3 - Calibration Service 3 Years
- DPS77004SX - C5 - Calibration Service 5 Years
- DPS77004SX - D1 - Calibration Data Report
- DPS77004SX - D3 - Calibration Data Report 3 Years (with Opt. C3)
- DPS77004SX - D5 - Calibration Data Report 5 Years (with Opt. C5)
- DPS77004SX - G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- DPS77004SX - G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- DPS77004SX - R3 - Repair Service 3 Years (including warranty)
- DPS77004SX - R5 - Repair Service 5 Years (including warranty)
| Model | DPS77004SX |
|---|

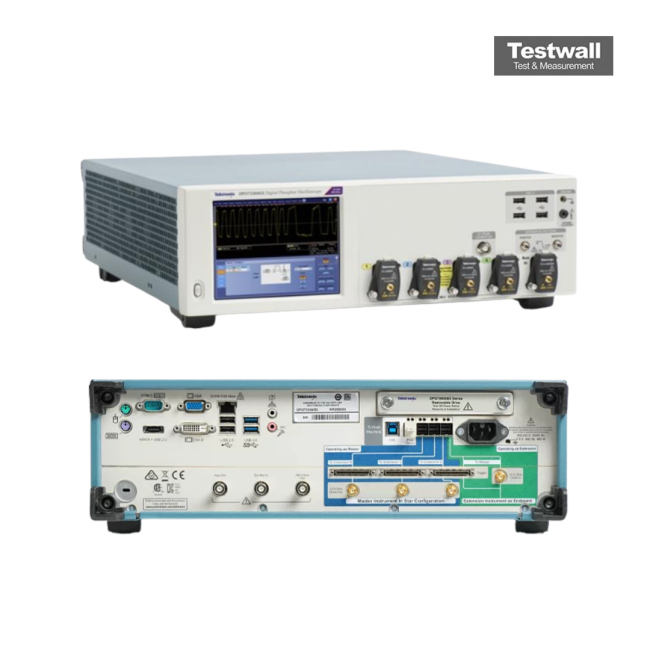

The Tektronix DPS77004SX is a dual-channel oscilloscope with 70 GHz bandwidth and 200 GS/s sampling rate, featuring ATI architecture for low-noise, high-fidelity acquisition. It offers up to 1 billion points per channel in record length and supports advanced triggering and FastFrame capabilities.
This system is tailored for high-speed applications like coherent optical comms and RF testing, with synchronized modules via UltraSync and support for PCIe, USB, PAM4 protocols.
Testwall can supply the used Tektronix DPS77004SX, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPS77004SX.
