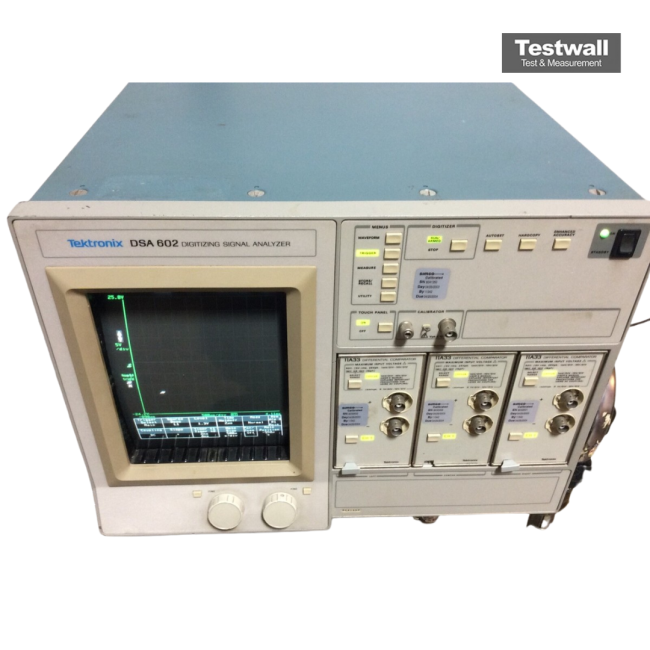

Tektronix DSA602
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Sample Rate | Up to 5 GS/s (with interpolation) |
| Number of Channels | 2 channels (expandable with plug-in modules) |
| Vertical Resolution | 8-bit (11-bit with Hi Res acquisition mode) |
| Record Length | Up to 120,000 points per channel |
| Acquisition Modes | Sample, Envelope, Average, Hi Res |
| Timebase Range | 200 ps/div to 160 s/div |
| Display | Color raster display with waveform and measurement readout |
| Input Impedance | 50 Ohms or 1 MOhm (plug-in dependent) |
| Interface/Connectivity | GPIB (IEEE-488), RS-232, Centronics parallel port |
| Model | DSA602 |
|---|
The Tektronix DSA602 is a dual-channel digital signal analyzer offering up to 400 MHz bandwidth, real-time acquisition, and waveform display capabilities. Equipped with RS-232 and GPIB interfaces, it is designed for accurate and efficient signal monitoring.
Ideal for general-purpose waveform monitoring and basic spectral analysis, the DSA602 includes essential features like basic triggering, waveform storage, and a CRT-based output display for effective documentation.
Testwall can supply the used Tektronix DSA602, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DSA602.
