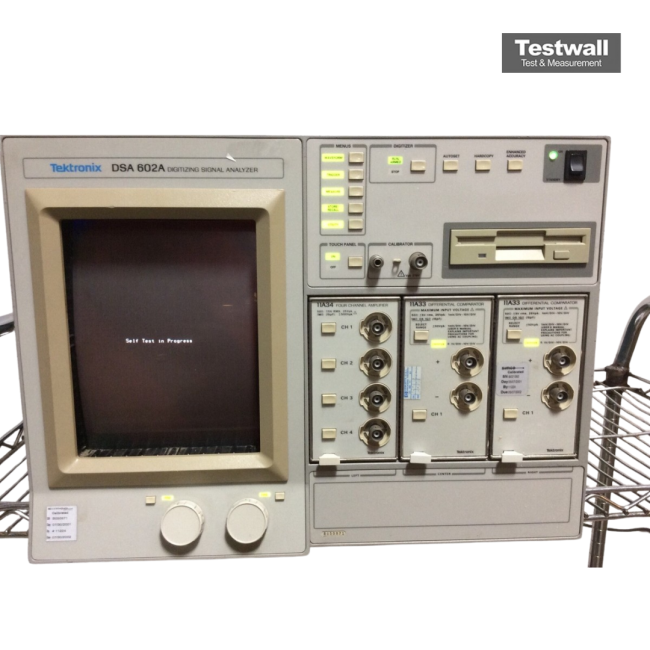

Tektronix DSA602A
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Sample Rate | Up to 5 GS/s (with DSP enhancement) |
| Number of Channels | 2 channels (expandable with plug-in modules) |
| Record Length | Up to 120,000 points per channel |
| Vertical Resolution | 8-bit (11-bit with Hi Res mode) |
| Timebase Range | 50 ps/div to 20 s/div |
| Input Impedance | 50 Ω or 1 MΩ (plug-in dependent) |
| Display | Color raster display with waveform math and FFT analysis |
| Trigger Types | Edge, Logic, Pulse Width, Glitch, and Sequence triggering |
| Interfaces/Connectivity | GPIB (IEEE-488), RS-232, and Centronics parallel port |
| Model | DSA602A |
|---|
The Tektronix DSA602A oscilloscope features a 1 GHz bandwidth, 2 GS/s sample rate, and 8-bit vertical resolution. It supports 32K record length and offers 24+ waveform functions with automatic measurements. Interfaces include 3.5" floppy, Centronics, RS-232, and GPIB, displayed on a color screen.
Designed for precise signal diagnostics, it identifies voltage/time values, frequency, distortion, noise, and AC/DC components. Ideal for circuit analysis and malfunction detection.
Testwall can supply the used Tektronix DSA602A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DSA602A.
