Tektronix DSA70604
| Attribute | Value |
|---|---|
| Bandwidth | 6 GHz |
| Sample Rate | 25 GS/s on all 4 channels simultaneously |
| Number of Channels | 4 |
| Record Length | Up to 250 Megapoints per channel |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res acquisition mode) |
| Rise Time | 58.3 ps (typical) |
| Waveform Capture Rate | Up to 300,000 waveforms per second |
| Input Impedance | 50 Ω or 1 MΩ (with TekConnect adapters) |
| Time Base Range | 200 ps/div to 1000 s/div |
| Operating System | Windows XP Professional |
Tektronix DSA70604 Options:
Options available for the Tektronix DPO/DSA/MSO70000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DSA70604 - 2XL - Extended record length
- DSA70604 - 5XL - Extended record length
- DSA70604 - 10XL - Extended record length
- DSA70604 - 20XL - Extended record length
- DSA70604 - 50XL - Extended record length
- DSA70604 - DJA - DPOJET advanced jitter and eye diagram analysis (standard on DSA models)
- DSA70604 - DJAN - DPOJET jitter and noise analysis
- DSA70604 - SDLA64 - Serial data link analysis (equalization, de-embedding)
- DSA70604 - DDRA - DDR memory bus analysis
- DSA70604 - ST6G - 6.25 Gb/s serial pattern trigger
- DSA70604 - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DSA70604 - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DSA70604 - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DSA70604 - SR-USB - USB 2.0 serial triggering and analysis
- DSA70604 - SR-PCIE - PCI Express serial analysis
- DSA70604 - SR-810B - 8b/10b serial analysis
- DSA70604 - MTH - Mask testing
- DSA70604 - LT - Limit testing
- DSA70604 - VET - Visual trigger
- DSA70604 - ASM - Advanced search and mark

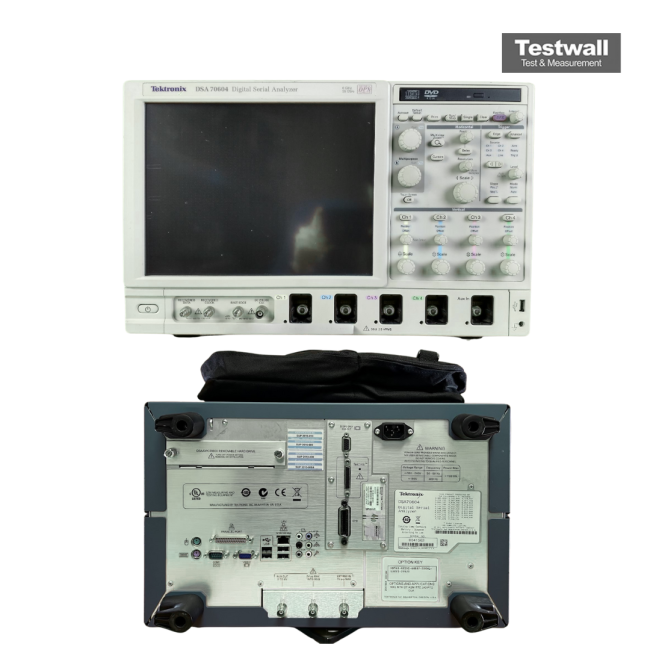

The Tektronix DSA70604 is a high-performance 6 GHz, 4-channel digital serial analyzer offering 25 GS/s sample rate and 20 MPts memory per channel. Designed for in-depth signal integrity analysis, it supports compliance testing for PCI Express, SATA, HDMI, Ethernet, USB 2.0, and more. The unit features pinpoint® triggering, serial protocol decoding, and the industry’s largest 12.1” XGA touch screen display for ease of use.
Engineered for debugging, characterization, and transient analysis, the DSA70604 is ideal for high-speed serial data compliance testing and advanced spectral measurements across multiple applications.
Testwall can supply the used Tektronix DSA70604, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DSA70604.
