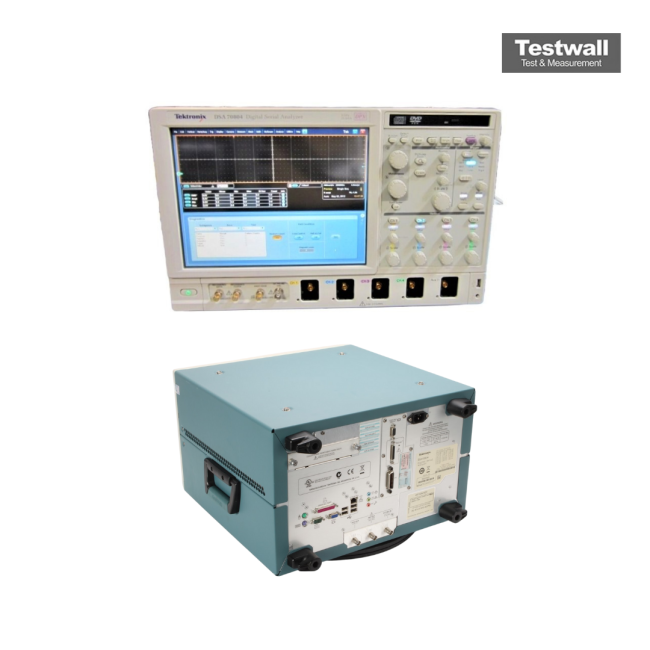

Tektronix DSA70804
| Attribute | Value |
|---|---|
| Bandwidth | 8 GHz |
| Sample Rate | 25 GS/s on all 4 channels simultaneously |
| Number of Channels | 4 |
| Vertical Resolution | 8 bits (11 bits with Hi-Res acquisition mode) |
| Record Length | Up to 250 Mpoints per channel |
| Rise Time | ≤ 43.75 ps (10% to 90%) |
| Input Impedance | 50 Ω |
| Display | 12.1-inch TFT color LCD, 1024 x 768 resolution |
| Waveform Capture Rate | Up to 300,000 waveforms per second |
| Connectivity | USB, LAN (LXI), GPIB (optional), Windows-based operating system |
Tektronix DSA70804 4 Channel 8GHz Digital Serial Analyzer Options:
- DSA70804 - 10XL - 100 Msamples/Ch
- DSA70804 - 20XL - 200 Msamples/Ch
- DSA70804 - 5XL - 50 Msamples/Ch
- DSA70804 - DDRA - Ddr Memory Bus Analysis
- DSA70804 - DSPT - Displayport Compliance Test Solution
- DSA70804 - DVI - Dvi Compliance Test Solution
- DSA70804 - ET3 - Ethernet Compliance Test Software
- DSA70804 - FBD - Fb-Dimm Compliance Module For Rt-Eye Serial Data Compliance And Analysis Software
- DSA70804 - HT3 - Hdmi Compliance Test Software
- DSA70804 - IBA - Infiniband Compliance Module For Rt-Eye Serial Data Compliance And Analysis Software
- DSA70804 - LT - Waveform Limit Testing
- DSA70804 - PCE - Pci Express Analysis Software
- DSA70804 - PWR - Power Measurement And Analysis Software
- DSA70804 - RTE - Serial Data Compliance And Analysis Software
- DSA70804 - SLA - Serial Data Link Analysis Advanced (With Equalization)
- DSA70804 - SLE - Serial Data Link Analysis Essentials (No Equalization)
- DSA70804 - SST - Sata And Sas Analysis Software Module For Rt-Eye Serial Data Compliance And Analysis Software
- DSA70804 - STU - Protocol Triggering And Decoding For 8B/10B-Encoded Serial Signals Up To 5 Gbps.
- DSA70804 - SVE - Signalvu Essentials 鈥 Vector Signal Analysis Software
- DSA70804 - SVM - General Purpose Modulation Analysis. (Requires Option Sve)
- DSA70804 - SVP - Advanced Signal Analysis (Including Pulse Measurements). (Requires Option Sve)
- DSA70804 - USB - Usb2.0 Compliance Test Software
- DSA70804 - USB2 - Usb 2.0 Compliance Test Software Only
- DSA70804 - USB3 - Usb 3.0 Compliance And Analysis Software
- DSA70804 - UWB - Ultra Wide Band Wi-Media Analysis.
| Model | DSA70804 |
|---|
The Tektronix DSA70804 offers 8 GHz bandwidth across 4 input channels with a sample rate up to 25 GS/s, supported by 20 M data points per channel. It features a 12.1" XGA touchscreen and belongs to the advanced DPO70000 and DSA70000 Series, delivering industry-leading real-time digital phosphor oscilloscope technology for superior signal acquisition and analysis.
Ideal for high-speed serial design verification, characterization, debugging, and testing, the DSA70804 delivers unmatched performance, operational simplicity, and extensive debugging tools, all accessible through its large, intuitive display interface.
Testwall can supply the used Tektronix DSA70804 Digital Serial Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DSA70804 Digital Serial Analyzer.
