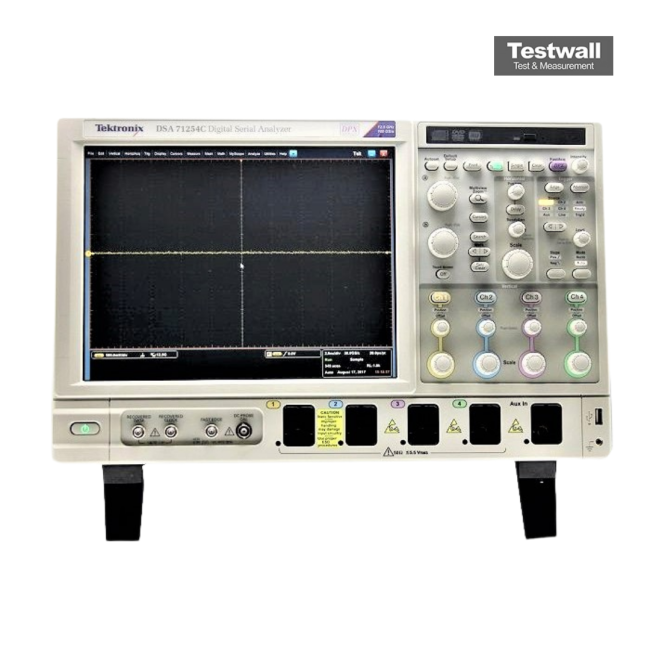

Tektronix DSA71254C
| Attribute | Value |
|---|---|
| Bandwidth | 12.5 GHz |
| Sample Rate | 100 GS/s |
| Number of Channels | 4 |
| Vertical Resolution | 8 bits |
| Record Length | Up to 250 million points |
| Rise Time | 28 ps |
| Input Impedance | 50 Ω |
| Display | 15.3 inch TFT color LCD (XGA resolution 1024 x 768) |
| Operating System | Windows 7 |
| Connectivity | USB, GPIB, LAN (LXI Core 2011) |
Tektronix DSA71254C Options:
Options available for the Tektronix DPO/DSA/MSO70000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- DSA71254C - 2XL - Extended record length
- DSA71254C - 5XL - Extended record length
- DSA71254C - 10XL - Extended record length
- DSA71254C - 20XL - Extended record length
- DSA71254C - 50XL - Extended record length
- DSA71254C - DJA - DPOJET advanced jitter and eye diagram analysis (standard on DSA models)
- DSA71254C - DJAN - DPOJET jitter and noise analysis
- DSA71254C - SDLA64 - Serial data link analysis (equalization, de-embedding)
- DSA71254C - DDRA - DDR memory bus analysis
- DSA71254C - ST6G - 6.25 Gb/s serial pattern trigger
- DSA71254C - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- DSA71254C - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- DSA71254C - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DSA71254C - SR-USB - USB 2.0 serial triggering and analysis
- DSA71254C - SR-PCIE - PCI Express serial analysis
- DSA71254C - SR-810B - 8b/10b serial analysis
- DSA71254C - MTH - Mask testing
- DSA71254C - LT - Limit testing
- DSA71254C - VET - Visual trigger
- DSA71254C - ASM - Advanced search and mark
The Tektronix DSA71254C is a 12.5 GHz Digital Serial Analyzer with four analog channels, supporting bandwidths up to 20 GHz and real-time sampling rates up to 50 GS/s. It provides up to 250 MS record length and over 300,000 wfms/s per channel, ensuring exceptional signal analysis capabilities.
Ideal for testing high-speed serial standards, it offers superb signal integrity, a leading sample rate, and a hardware-based serial pattern trigger up to 6.25 Gb/s.
Testwall can supply the used Tektronix DSA71254C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DSA71254C.
