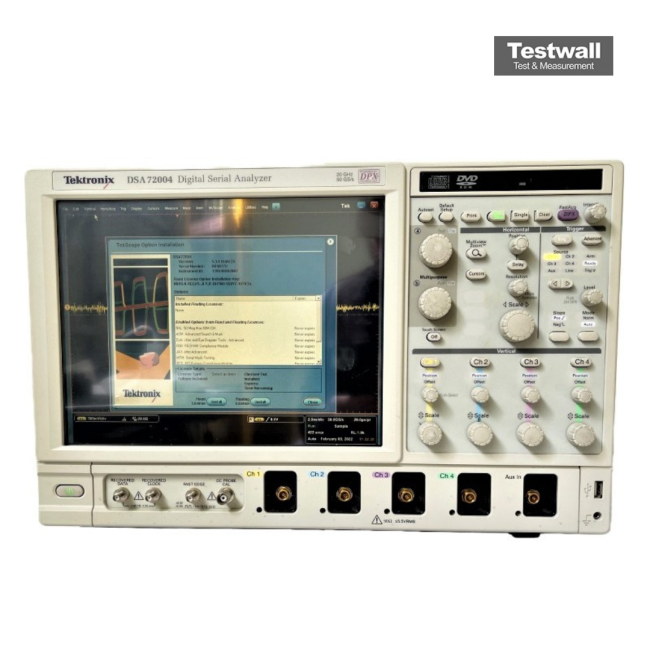

Tektronix DSA72004B
| Attribute | Value |
|---|---|
| Bandwidth | 20 GHz |
| Sample Rate | 50 GS/s on all 4 channels simultaneously |
| Number of Channels | 4 |
| Record Length | Up to 250 Megapoints per channel |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Rise Time | 17.5 ps (typical) |
| Waveform Capture Rate | Up to 300,000 waveforms per second |
| Display | 15.3-inch XGA color display |
| Operating System | Windows XP Professional |
| Connectivity | USB, GPIB, LAN (10/100/1000Base-T Ethernet) |
Tektronix DSA72004B Options:
- DSA72004B - A0 - North America Power Cord
- DSA72004B - A1 - Universal Euro Power Cord
- DSA72004B - A2 - United Kingdom Power Cord
- DSA72004B - A3 - Australia Power Cord
- DSA72004B - A5 - Switzerland Power Cord
- DSA72004B - A6 - Japan Power Cord
- DSA72004B - A10 - China Power Cord
- DSA72004B - A11 - India Power Cord
- DSA72004B - A99 - No Power Cord or AC Adapter
- DSA72004B - MTH - Communication Mask Testing Software for mask compliance testing
- DSA72004B - PTH - Serial Protocol Trigger Software for triggering and decoding 8B/10B data on high-speed serial or data protocols
| Model | DSA72004B |
|---|
The Tektronix DSA72004B Oscilloscope offers 20 GHz bandwidth, 50 GS/s sampling rate, and 4 analog channels, ideal for wideband radar and frequency-agile communications analysis. With integrated SignalVu software, it functions as a vector signal analyzer, spectrum analyzer, and digital oscilloscope in one.
It supports direct observation of microwave signals, RF/IQ/differential IQ inputs, and FastFrame memory for efficient burst capture, perfect for LTE, satellite, and wireless LAN validation.
Testwall can supply the used Tektronix DSA72004B Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DSA72004B Oscilloscope.
