Tektronix DVG7
SD-SDI Digital Video Generator Module
Digital Video Generator Signal Type
SD, HD, and 3 Gb/s SMPTE standards Supported Formats
Multiple simultaneous serial digital video outputs Output Channels
SMPTE 259M, SMPTE 292M, SMPTE 424M Signal Standard Compliance
Color bars, pathological, and custom test pattern generation Test Patterns
| Attribute | Value |
|---|---|
| Signal Type | Digital Video Generator |
| Supported Formats | SD, HD, and 3 Gb/s SMPTE standards |
| Output Channels | Multiple simultaneous serial digital video outputs |
| Signal Standard Compliance | SMPTE 259M, SMPTE 292M, SMPTE 424M |
| Test Patterns | Color bars, pathological, and custom test pattern generation |
| Embedded Audio | Supports embedded audio insertion in digital video signals |
| Genlock Capability | External reference synchronization (black burst and tri-level sync) |
| Platform Compatibility | Designed for use with Tektronix TG700 modular signal generator mainframe |
| Form Factor | Plug-in module for TG700 mainframe |
| Control Interface | Front panel control via TG700 mainframe and remote control via Ethernet/GPIB |
Tektronix DVG7 Options:
- DVG7 - Opt. BK - Add SDI black outputs. Option must be added at time of order. Option cannot be added later
| Model | DVG7 |
|---|
Tektronix Video Generator Module

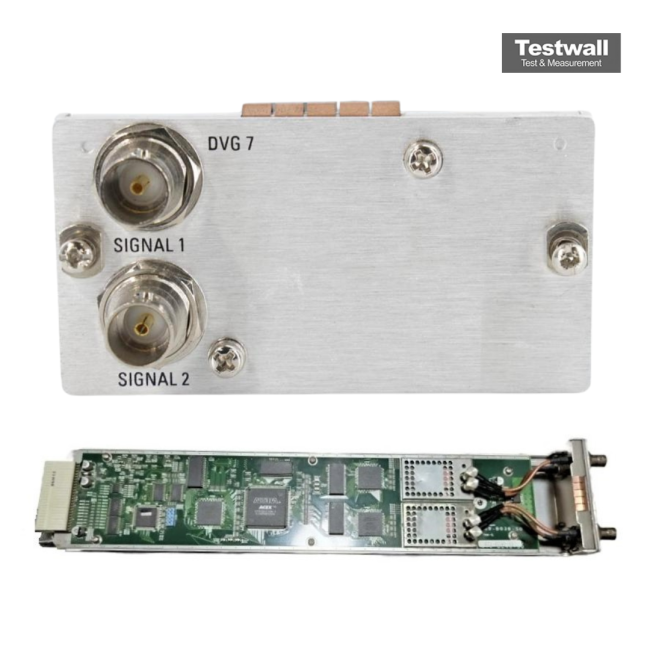

Tektronix DVG7 SD-SDI Digital Video Generator Module
The Tektronix DVG7 is a multiformat SD-SDI test signal generator. The Tektronix DVG7 Digital Video Generator supports 525 line and 625 line serial digital video at 270 Mb/s and NTSC composite digital at 143.181818 Mb/s. The Tektronix DVG7 Digital Video Generator has two identical test signal outputs. With Option BK, two additional identical serial digital black signal outputs are available.
