Tektronix 1750A
| Attribute | Value |
|---|---|
| Signal Standards | NTSC, PAL |
| Input Channels | 2 Video Inputs |
| Display Type | Waveform Monitor and Vectorscope |
| Bandwidth | DC to 5.5 MHz |
| Input Impedance | 75 Ohms |
| Sync Formats Supported | Composite Sync, Separate Sync, Tri-Level Sync |
| Power Requirements | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | Approximately 40 Watts |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Dimensions (H x W x D) | 88.9 mm x 482.6 mm x 368.3 mm (3.5 in x 19 in x 14.5 in) |
Tektronix 1750A Options:
- 1750A - 74 - White CRT Phosphor for any model
| Model | 1750A |
|---|

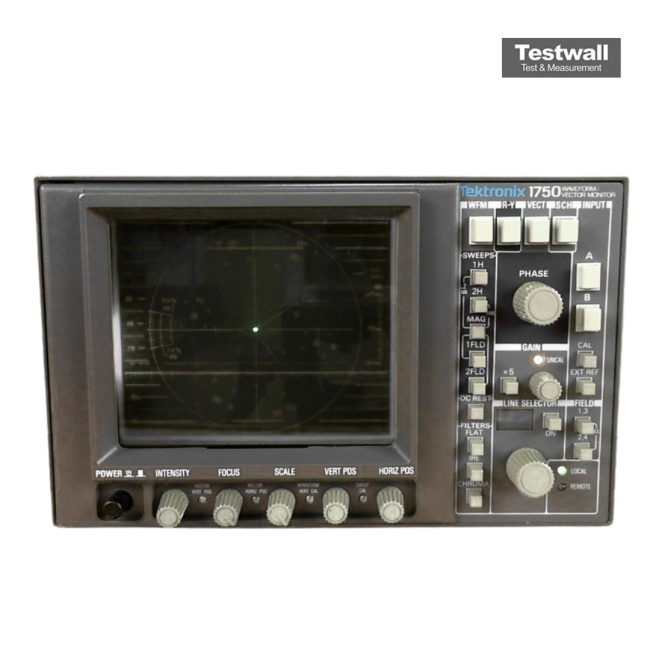

The Tektronix 1750A is a high-precision analog waveform monitor optimized for NTSC and PAL video formats. Featuring composite waveform, parade (RGB/YCbCr), and vector display modes, it supports accurate timing analysis with a calibrated amplitude and timebase. Designed for professional broadcast and video engineering use, it includes retrace blanking, brightness/focus controls, and rack-mount capability.
Ideal for real-time signal integrity assessment, the Tektronix 1750A excels in video synchronization and error detection for post-production and broadcast environments.
Testwall can supply the used Tektronix 1750A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 1750A.
