Tektronix FCA3020
| Attribute | Value |
|---|---|
| Frequency Range | DC to 20 GHz |
| Frequency Resolution | 12 digits/second |
| Single-Shot Resolution | 50 ps |
| Time Interval Resolution | 50 ps single-shot, 1 ps RMS with averaging |
| Input Channels | 3 channels (2 standard + 1 high-frequency RF channel) |
| Input Impedance | 50 Ω (RF channel), 1 MΩ or 50 Ω (standard channels) |
| Measurement Functions | Frequency, period, time interval, pulse width, duty cycle, rise/fall time, phase, totalize |
| Display | Graphical LCD display with statistics, histogram, and trend analysis |
| Timebase Accuracy | ±1 ppm aging per year (standard), optional high-stability oven-controlled oscillator available |
| Connectivity/Interface | GPIB, USB, and RS-232 interfaces for remote control and data transfer |
Tektronix FCA3020 Options:
- FCA3020 - MS - Medium-stability Oven Time Base
- FCA3020 - HS - High-stability Oven Time Base
- FCA3020 - RP - Rear-panel Connectors
- FCA3020 - C3 - Calibration Service 3 Years
- FCA3020 - C5 - Calibration Service 5 Years
- FCA3020 - D1 - Calibration Data Report
- FCA3020 - R5 - Repair Service 5 Years
- FCA3020 - SILV400 - Standard Warranty Extended to 5 Years
- FCA3020 - A0 - Power Plug, North America
- FCA3020 - A1 - Power Plug, Universal Euro
- FCA3020 - A2 - Power Plug, United Kingdom
- FCA3020 - A3 - Power Plug, Australia
- FCA3020 - A5 - Power Plug, Switzerland
- FCA3020 - A6 - Power Plug, Japan
- FCA3020 - A10 - Power Plug, China
- FCA3020 - A11 - Power Plug, India
- FCA3020 - A12 - Power Plug, Brazil
| Model | FCA3020 |
|---|
Tektronix Frequency Counter

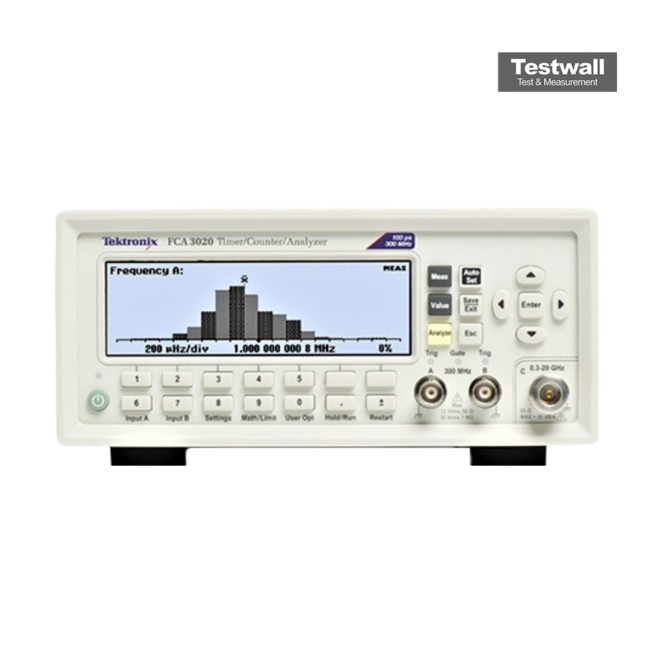

Tektronix FCA3020 Frequency Counter / Analyzer, 20 GHz, 3 Ch.
The Tektronix FCA3020 Timer/Counter/Analyzer Series pack many diffe functions into one feature-rich instrument. With industry-leading frequency and time resolution, the Tektronix FCA Series comes standard with deep internal memory and a fast data transfer rate of 250k Samples/s to internal memory. In addition, the multi-parameter display shows auxiliary measurements alongside your main measurement to provide you with the results you need at a glance. With the industry's most comprehensive analysis modes, including measurement statistics, histograms, and trend plots, you have the tools you need to quickly and accurately analyze your signal.
Timer/Counter/Analyzer 20 GHz / 100 ps
