Tektronix HFS9003
| Attribute | Value |
|---|---|
| Number of Channels | 3 |
| Output Voltage | 0 to 6.5V programmable |
| Output Current | Up to 50mA per channel |
| Frequency Range | DC to 200 MHz |
| Rise/Fall Time | 2.5 ns typical |
| Delay Resolution | 250 ps |
| Output Impedance | 50 Ohms |
| Interface | GPIB (IEEE-488) |
| Power Requirements | 100 to 240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 50°C |
| Model | HFS9003 |
|---|

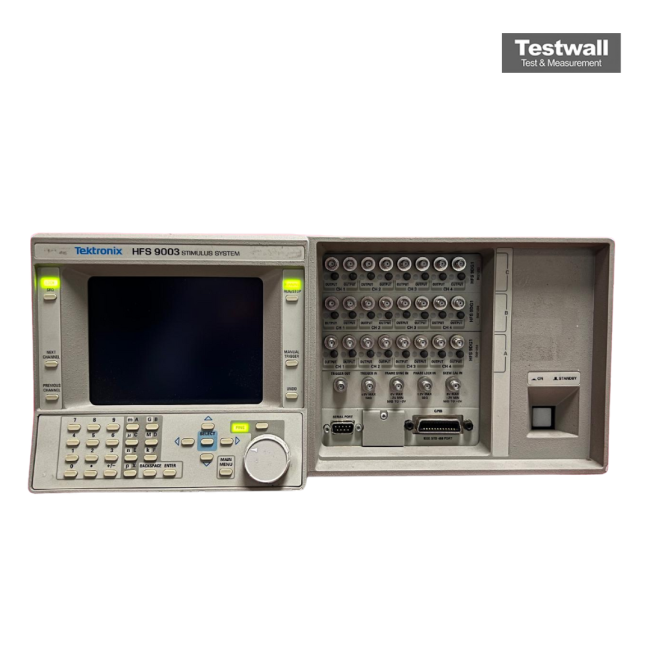

The Tektronix HFS9003 is a modular, C-size VXIbus mainframe capable of supporting up to 12 high-speed stimulus channels through any combination of HFS 9DG1 and HFS 9DG2 generator cards. It includes a CPU card, time base card, and features precision timing down to 1 ps resolution, multi-channel architecture, and advanced frequency controls ranging from 50 kHz to 630 MHz with ±1% accuracy.
Ideal for characterizing CMOS, ECL, ACL, BiCMOS, and GaAs devices, it allows for complete stimulus setup in minutes, precise channel-to-channel timing, and supports GPIB (IEEE 488) programmability for seamless integration into automated test systems.
Testwall can supply the used Tektronix HFS9003, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix HFS9003.
