Tektronix
Tektronix HFS9009
9 slot 36 ch Pulse Generator Mainframe
9 Number of Channels
ECL, TTL, Variable Output Voltage Levels
DC to 1 GHz Frequency Range
500 ps Timing Resolution
Up to 256K vectors per channel Pattern Depth
| Attribute | Value |
|---|---|
| Number of Channels | 9 |
| Output Voltage Levels | ECL, TTL, Variable |
| Frequency Range | DC to 1 GHz |
| Timing Resolution | 500 ps |
| Pattern Depth | Up to 256K vectors per channel |
| Interface | GPIB (IEEE-488) |
| Output Impedance | 50 Ohms |
| Operating Temperature | 0°C to 50°C |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Form Factor | Mainframe Plugin Module (HFS 9000 Series Compatible) |
| Model | HFS9009 |
|---|

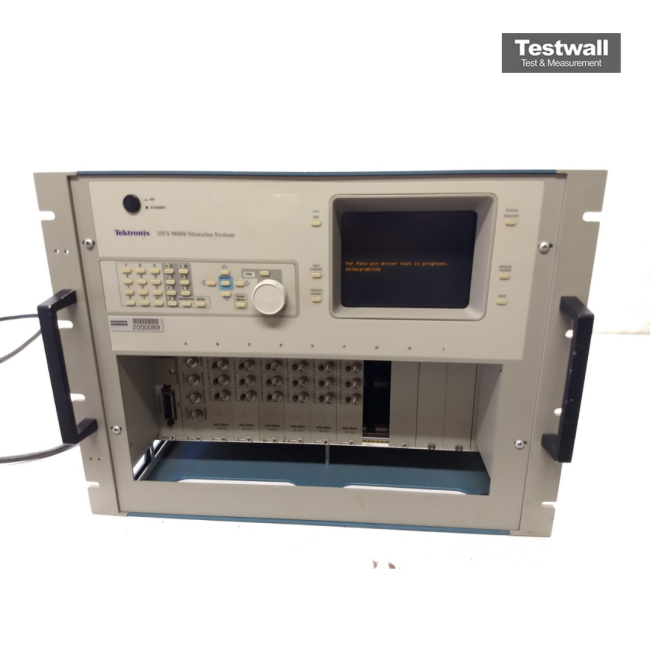

The Tektronix HFS9009 Stimulus System integrates a data generator, pulse generator, and switch matrix into one instrument. It is designed for device characterization, ensuring accurate and repeatable results when used with a high-speed digitizing oscilloscope.
Ideal for high-speed testing environments, the HFS9009 supports detailed analysis through a complete test setup in one device.
Testwall can supply the used Tektronix HFS9009, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix HFS9009.
