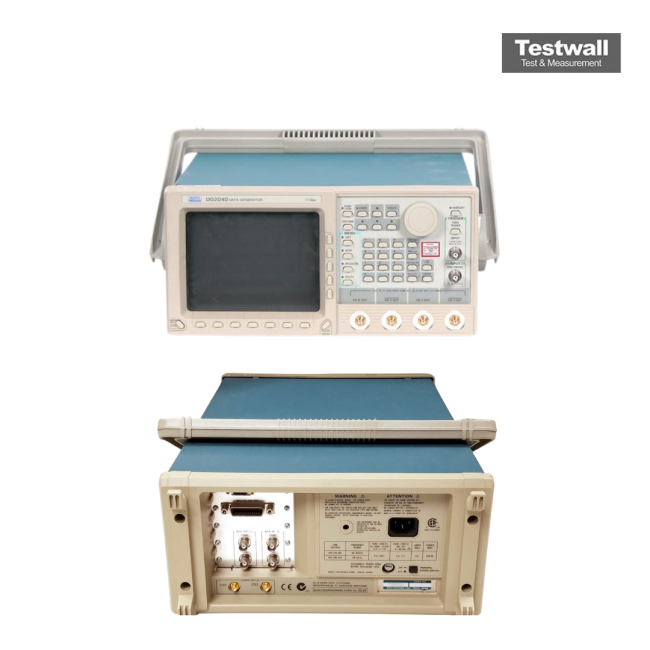

Tektronix DG2040
| Attribute | Value |
|---|---|
| Clock Frequency | Up to 2 GHz |
| Number of Channels | 2 channels |
| Memory Depth | Up to 64K words per channel (expandable to 256K words) |
| Output Voltage Range | -2.0 V to +5.0 V (adjustable amplitude and offset) |
| Output Impedance | 50 Ω |
| Rise/Fall Time | Less than 400 ps (typical) |
| Timing Resolution | 500 ps at 2 GHz clock rate |
| Operating Modes | Continuous, Triggered, Gated, Burst, and Enhanced modes |
| Interface/Connectivity | GPIB (IEEE-488.2) interface for remote control |
| Power Requirements | 100/120/220/240 VAC, 50/60 Hz |
Tektronix DG2040 Data Generator 1.1GB/s 2 Channel Options:
- DG2040 - 01 - Eight-Channel Output
- DG2040 - 1R - Rack Mount
- DG2040 - A1 - 220 V, Euro Plug Power Cord, Product Set To 50 HZ.
- DG2040 - A2 - 240 V, Uk Plug Power Cord, Product Set To 50 HZ.
- DG2040 - A3 - 240 V, Aust Plug Power Cord, Product Set To 50 HZ.
- DG2040 - A4 - 240 V, N. America Plug Power Cord, Product Set To 60 HZ.
- DG2040 - A5 - 220 V, Swiss Plug Power Cord, Product Set To 50 HZ.
- DG2040 - C3 - Three Year Calibration Service
- DG2040 - D1 - Calibration Data Report
- DG2040 - R3 - Repair Warranty; Extended To Three Years.
| Model | DG2040 |
|---|
The Tektronix DG2040 Data Generator 1.1GB/s 2 Channel offers high-speed data generation at 1.1GB/s across two independent channels, delivering precise and reliable signal outputs for demanding digital design and verification applications. Its advanced architecture ensures stable signal integrity, wide frequency coverage, and fine resolution control for complex pattern creation and detailed protocol simulation tasks.
Ideal for semiconductor testing, high-speed digital interface evaluation, and research environments, this unit supports complex data patterns with exceptional timing accuracy and signal fidelity.
Testwall can supply the used Tektronix DG2040 Data Generator 1.1GB/s 2 Channel, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DG2040 Data Generator 1.1GB/s 2 Channel.
