Tektronix MCA3040
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Frequency Range | DC to 40 GHz |
| Timing Resolution | 50 fs RMS |
| Single-Shot Time Interval Resolution | 1 ps RMS |
| Frequency Resolution | 12 digits/second |
| Input Impedance | 50 Ω |
| Input Voltage Range | -2.5 V to +2.5 V |
| Measurement Rate | Up to 500,000 measurements/second |
| Display | 10.4-inch color touchscreen LCD |
| Connectivity | USB, LAN (LXI), GPIB |
Tektronix MCA3040 Options:
- MCA3040 - HS - High-stability oven time base
- MCA3040 - US - Ultra high-stability oven time base
- MCA3040 - A0 - North America power plug (115 V, 60 Hz)
- MCA3040 - A1 - Universal Euro power plug (220 V, 50 Hz)
- MCA3040 - A2 - United Kingdom power plug (240 V, 50 Hz)
- MCA3040 - A3 - Australia power plug (240 V, 50 Hz)
- MCA3040 - A5 - Switzerland power plug (220 V, 50 Hz)
- MCA3040 - A6 - Japan power plug (100 V, 50/60 Hz)
- MCA3040 - A10 - China power plug (50 Hz)
- MCA3040 - A11 - India power plug (50 Hz)
- MCA3040 - C3 - Calibration Service 3 Years
- MCA3040 - C5 - Calibration Service 5 Years
- MCA3040 - D1 - Calibration Data Report
- MCA3040 - R5 - Repair Service 5 Years (including warranty)
- MCA3040 - SILV600 - Standard warranty extended to 5 years
| Model | MCA3040 |
|---|

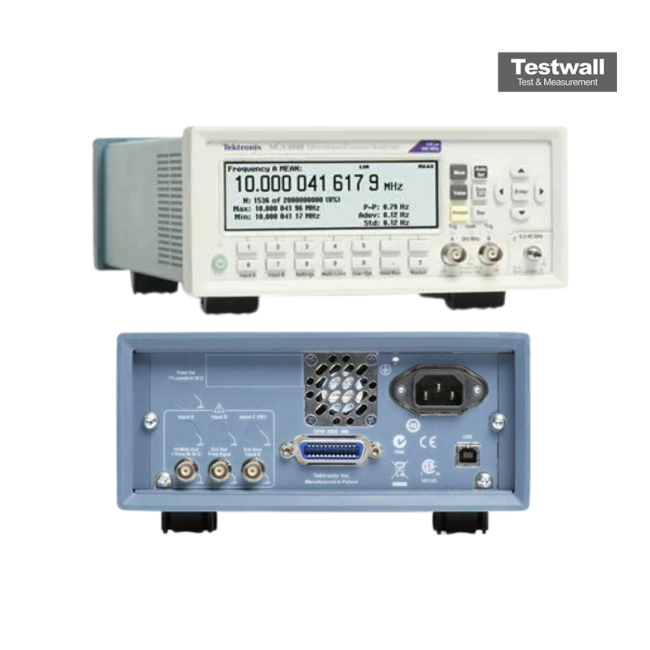

Tektronix MCA3040 Microwave / Counter Analyzer & Power Meter
The Tektronix MCA3040 Microwave/Counter Analyzer & Power Meter is a versatile instrument used for measuring microwave power, frequency, and time interval. With industry-leading frequency and time resolution, the MCA Series comes standard with internal memory, a fast data transfer rate of 250k Samples/s to memory, and an integrated power meter. With the industry's most comprehensive analysis modes, including measurement statistics, histograms, and trend plots, Tektronix MCA3040 Microwave/Counter Analyzer & Power Meter is capable of quickly and accurately analyze your signal.
Tektronix MCA3040 Microwave/Counter Analyzer & Power Meter packs many diffe functions into one feature-rich instrument. The MCA Microwave Counter Series offers industry-best throughput, saving up to 90% on testing time. With 0.01 dBm at 100 ms measuring time resolution and a wide power range from €“35 dBm to +10 dBm, you have the flexibility for a broad range of power measurement applications. The instrument has a user-friendly interface with a multi-parameter display which shows auxiliary measurements alongside your main measurement to provide you with the results you need at a glance. Tektronix MCA3040 Microwave/Counter Analyzer & Power Meter is used in various applications such as radar, satellite communication, wireless communication, and microwave circuit design.
Specifications for the Tektronix MCA3040 Microwave / Counter Analyzer & Power Meter Include:
| Frequency Measurement | 40 GHz |
| Power Range | €“35 dBm to +10 dBm |
| Frequency Resolution | 12 Digit/s |
| Acquisition Time | 25 ms (auto) or zero (manual) |
