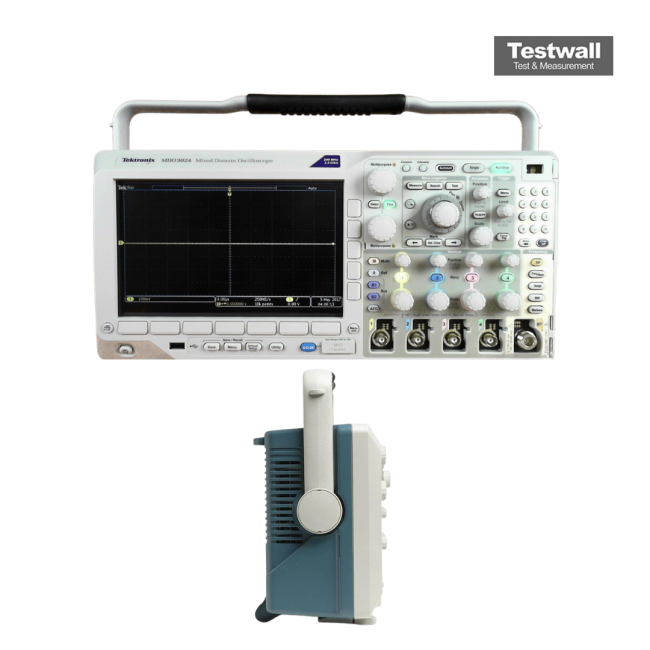

Tektronix MDO3024
Oscilloscope, Mixed Domain, 200 MHz 4 Ch., 2.5 GS/s
200 MHz Bandwidth
4 Number of Analog Channels
2.5 GS/s Sample Rate
10 M points Record Length
8-bit (11-bit with Hi Res mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Analog Channels | 4 |
| Sample Rate | 2.5 GS/s |
| Record Length | 10 M points |
| Vertical Resolution | 8-bit (11-bit with Hi Res mode) |
| RF Input Frequency Range | 9 kHz to 3 GHz |
| Display | 9-inch (228 mm) WVGA color display |
| Integrated Spectrum Analyzer | Yes, with RF time-correlated analysis |
| Serial Bus Triggering and Analysis | Supports I2C, SPI, USB, CAN, LIN, RS-232/422/485/UART |
| Connectivity | USB 2.0 Host and Device ports, LAN (LXI), HDMI |
Tektronix MDO3024 Options:
- MDO3024 - MDO3AFG - Arbitrary function generator with 13 predefined waveforms and arbitrary waveform generation
- MDO3024 - MDO3MSO - 16 digital channels; includes P6316 digital probe and accessories
- MDO3024 - MDO3SA - Increase spectrum analyzer input frequency range to 9 kHz – 3 GHz and capture bandwidth to 3 GHz
- MDO3024 - MDO3SEC - Enhanced instrument security to enable password protected control of turning on/off all instrument ports and instrument firmware update functionality
- MDO3024 - Opt. A0 - North America power plug (115 V, 60 Hz)
- MDO3024 - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- MDO3024 - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- MDO3024 - Opt. A3 - Australia power plug (240 V, 50 Hz)
- MDO3024 - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- MDO3024 - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- MDO3024 - Opt. A10 - China power plug (50 Hz)
- MDO3024 - Opt. A11 - India power plug (50 Hz)
- MDO3024 - Opt. A12 - Brazil power plug (60 Hz)
- MDO3024 - Opt. A99 - No power cord
- MDO3024 - Opt. L0 - English front panel label
- MDO3024 - Opt. L1 - French front panel overlay
- MDO3024 - Opt. L2 - Italian front panel overlay
- MDO3024 - Opt. L3 - German front panel overlay
- MDO3024 - Opt. L4 - Spanish front panel overlay
- MDO3024 - Opt. L5 - Japanese front panel overlay
- MDO3024 - Opt. L6 - Portuguese front panel overlay
- MDO3024 - Opt. L7 - Simplified Chinese front panel overlay
- MDO3024 - Opt. L8 - Traditional Chinese front panel overlay
- MDO3024 - Opt. L9 - Korean front panel overlay
- MDO3024 - Opt. L10 - Russian front panel overlay
- MDO3024 - Opt. L99 - No manual, English front panel label
- MDO3024 - Opt. C3 - Calibration Service 3 Years
- MDO3024 - Opt. C5 - Calibration Service 5 Years
- MDO3024 - Opt. D1 - Calibration Data Report
- MDO3024 - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- MDO3024 - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- MDO3024 - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- MDO3024 - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- MDO3024 - Opt. R5 - Repair Service 5 Years (including warranty)
- MDO3024 - MDO3BW2T34 - Bandwidth upgrade from 200 MHz to 350 MHz
- MDO3024 - MDO3BW2T54 - Bandwidth upgrade from 200 MHz to 500 MHz
- MDO3024 - MDO3BW2T104 - Bandwidth upgrade from 200 MHz to 1 GHz
- MDO3024 - MDO3BW3T54 - Bandwidth upgrade from 350 MHz to 500 MHz
- MDO3024 - MDO3BW3T104 - Bandwidth upgrade from 350 MHz to 1 GHz
- MDO3024 - MDO3BW5T104 - Bandwidth upgrade from 500 MHz to 1 GHz
- MDO3024 - MDO3BND - Application module enabling all functionality of MDO3AERO, MDO3AUDIO, MDO3AUTO, MDO3COMP, MDO3EMBD, MDO3FLEX, MDO3LMT, MDO3PWR and MDO3USB in a single module
- MDO3024 - MDO3AERO - Aerospace Serial Triggering and Analysis Module (MIL-STD-1553 and ARINC-429)
- MDO3024 - MDO3AUDIO - Audio Serial Triggering and Analysis Module (I2S, LJ, RJ, and TDM)
- MDO3024 - MDO3AUTO - Automotive Serial Triggering and Analysis Module (CAN, CAN FD, and LIN)
- MDO3024 - MDO3COMP - Computer Serial Triggering and Analysis Module (RS-232/422/485/UART)
- MDO3024 - MDO3EMBD - Embedded Serial Triggering and Analysis Module (I2C and SPI)
- MDO3024 - MDO3FLEX - FlexRay Serial Triggering and Analysis Module
- MDO3024 - MDO3USB - USB Serial Triggering and Analysis Module (low-speed, full-speed, and high-speed)
- MDO3024 - MDO3PWR - Power Analysis Application Module
- MDO3024 - MDO3LMT - Limit and Mask Testing Application Module
| Model | MDO3024 |
|---|
The Tektronix MDO3024 is a 200MHz, 4-channel Mixed Domain Oscilloscope with an integrated 200MHz spectrum analyzer, offering 2.5GS/s sample rate and 10M record length. Features include customizable upgrades, automated measurements, and compliance with global safety and EMC standards.
Ideal for complex signal debugging, it supports waveform math, logic/protocol analysis, AFG, and has versatile I/O options including USB, Ethernet, VGA, and more.
Testwall can supply the used Tektronix MDO3024, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO3024.
