Tektronix MDO34
Mixed domain oscilloscope, 4 channels, 100 MHz to 1 GHz, up to 5 GS/s, integrated spectrum analyzer (3 Series MDO)
100 MHz to 1 GHz (by bandwidth option) Bandwidth
4 Number of Analog Channels
16 (optional, 3-MSO) Digital Channels
Up to 5 GS/s Sample Rate
10 M points Record Length
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz to 1 GHz (by bandwidth option) |
| Number of Analog Channels | 4 |
| Digital Channels | 16 (optional, 3-MSO) |
| Sample Rate | Up to 5 GS/s |
| Record Length | 10 M points |
| Integrated Spectrum Analyzer | 9 kHz to 1 GHz standard (9 kHz to 3 GHz with option 3-SA3) |
| Display | 11.6-inch HD (1920 x 1080) capacitive touchscreen |
| Arbitrary/Function Generator | 50 MHz (optional, 3-AFG) |
| Series | Tektronix 3 Series MDO |
Available configurations
| Model | Bandwidth | Channels |
| MDO34 3-BW-100 | 100 MHz | 4 |
| MDO34 3-BW-200 | 200 MHz | 4 |
| MDO34 3-BW-350 | 350 MHz | 4 |
| MDO34 3-BW-500 | 500 MHz | 4 |
| MDO34 3-BW-1000 | 1 GHz | 4 |
Tektronix MDO34 Options:
- MDO34 - MDO3AFG - Arbitrary function generator with 13 predefined waveforms and arbitrary waveform generation
- MDO34 - MDO3MSO - 16 digital channels; includes P6316 digital probe and accessories
- MDO34 - MDO3SA - Increase spectrum analyzer input frequency range to 9 kHz – 3 GHz and capture bandwidth to 3 GHz
- MDO34 - MDO3SEC - Enhanced instrument security to enable password protected control of turning on/off all instrument ports and instrument firmware update functionality
- MDO34 - Opt. A0 - North America power plug (115 V, 60 Hz)
- MDO34 - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- MDO34 - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- MDO34 - Opt. A3 - Australia power plug (240 V, 50 Hz)
- MDO34 - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- MDO34 - Opt. A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- MDO34 - Opt. A10 - China power plug (50 Hz)
- MDO34 - Opt. A11 - India power plug (50 Hz)
- MDO34 - Opt. A12 - Brazil power plug (60 Hz)
- MDO34 - Opt. A99 - No power cord
- MDO34 - Opt. L0 - English front panel label
- MDO34 - Opt. L1 - French front panel overlay
- MDO34 - Opt. L2 - Italian front panel overlay
- MDO34 - Opt. L3 - German front panel overlay
- MDO34 - Opt. L4 - Spanish front panel overlay
- MDO34 - Opt. L5 - Japanese front panel overlay
- MDO34 - Opt. L6 - Portuguese front panel overlay
- MDO34 - Opt. L7 - Simplified Chinese front panel overlay
- MDO34 - Opt. L8 - Traditional Chinese front panel overlay
- MDO34 - Opt. L9 - Korean front panel overlay
- MDO34 - Opt. L10 - Russian front panel overlay
- MDO34 - Opt. L99 - No manual, English front panel label
- MDO34 - Opt. C3 - Calibration Service 3 Years
- MDO34 - Opt. C5 - Calibration Service 5 Years
- MDO34 - Opt. D1 - Calibration Data Report
- MDO34 - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- MDO34 - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- MDO34 - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- MDO34 - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- MDO34 - Opt. R5 - Repair Service 5 Years (including warranty)
- MDO34 - MDO3AERO - Aerospace Serial Triggering and Analysis Module (MIL-STD-1553)
- MDO34 - MDO3AUDIO - Audio Serial Triggering and Analysis Module (I2S, LJ, RJ, TDM)
- MDO34 - MDO3AUTO - Automotive Serial Triggering and Analysis Module (CAN, LIN)
- MDO34 - MDO3COMP - Computer Serial Triggering and Analysis Module (RS-232/422/485/UART)
- MDO34 - MDO3EMBD - Embedded Serial Triggering and Analysis Module (I2C, SPI)
- MDO34 - MDO3FLEX - FlexRay Serial Triggering and Analysis Module
- MDO34 - MDO3USB - USB Serial Triggering and Analysis Module (low-speed, full-speed, high-speed)
- MDO34 - MDO3PWR - Power Analysis Application Module
- MDO34 - MDO3LMT - Limit and Mask Testing Application Module
- MDO34 - MDO3BW3T54 - Bandwidth upgrade from 350 MHz to 500 MHz (4-channel models)
- MDO34 - MDO3BW3T104 - Bandwidth upgrade from 350 MHz to 1 GHz (4-channel models)
- MDO34 - MDO3BW5T104 - Bandwidth upgrade from 500 MHz to 1 GHz (4-channel models)

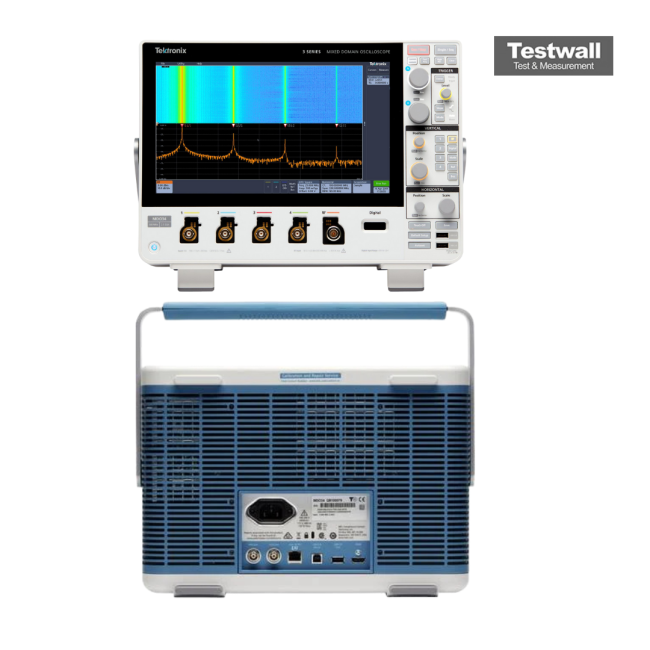

The Tektronix MDO34 is a compact 3 Series Mixed-Domain Oscilloscope offering 4 analog channels, 100 MHz to 1 GHz bandwidth, 2.5 GS/s sample rate (upgradeable to 5 GS/s), and 10M point record length. It integrates RF spectrum analysis from 9 kHz to 1 GHz (expandable to 3 GHz), logic analysis with 16 digital channels, and protocol decoding in one benchtop device.
Ideal for RF, digital, and mixed-signal system debugging, it features an 11.6″ HD touchscreen, Wave Inspector controls, and optional AFG for precise testing.
Testwall can supply the used Tektronix MDO34, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO34.
