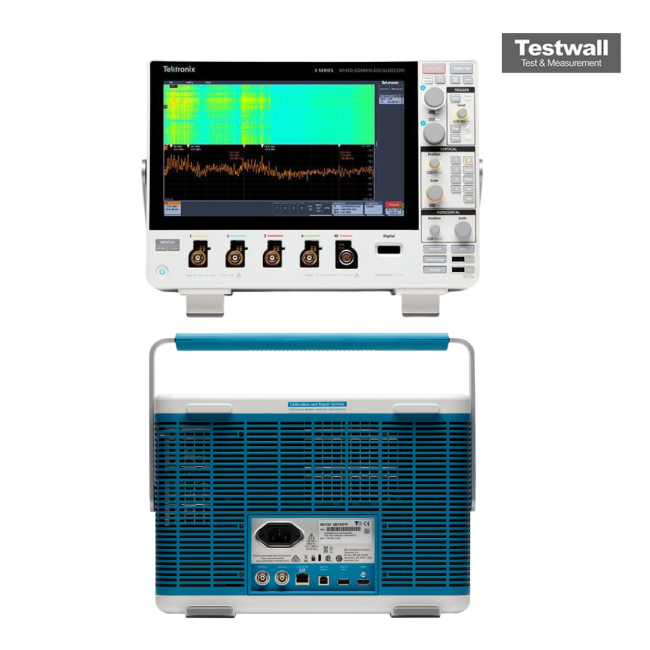

Tektronix MDO34 3-BW-500 3 Series MDO
4 Channel Mixed Domain Oscilloscope, 500 MHz
500 MHz Bandwidth
4 Analog Channels Number of Channels
2.5 GS/s Sample Rate
10 M points Record Length
12-bit ADC Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 Analog Channels |
| Sample Rate | 2.5 GS/s |
| Record Length | 10 M points |
| Vertical Resolution | 12-bit ADC |
| RF Frequency Range | 9 kHz to 1 GHz |
| Display | 11.6 inch HD (1920 x 1080) Capacitive Touchscreen |
| Waveform Capture Rate | 280,000 waveforms per second |
| Integrated Spectrum Analyzer | Yes, with RF input port and spectrogram display |
| Connectivity | USB 2.0, USB 3.0, Ethernet (LAN), Wi-Fi (optional) |
Tektronix MDO34 3-BW-500 3 Series MDO Options:
- MDO34 - 3-AFG - Arbitrary function generator with 13 predefined waveforms and arbitrary waveform generation
- MDO34 - 3-MSO - 16 digital channels; includes P6316 digital probe and accessories
- MDO34 - 3-SA1 - Spectrum analyzer; frequency range from 9 kHz to 1 GHz and capture bandwidth to 1 GHz
- MDO34 - 3-SA3 - Spectrum analyzer; frequency range from 9 kHz to 3 GHz and capture bandwidth to 3 GHz
- MDO34 - 3-SEC - Enhanced instrument security to enable password protected control of turning on/off all instrument ports and instrument firmware update functionality
- MDO34 - 3-BW-100 - 100 MHz Bandwidth for analog channels
- MDO34 - 3-BW-200 - 200 MHz Bandwidth for analog channels
- MDO34 - 3-BW-350 - 350 MHz Bandwidth for analog channels
- MDO34 - 3-BW-500 - 500 MHz Bandwidth for analog channels
- MDO34 - 3-BW-1000 - 1 GHz Bandwidth for analog channels
- MDO34 - 3-BND - Adds an application bundle (includes all serial options and power analysis option)
- MDO34 - 3-SRAERO - Adds aerospace serial triggering and analysis (MIL-STD-1553, ARINC429)
- MDO34 - 3-SRAUDIO - Adds audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- MDO34 - 3-SRAUTO - Adds automotive serial triggering and analysis (CAN, CAN FD, LIN, FlexRay)
- MDO34 - 3-SRCOMP - Adds computer serial triggering and analysis (RS-232/422/485/UART)
- MDO34 - 3-SREMBD - Adds embedded serial triggering and analysis (I2C, SPI)
- MDO34 - 3-SRUSB2 - Adds USB serial triggering and analysis (USB 2.0 LS, FS, HS)
- MDO34 - 3-PWR - Adds power measurement and analysis
- MDO34 - Opt. A0 - North America power plug (115 V, 60 Hz)
- MDO34 - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- MDO34 - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- MDO34 - Opt. A3 - Australia power plug (240 V, 50 Hz)
- MDO34 - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- MDO34 - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- MDO34 - Opt. A10 - China power plug (50 Hz)
- MDO34 - Opt. A11 - India power plug (50 Hz)
- MDO34 - Opt. A12 - Brazil power plug (60 Hz)
- MDO34 - Opt. A99 - No power cord
- MDO34 - Opt. C3 - Calibration Service 3 Years
- MDO34 - Opt. C5 - Calibration Service 5 Years
- MDO34 - Opt. D1 - Calibration Data Report
- MDO34 - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- MDO34 - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- MDO34 - Opt. R5 - Repair Service 5 Years (including warranty)
- MDO34 - Opt. T3 - Three Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance
- MDO34 - Opt. T5 - Five Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance
- MDO34 - Opt. L99 - No manual
| Model | MDO34 |
|---|
The Tektronix MDO34 3-BW-500 is a 4-channel Mixed Domain Oscilloscope with 500 MHz bandwidth, 2.5 GS/s sampling rate, and a standard 1 GHz spectrum analyzer upgradeable to 3 GHz. It offers 10 M record length, >280,000 wfm/s capture rate, and 8-bit resolution.
Ideal for embedded design, power analysis, education, manufacturing testing, and maintenance. Combines analog, digital, and RF capabilities in a compact, touch-enabled instrument.
Testwall can supply the used Tektronix MDO34 3-BW-500, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO34 3-BW-500.
