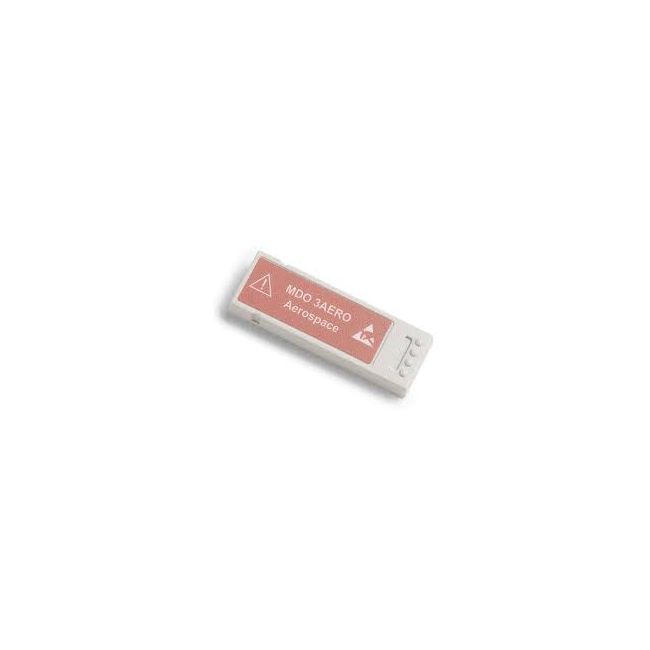

Tektronix MDO3AERO
| Attribute | Value |
|---|---|
| Compatible Oscilloscope Series | MDO3000 Series |
| Application Module Type | Aerospace and Defense Serial Triggering and Analysis Module |
| Supported Serial Buses | MIL-STD-1553, ARINC 429 |
| MIL-STD-1553 Triggering | Sync, Command/Status Word, Data Word, Remote Terminal Address, Bus Error |
| ARINC 429 Triggering | Label, Data, Word, Error |
| Decode Capabilities | Bus activity decoded and displayed as a color-coded overlay on the waveform |
| Search Functionality | Automated search across acquired data for user-defined events on MIL-STD-1553 and ARINC 429 buses |
| Module Interface | Application module slot on MDO3000 Series oscilloscope |
| License Type | Hardware application module (plug-in) |
| Packet Decode Display | Tabular decode results with timestamp, allowing navigation between decoded packets and waveform |
Tektronix MDO3AERO Options:
- MDO3AERO - Opt. C3 - Calibration Service 3 Years
- MDO3AERO - Opt. C5 - Calibration Service 5 Years
- MDO3AERO - Opt. D1 - Calibration Data Report
- MDO3AERO - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- MDO3AERO - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- MDO3AERO - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- MDO3AERO - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- MDO3AERO - Opt. R5 - Repair Service 5 Years (including warranty)
| Model | MDO3AERO |
|---|
The Tektronix MDO3AERO is a dedicated application module for MDO3000 oscilloscopes, engineered to support MIL‑STD‑1553 protocol with advanced serial bus triggering, decoding, and analysis. It enables packet-level inspection and real-time monitoring of address, command, status, data words, and error types within aerospace communication systems.
Users can scan large waveform captures, export decoded data to CSV, and view timestamped event logs for deep analysis. Compatible with Tektronix MDO3000 series, it integrates directly into one module slot.
Testwall can supply the used Tektronix MDO3AERO, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO3AERO.
