Tektronix

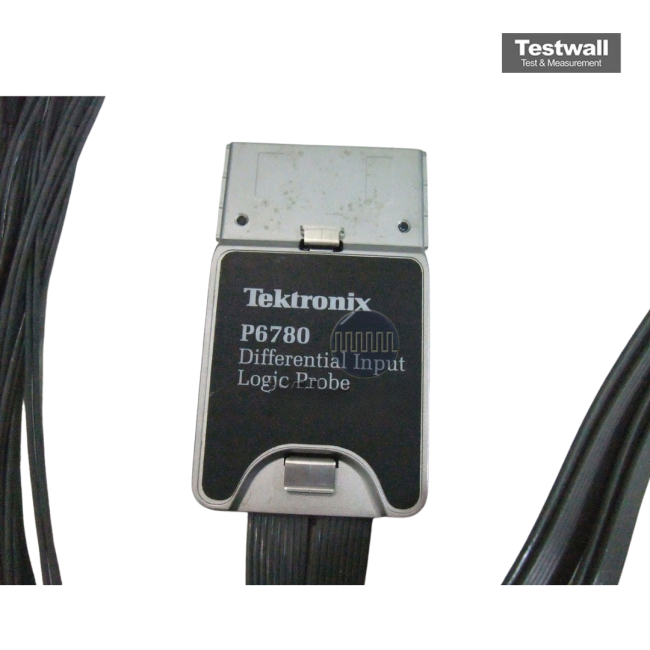

Tektronix P6780
General Purpose Logic Probe, 17 Ch., for MSO70000 series
Tektronix TLA7000 Series Logic Analyzers Compatibility
34 Channels Number of Channels
300 MHz State Clock Rate Maximum Input Frequency
-2.0 V to +4.0 V Threshold Range
100 kΩ ± 2% in parallel with 8 pF typical Input Impedance
| Attribute | Value |
|---|---|
| Compatibility | Tektronix TLA7000 Series Logic Analyzers |
| Number of Channels | 34 Channels |
| Maximum Input Frequency | 300 MHz State Clock Rate |
| Threshold Range | -2.0 V to +4.0 V |
| Input Impedance | 100 kΩ ± 2% in parallel with 8 pF typical |
| Maximum Input Voltage | ±15 V (DC + Peak AC) |
| Probe Type | Logic Analyzer Probe / Flying Lead Probe |
| Cable Length | 1.8 m (6 ft) |
| Connector Type | Mictor 38-Pin Connector Compatible |
| Operating Temperature | 0°C to +50°C |
Tektronix P6780 Options:
- P6780 - C3 - Calibration Service 3 Years
- P6780 - C5 - Calibration Service 5 Years
- P6780 - R3 - Repair Service 3 Years (including warranty)
- P6780 - R5 - Repair Service 5 Years (including warranty)
- P6780 - R1PW - Repair Service Coverage 1 Year Post Warranty
- P6780 - R2PW - Repair Service Coverage 2 Years Post Warranty
- P6780 - R3DW - Repair Service Coverage 3 Years (including product warranty period). 3-year period starts at time of instrument purchase
- P6780 - R5DW - Repair Service Coverage 5 Years (including product warranty period). 5-year period starts at time of instrument purchase
- P6780 - G3 - Complete Care 3 Years (includes loaner, scheduled calibration and more)
- P6780 - G5 - Complete Care 5 Years (includes loaner, scheduled calibration and more)
| Model | P6780 |
|---|
The Tektronix P6780 logic probe provides 17 channels (16 data, 1 clock/data) and supports bandwidths up to 2.5 GHz for accurate, high-speed digital signal measurements on MSO70000 Series oscilloscopes.
Each lead set includes positive and negative inputs for flexible test point connection. With D-Max® contact technology, it ensures secure PCB attachment without onboard connectors.
Testwall can supply the used Tektronix P6780, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6780.
