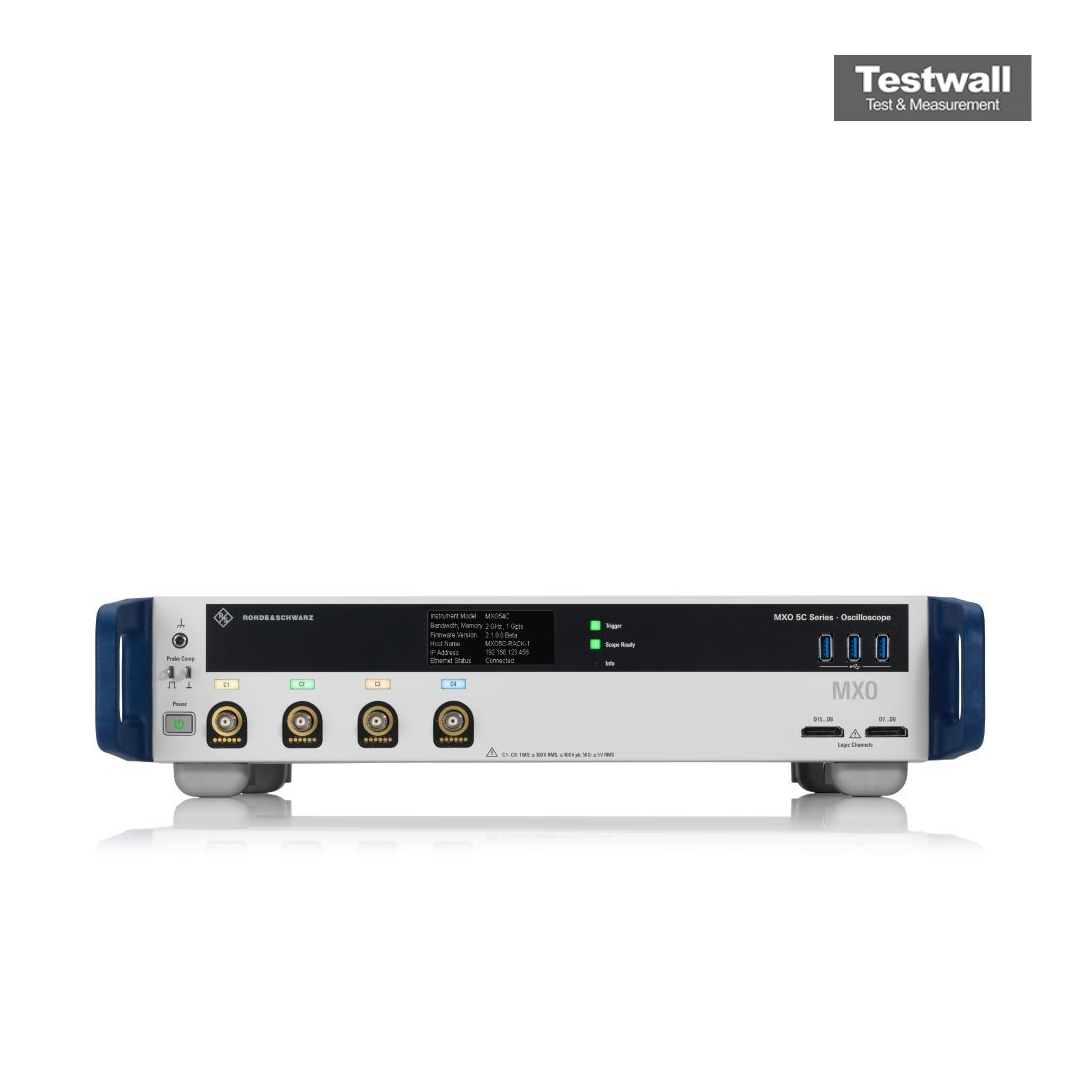

Rohde & Schwarz MXO54C
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz – 2 GHz |
| Number of Channels | 4 analog |
| Sample Rate | Up to 5 GS/s |
| Memory Depth | 500 Mpoints/ch (1 Gpoint optional) |
| Vertical Resolution | 12-bit (18-bit in HD mode) |
| Bandwidth Options | 350 MHz, 500 MHz, 1 GHz, 2 GHz |
| Digital Channels | 16 with MSO option MXO5C-B1 |
| Form Factor | 2U compact / rack-mount, 8.7 kg |
| Waveform Update Rate | > 4,500,000 waveforms per second |
| Display | No built-in display; e-ink status display, HDMI and DisplayPort for an external monitor |
| Arbitrary Waveform Generator | Optional 2-channel, 100 MHz generator (MXO5C-B6) |
| Connectivity | 5x USB 3.1 Type A, USB 3.1 Type B, LAN (1 Gbit/s), HDMI, DisplayPort |
| Series | Rohde & Schwarz MXO 5C |
Available configurations
| Model | Bandwidth | Channels |
| MXO54C-350 | 350 MHz | 4 |
| MXO54C-500 | 500 MHz | 4 |
| MXO54C-1000 | 1 GHz | 4 |
| MXO54C-2000 | 2 GHz | 4 |
Rohde & Schwarz MXO54C Options:
- MXO54C - MXO5C-B245 - Bandwidth upgrade to 500 MHz
- MXO54C - MXO5C-B2410 - Bandwidth upgrade to 1 GHz
- MXO54C - MXO5C-B2420 - Bandwidth upgrade to 2 GHz
- MXO54C - MXO5C-B1 - Mixed signal option, 16 digital channels
- MXO54C - MXO5C-B6 - Arbitrary waveform generator, 2 channels, 100 MHz
- MXO54C - MXO5C-B110 - Memory upgrade to 1 Gpoint per channel
The Rohde & Schwarz MXO54C is the 4-channel model of the MXO 5C Series, a compact 2U version of the MXO 5 without a built-in display, designed for racks and automated test systems. It keeps the MXO 5 performance: more than 4.5 million waveforms per second, a 12-bit ADC at all sample rates (up to 18-bit in HD mode), up to 5 GS/s and 500 Mpoints of memory per channel. It is operated over LAN or with an external monitor via HDMI or DisplayPort, and has a small e-ink display showing IP address, firmware and installed options.
Bandwidth on the MXO 5C is set by software licence, so the MXO54C can be supplied at 350 MHz, 500 MHz, 1 GHz or 2 GHz (upgrade options MXO5C-B245 to MXO5C-B2420). It can also be fitted with 16 digital channels (MXO5C-B1), a 2-channel 100 MHz arbitrary waveform generator (MXO5C-B6) and a 1 Gpoint memory upgrade (MXO5C-B110). Tell us the bandwidth and options you need when you request a quote.
Testwall can supply the used Rohde & Schwarz MXO54C, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Rohde & Schwarz MXO54C.
