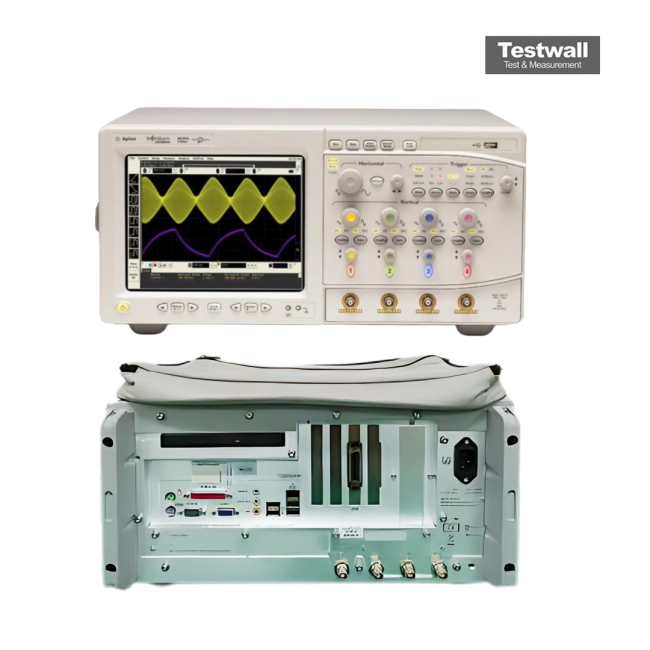

Keysight (Agilent) DSO81304A
| Attribute | Value |
|---|---|
| Bandwidth | 13 GHz |
| Number of Channels | 4 |
| Sample Rate | 40 GSa/s (single channel), 20 GSa/s (all channels) |
| Memory Depth | Up to 1 Gpts (with option) |
| Vertical Resolution | 8-bit (up to 12-bit with averaging) |
| Rise Time | 26.9 ps |
| Input Impedance | 50 Ω |
| Display | 12.1-inch XGA color display (1024 x 768) |
| Timebase Range | 20 ps/div to 20 s/div |
| Operating System | Windows XP Professional |
Keysight (Agilent) DSO81304A Options:
- DSO81304A - 001 - 2 M (2 channels), 1 M (4 channels) memory upgrade; 64 M (2 channels at 4 GSa/s) or 32 M (4 channels ≤ 2 GSa/s)
- DSO81304A - 002 - EZJIT jitter analysis software (installed at the factory)
- DSO81304A - 003 - High-Speed Serial Data Analysis/Mask Testing with clock recovery and 8b/10b decoding (installed at the factory)
- DSO81304A - 004 - EZJIT Plus jitter analysis software (installed at the factory)
- DSO81304A - 005 - Noise reduction software (installed at the factory); included standard for DSO81304A
- DSO81304A - 006 - My Infiniium Integration Package (installed at the factory)
- DSO81304A - 017 - 20 Gb removable hard disk drive; replaces internal hard disk with a removable hard disk
- DSO81304A - 021 - Low-Speed Serial Data Analysis (installed at the factory)
- DSO81304A - 1CM - Rack-mount kit (E2609B)
- DSO81304A - A6J - ANSI Z540-compliant calibration
| Model | DSO81304A |
|---|
The Keysight (Agilent) DSO81304A is a 13-GHz bandwidth, 4-channel oscilloscope offering up to 40 GSa/s sampling and 64 Mpts deep memory. It supports ultra-fast signal analysis with the InfiniiMax II 1169A probe, providing up to 13 GHz bandwidth and unmatched signal fidelity. Designed for applications like PCI Express, SATA, Fibre Channel, and more, it offers the industry's lowest jitter and noise floors, ensuring precision and accuracy.
This oscilloscope supports advanced jitter analysis, compliance tests for USB, SATA, PCIe, and offers numerous software options to expand its utility in high-speed digital design environments.
Testwall can supply the used Keysight (Agilent) DSO81304A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO81304A.
