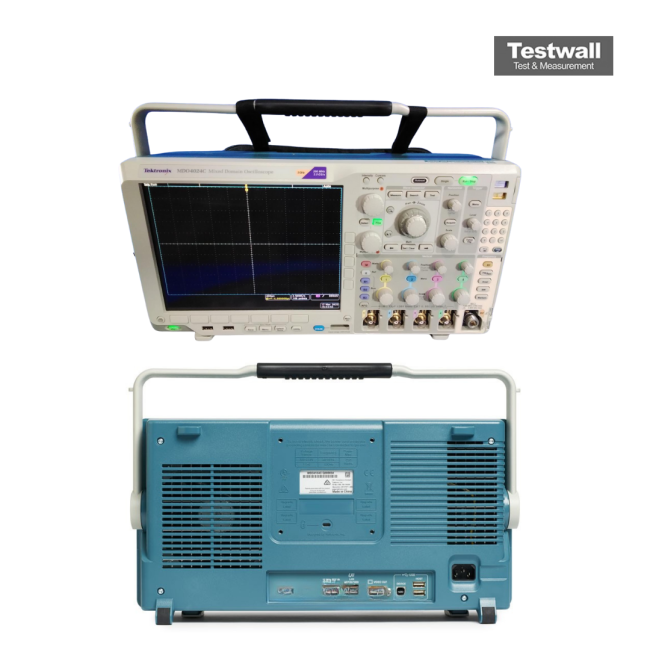

Tektronix MDO4024C
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Analog Channels | 4 |
| Sample Rate | 2.5 GS/s |
| Record Length | 20 M points |
| Integrated Spectrum Analyzer Frequency Range | 9 kHz to 3 GHz |
| Digital Channels | 16 (with optional logic probe) |
| Display | 9-inch (228 mm) WVGA color display |
| Vertical Resolution | 8-bit (11-bit in Hi Res mode) |
| Waveform Capture Rate | Up to 340,000 waveforms per second |
| Integrated Arbitrary Function Generator (AFG) Output | 1 channel, 50 MHz sine wave output |
Tektronix MDO4024C Options:
- MDO4024C - MDO4AFG - Arbitrary function generator with 13 predefined waveforms and arbitrary waveform generation
- MDO4024C - MDO4MSO - 16 digital channels; includes P6616 digital probe and accessories
- MDO4024C - SA3 - Integrated spectrum analyzer with frequency range of 9 kHz to 3 GHz
- MDO4024C - SA6 - Integrated spectrum analyzer with frequency range of 9 kHz to 6 GHz
- MDO4024C - MDO4SEC - Enhanced instrument security to enable password protected control of turning on/off all instrument ports and instrument firmware update functionality
- MDO4024C - A0 - North America power plug (115 V, 60 Hz)
- MDO4024C - A1 - Universal Euro power plug (220 V, 50 Hz)
- MDO4024C - A2 - United Kingdom power plug (240 V, 50 Hz)
- MDO4024C - A3 - Australia power plug (240 V, 50 Hz)
- MDO4024C - A5 - Switzerland power plug (220 V, 50 Hz)
- MDO4024C - A6 - Japan power plug (100 V, 50/60 Hz)
- MDO4024C - A10 - China power plug (50 Hz)
- MDO4024C - A11 - India power plug (50 Hz)
- MDO4024C - A12 - Brazil power plug (60 Hz)
- MDO4024C - A99 - No power cord
- MDO4024C - L0 - English front panel label
- MDO4024C - L1 - French front panel overlay
- MDO4024C - L2 - Italian front panel overlay
- MDO4024C - L3 - German front panel overlay
- MDO4024C - L4 - Spanish front panel overlay
- MDO4024C - L5 - Japanese front panel overlay
- MDO4024C - L6 - Portuguese front panel overlay
- MDO4024C - L7 - Simplified Chinese front panel overlay
- MDO4024C - L8 - Traditional Chinese front panel overlay
- MDO4024C - L9 - Korean front panel overlay
- MDO4024C - L10 - Russian front panel overlay
- MDO4024C - C3 - Calibration Service 3 Years
- MDO4024C - C5 - Calibration Service 5 Years
- MDO4024C - D1 - Calibration Data Report
- MDO4024C - D3 - Calibration Data Report 3 Years (with Opt. C3)
- MDO4024C - D5 - Calibration Data Report 5 Years (with Opt. C5)
- MDO4024C - R5 - Repair Service 5 Years (including warranty)
- MDO4024C - T3 - Three year total protection plan ensures that your equipment remains like-new regardless of what happens
- MDO4024C - T5 - Five year total protection plan ensures that your equipment remains like-new regardless of what happens
| Model | MDO4024C |
|---|
The Tektronix MDO4024C is a 6-in-1 integrated oscilloscope featuring 4 analog channels, 200 MHz bandwidth, and up to 2.5 GS/s sample rate. It offers 20 Mpoint record length, integrated spectrum analyzer (up to 6 GHz), logic analyzer, arbitrary/function generator, protocol analyzer, and digital voltmeter/frequency counter. Advanced tools like Wave Inspector®, FastAcq, and SignalVu-PC enhance signal diagnostics.
Perfect for EMI troubleshooting and wireless module integration, the MDO4024C offers unparalleled signal analysis with its wide bandwidth and synchronized acquisition. Fully customizable and upgradable to meet evolving test needs.
Testwall can supply the used Tektronix MDO4024C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO4024C.
