Tektronix MDO4034B-3
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz |
| Number of Analog Channels | 4 |
| Sample Rate | 2.5 GS/s |
| Record Length | 20 M points |
| Integrated Spectrum Analyzer RF Bandwidth | 3 GHz |
| Vertical Resolution | 8 bits |
| Digital Channels | 16 (with optional logic analyzer probe) |
| Display | 9 inch (228 mm) TFT color display, 800 x 480 resolution |
| Waveform Capture Rate | 280,000 waveforms per second |
| Serial Bus Triggering and Analysis | Supports I2C, SPI, USB, CAN, LIN, RS-232/422/485/UART, MIL-STD-1553, and more |
Tektronix MDO4034B-3 Options:
- MDO4034B-3 - A0 - North America power plug (115 V, 60 Hz)
- MDO4034B-3 - A1 - Universal Euro power plug (220 V, 50 Hz)
- MDO4034B-3 - A2 - United Kingdom power plug (240 V, 50 Hz)
- MDO4034B-3 - A3 - Australia power plug (240 V, 50 Hz)
- MDO4034B-3 - A5 - Switzerland power plug (220 V, 50 Hz)
- MDO4034B-3 - A6 - Japan power plug (100 V, 50/60 Hz)
- MDO4034B-3 - A10 - China power plug (50 Hz)
- MDO4034B-3 - A11 - India power plug (50 Hz)
- MDO4034B-3 - A12 - Brazil power plug (60 Hz)
- MDO4034B-3 - A99 - No power cord
- MDO4034B-3 - L0 - English manual
- MDO4034B-3 - L1 - French manual
- MDO4034B-3 - L2 - Italian manual
- MDO4034B-3 - L3 - German manual
- MDO4034B-3 - L4 - Spanish manual
- MDO4034B-3 - L5 - Japanese manual
- MDO4034B-3 - L6 - Portuguese manual
- MDO4034B-3 - L7 - Simplified Chinese manual
- MDO4034B-3 - L8 - Traditional Chinese manual
- MDO4034B-3 - L9 - Korean manual
- MDO4034B-3 - L10 - Russian manual
- MDO4034B-3 - L99 - No manual
- MDO4034B-3 - C3 - Calibration Service 3 Years
- MDO4034B-3 - C5 - Calibration Service 5 Years
- MDO4034B-3 - D1 - Calibration Data Report
- MDO4034B-3 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- MDO4034B-3 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- MDO4034B-3 - G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- MDO4034B-3 - G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- MDO4034B-3 - R5 - Repair Service 5 Years (including warranty)
- MDO4034B-3 - SILV900 - Standard warranty extended to 5 years
- MDO4034B-3 - DPO4BND - Application bundle module enabling all functionality of DPO4AERO, DPO4AUDIO, DPO4AUTO, DPO4COMP, DPO4EMBD, DPO4ENET, DPO4LMT, DPO4PWR, DPO4USB and DPO4VID application modules
- MDO4034B-3 - DPO4AERO - Aerospace Serial Triggering and Analysis Module (MIL-STD-1553)
- MDO4034B-3 - DPO4AUDIO - Audio Serial Triggering and Analysis Module (I2S, LJ, RJ, TDM)
- MDO4034B-3 - DPO4AUTO - Automotive Serial Triggering and Analysis Module (CAN, LIN)
- MDO4034B-3 - DPO4AUTOMAX - Extended Automotive Serial Triggering and Analysis Module (CAN, LIN, FlexRay)
- MDO4034B-3 - DPO4COMP - Computer Serial Triggering and Analysis Module (RS-232/422/485/UART)
- MDO4034B-3 - DPO4EMBD - Embedded Serial Triggering and Analysis Module (I2C, SPI)
- MDO4034B-3 - DPO4ENET - Ethernet Serial Triggering and Analysis Module (10BASE-T, 100BASE-TX)
- MDO4034B-3 - DPO4USB - USB Serial Triggering and Analysis Module (low-speed, full-speed, high-speed)
- MDO4034B-3 - DPO4PWR - Power Analysis Application Module
- MDO4034B-3 - DPO4LMT - Limit and Mask Testing Application Module
- MDO4034B-3 - DPO4VID - HDTV and Custom (nonstandard) Video Triggering and Video Picture Module
- MDO4034B-3 - MDO4TRIG - Advanced RF Power Level Triggering Module
| Model | MDO4034B-3 |
|---|

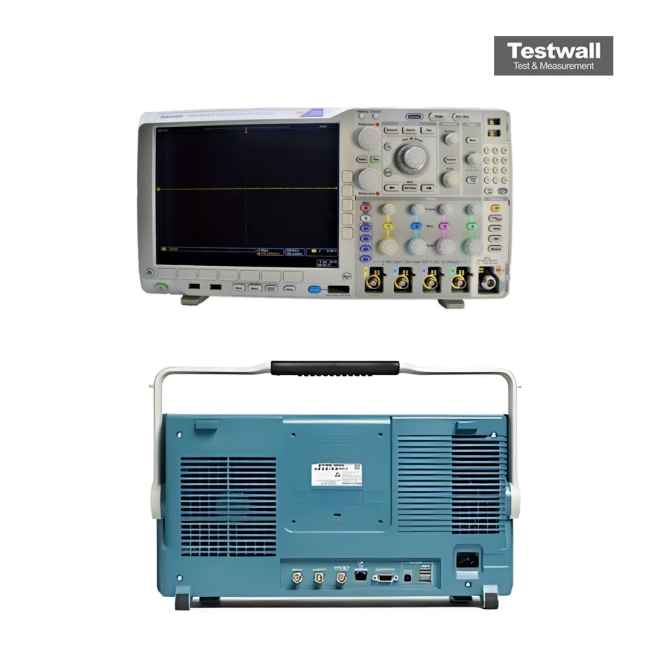

The Tektronix MDO4034B-3 Mixed Domain Oscilloscope features 4 analog channels with 350 MHz bandwidth and 1 ns rise time, offering 2.5 GS/s sample rate across all channels and 20M record length. It integrates a 16-channel logic analyzer, a spectrum analyzer covering 9 kHz to 3 GHz, and protocol analysis into one synchronized instrument. This allows engineers to analyze signal behavior in both time and frequency domains with precision and efficiency.
Ideal for solving complex design issues, the MDO4034B-3 helps visualize RF spectrum variations over time and device states in a single device, making it an essential tool for embedded system validation.
Testwall can supply the used Tektronix MDO4034B-3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO4034B-3.
