Hameg

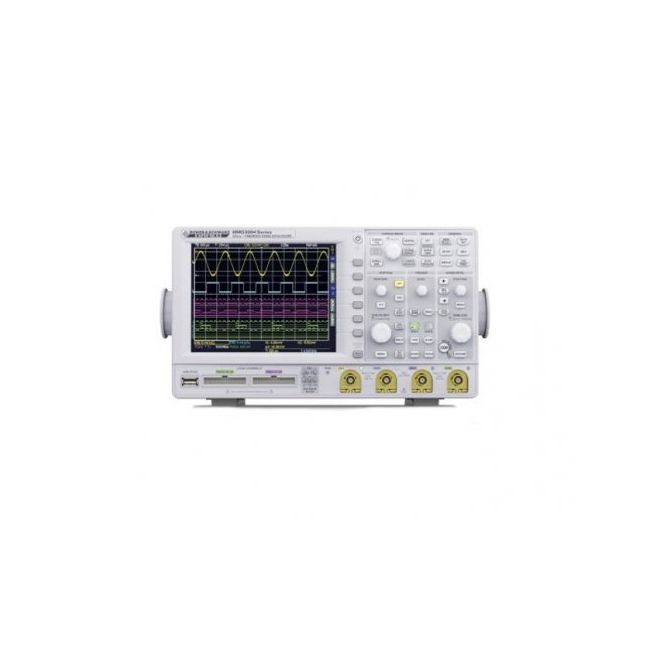

Hameg HMO3042 Digital Oscilloscope
300 MHz Bandwidth
2 Number of Channels
2 GSa/s Sample Rate
2 Mpts per channel Memory Depth
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 300 MHz |
| Number of Channels | 2 |
| Sample Rate | 2 GSa/s |
| Memory Depth | 2 Mpts per channel |
| Vertical Resolution | 8-bit |
| Display | 6.5-inch VGA color LCD (640 x 480 pixels) |
| Time Base Range | 1 ns/div to 50 s/div |
| Input Impedance | 1 MΩ / 13 pF |
| Interfaces | USB, Ethernet (LAN), RS-232 |
| Power Supply | 100–240 V AC, 50/60 Hz |
Hameg HMO3042 Digital Oscilloscope Options:
- HMO3042 - HOO10 - Analysis of I²C, SPI and UART/RS-232 signals on analog and logic channels
- HMO3042 - HOO11 - Analysis of I²C, SPI and UART/RS-232 signals on all analog channels
- HMO3042 - HOO12 - Analysis of CAN and LIN signals on analog and logic channels
- HMO3042 - HOO14 - Segmented Memory (acquisition memory divided into up to 1000 segments, 200,000 Wfm/s)
- HMO3042 - HV452 - Bandwidth upgrade from 400MHz to 500MHz (2 channel)
- HMO3042 - HV114 - Upgrade voucher for Segmented Memory option HOO14
- HMO3042 - HO720 - USB-Device/RS-232 dual interface card
- HMO3042 - HO740 - IEEE-488 (GPIB) interface card, galvanically isolated
- HMO3042 - HO3508 - Logic probe with 8 channels (required for MSO functionality)
- HMO3042 - HO3516 - Logic probe double pack with 16 channels (required for MSO functionality)
| Model | HMO3042 |
|---|
The HMO3042 400 MHz 2 channel oscilloscope offers excellent performance at an attractive price. The standard MSO functionality allows you to analyse along all channels plus up to an additional 16 digital channels. Offers hardware-accelerated signal triggering and decoding for all protcols.
Key Features
- 4 Gsample/s realtime sampling rate, low-noise flash A/D converter
- 8 Mpoint memory, zoom up to 200 000:1
- Automatically or manually adjustable memory depth
- Segmented memory option (HOO14)
- MSO functionality included as standard (HO3508/HO3516 logic probe with 8/16 logic channels required)
- Vertical sensitivity down to 1 mV/div
- Trigger modes: slope (A/B), pulse width, video, logic, serial buses (optional), hold-off
- Serial bus trigger and hardware-accelerated decode including list view options: I2C + SPI + UART/RS-232 (HOO10/HOO11), CAN + LIN (HOO12)
